Description
Vizrt TriCaster Vizion Overview
Tuesday Tutorial : Setting up TriCaster Vizion Sessions
Tuesday Tutorial : Using TriCaster Vizion Input Setup
Tuesday Tutorial : Configuring TriCaster Vizion I/O

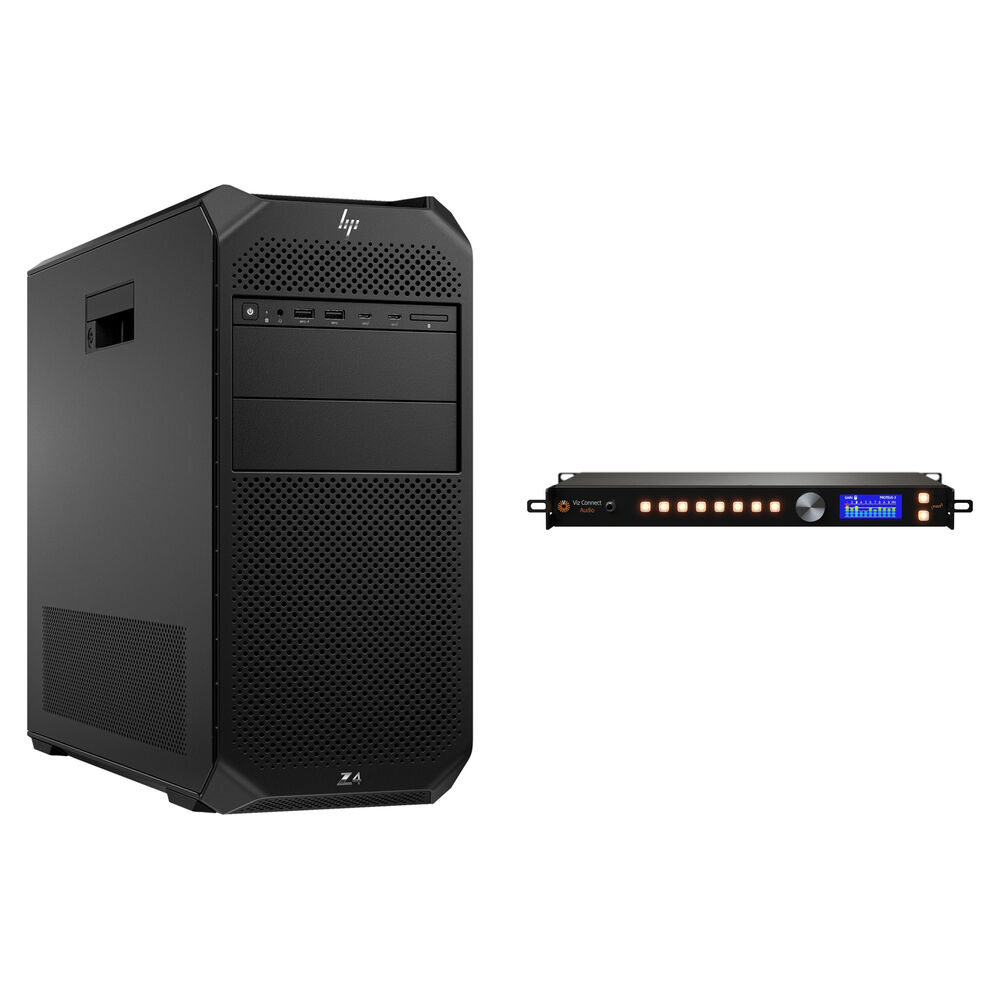

The Vizrt TriCaster Vizion Tower Bundle from equips you with a simultaneous-input NDI switcher in a tower housing and a Connect Audio Interface with analog and NDI connectivity. Facilitate NDI video and audio mixing in broadcast production applications.
Vizrt TriCaster Vizion Tower with 44 NDI Inputs and 16 SDI I/O (1-Year Standard Support, 3-Year Viz Flowics)
Versatile Video Production
Future proof your video switching and streaming with the
TriCaster Vizion Tower with 44 NDI Inputs and 16 SDI Inputs/Outputs from
Vizrt. The powerful Vizion switcher offers the latest IP workflows, Viz Flowics-powered graphics, and a variety of editing and effects tools. Ideal for live events, sports, and multi-camera broadcasting, this switcher supports up to UHD 4K60 video and up to 2 UHD 4K or 8 HD video mix outputs with a total of 56 HD outputs, including a teleprompter, user interface, and multiview outputs. This tower unit incorporates an SDI card with 16 configurable input/output ports.
Includes Viz Flowics
- Includes three years of cloud native Viz Flowics Basic.
- Viz Flowics includes a 5 GB library.
- Customize your video content with real-time data featuring no-code connectors.
- Generate live, animated HTML5 graphics.
- Use your web browser to control your video playout.
Basic Support
- Includes one-year basic support plan.
- Access Viz University, community forums, knowledge base, and more.
- Normal <24 hours, <8 hours high, and <4 hours critical response times.
AI-Powered Tools
- Future-proof tools like 4 media players, 8 mix effects, LiveMatte, LiveSet, DataLink, and Live Call Connect use AI to help you create engaging content.
- 15 media buffers include five graphic and 10 animation buffers with GIF support.
- Network audio features include native NDI audio and output.
- Dante and AES67 support are available via separate licenses.
12G/3G/HD-SDI Input/Output
- Supports up to 12G-SDI SMPTE ST 2082 video.
- Genlock support for bi-level or trilevel reference signals.
- Embedded SDI audio input and output.
UPC: 198415709387

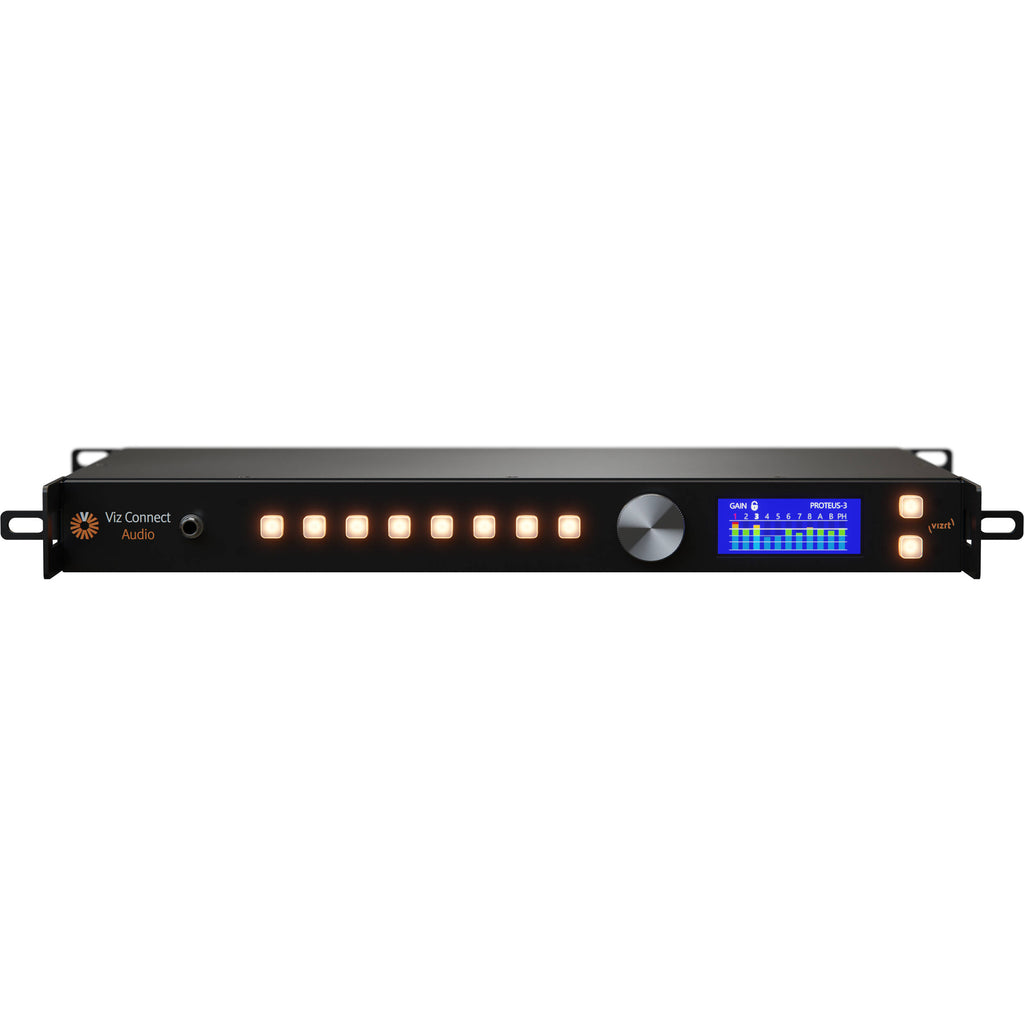

Vizrt Viz Connect Audio 8x4 Analog/NDI I/O Converter with Control & Monitoring
Convert and monitor analog audio signals on your NDI network with the Viz Connect Audio 8x4 Analog/NDI I/O Converter with Control & Monitoring from Vizrt. The Viz Connect Audio features eight XLR-1/4" combo analog mono inputs that allows you to convert to NDI for monitoring and connection on your NDI network.
There are also four XLR outputs to convert or pass through analog audio to speakers or a mixer. You can control and monitor the audio and configure the unit via the built-in web GUI. Other features include phantom power, NDI grouping, solo monitoring, selectable mic/line input, and gain control.
Connectivity
Viz Connect Audio features 8 analog inputs via a combination of 1/4", XLR Line, or mic inputs as well as NDI connectivity. There are also headphone connections and up to four XLR analog outputs. Using the integrated NDI Bridge, Viz Connect Audio offers limitless connectivity from the server room to a TriCaster across the globe.
Monitoring
Whether your audio is already streaming on your NDI network or coming from one of the many physical connections, Viz Connect Audio offers visibility info every audio stream on your network.
Control
Directly select Mic or Line level, phantom power on/off, solo, gain control, and NDI grouping control from the device front panel or via the WebUI.
Quick Features
- Eight mono analog inputs via XLR-1/4� combo connectors
- 48 kHz 32-bit floating point NDI conversion
- Gain setting per channel
- Phantom power on/off per channel
- Line/mic setting per channel
- Global SMPTE/EBU setting
- Four mono outputs via XLR
- Headphone jack with solo
- LED indicators for phantom, mic/line, and solo status
- Front-panel and WebUI control
Items Included
- Vizrt TriCaster Vizion Tower with 44 NDI Inputs and 16 SDI I/O (1-Year Standard Support, 3-Year Viz Flowics)
- 1-Year Basic Support
- 1-Year Basic Support
- Limited 3-Year Manufacturer Warranty
- Vizrt Viz Connect Audio 8x4 Analog/NDI I/O Converter with Control & Monitoring
- Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vizrt TriCaster Vizion Specs
General
| Compatibility |
Not Specified by Manufacturer
|
Inputs/Outputs
| USB I/O |
4 x USB-A Female Input
|
| Audio I/O |
8x Combo XLR-1/4" Line/Mic Input
4x XLR 3-Pin Output 1x 1/4" Headphone Output |
| Other I/O |
1 x RJ45 NDI/LAN
|
| Phantom Power |
Yes
|
| Display |
Yes, Front LCD
|
Power
| Power Source |
AC Input
|
Physical
| Mounting |
1x Rackmount Bracket System
|
| Color |
Black
|
Packaging Info
| Package Weight |
10.575 lb
|
| Box Dimensions (LxWxH) |
23.6 x 15.6 x 7.4"
|
