Description

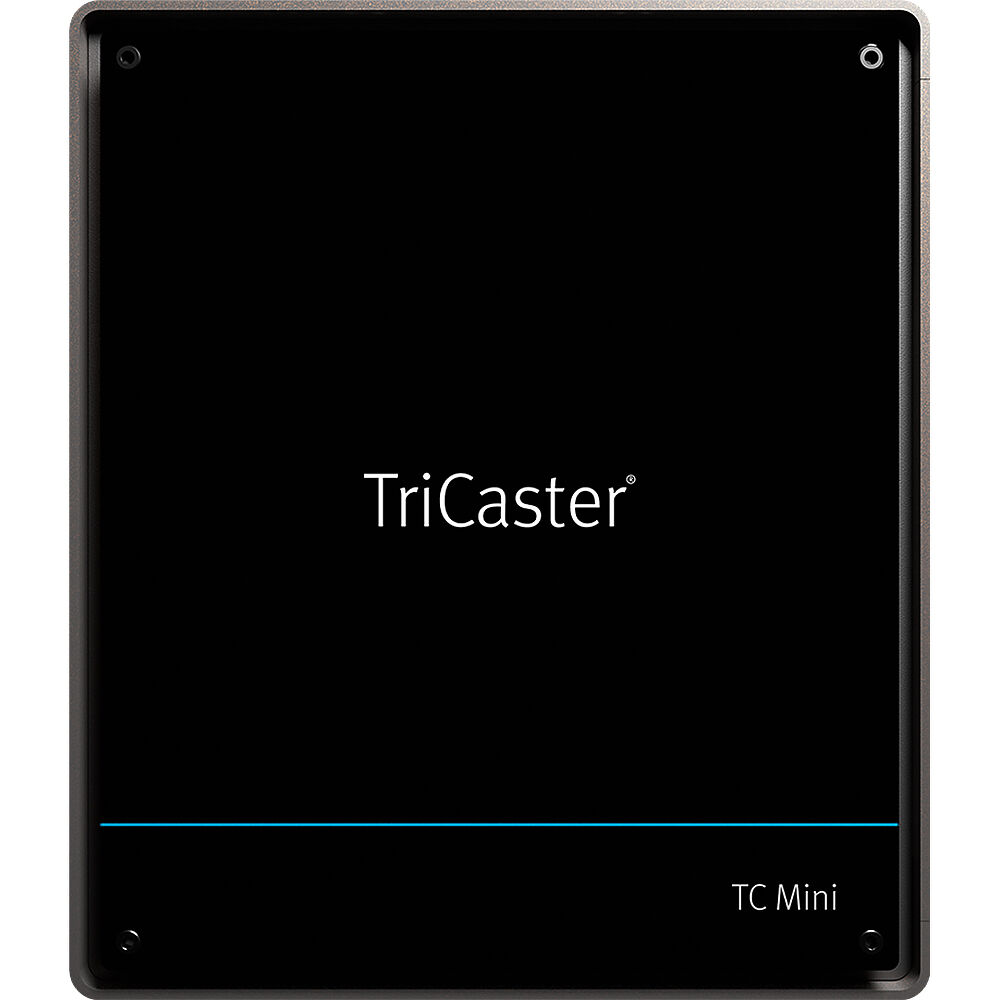

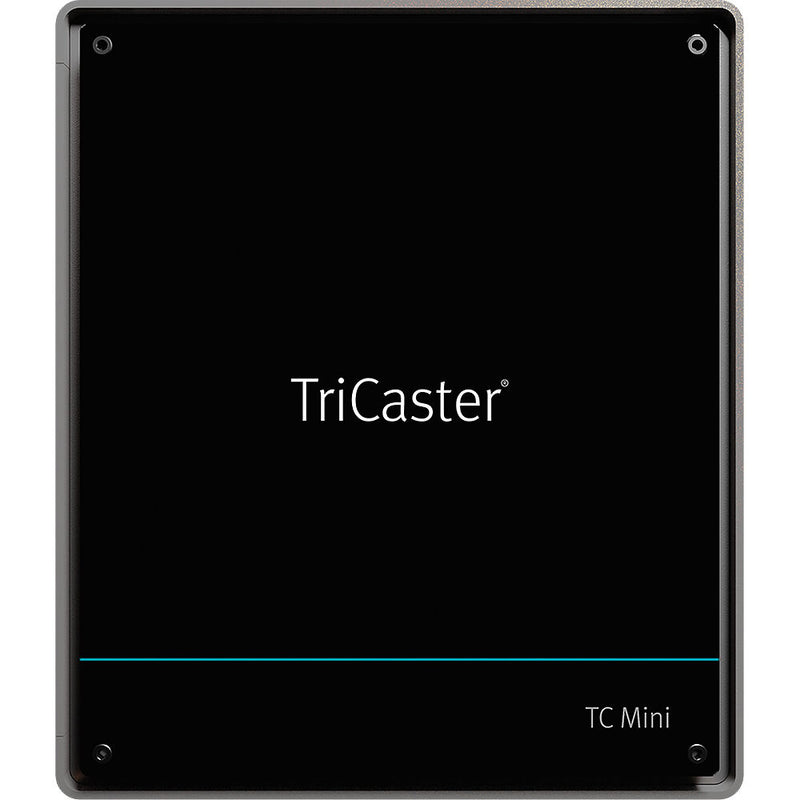

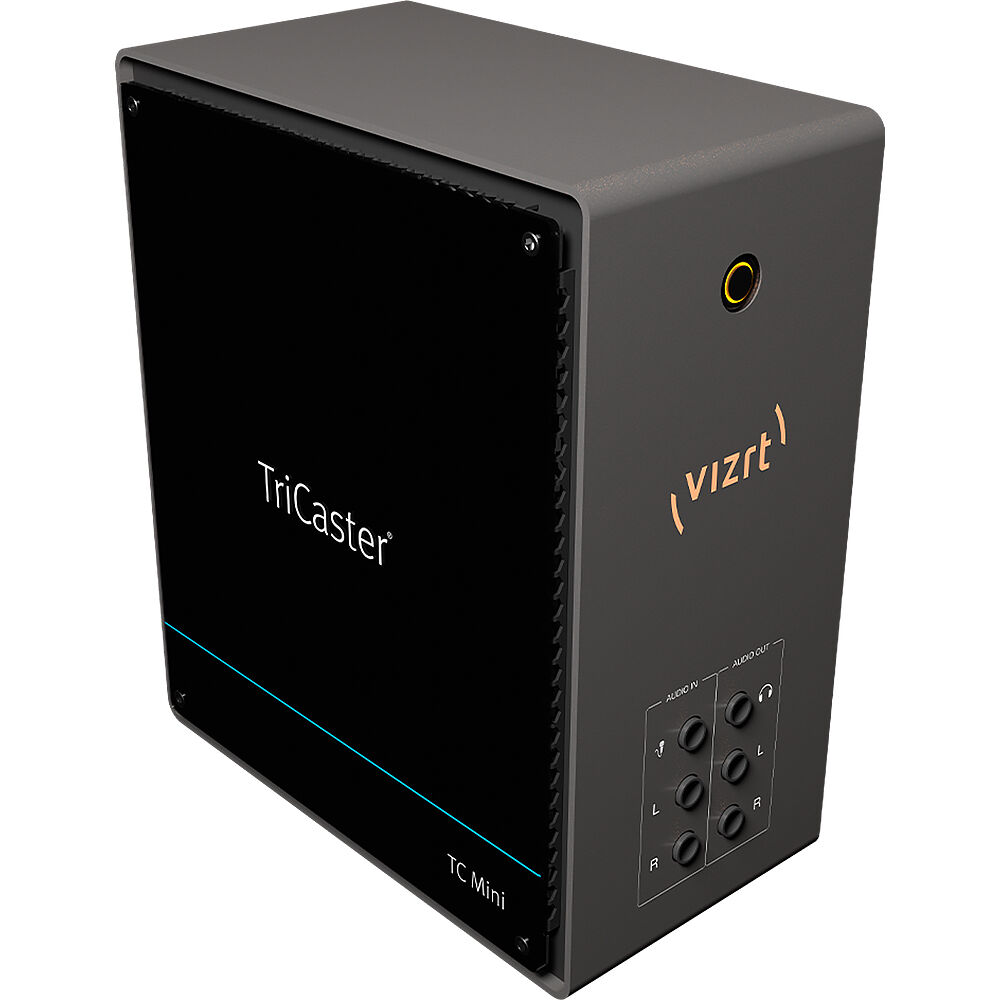

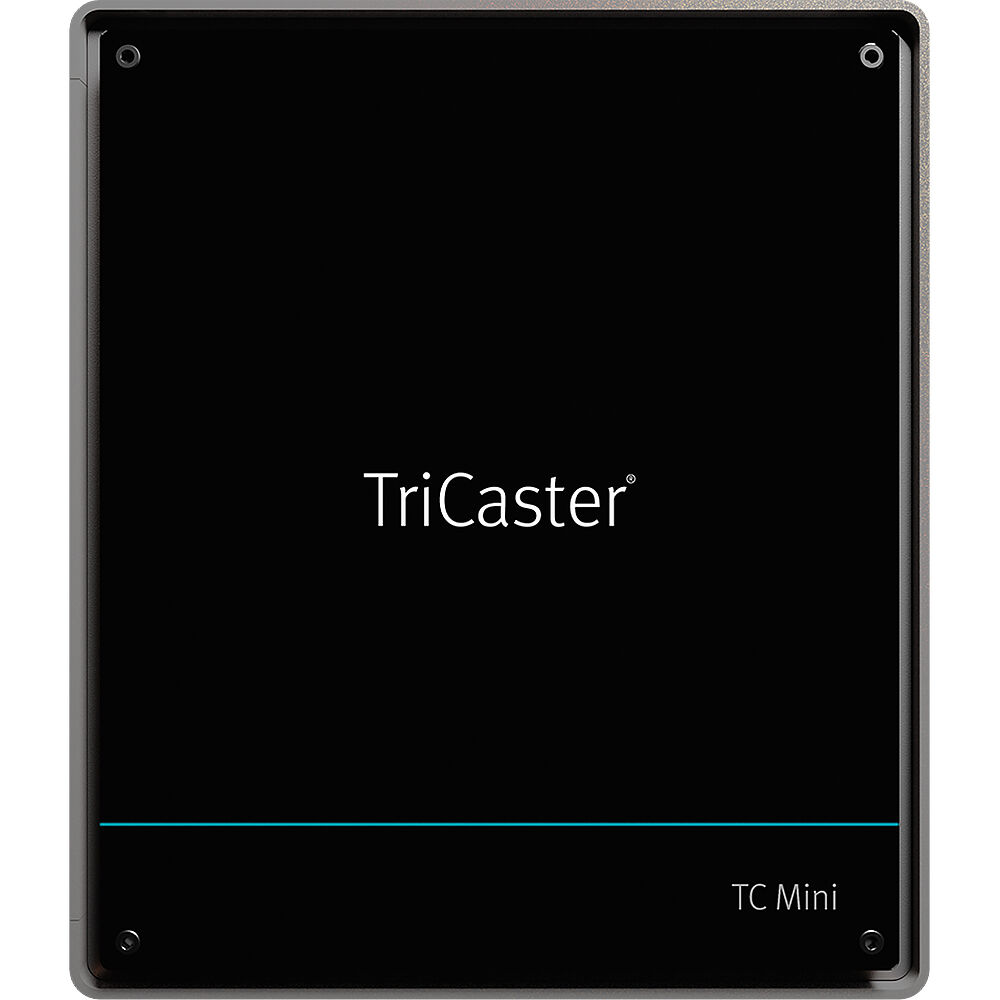

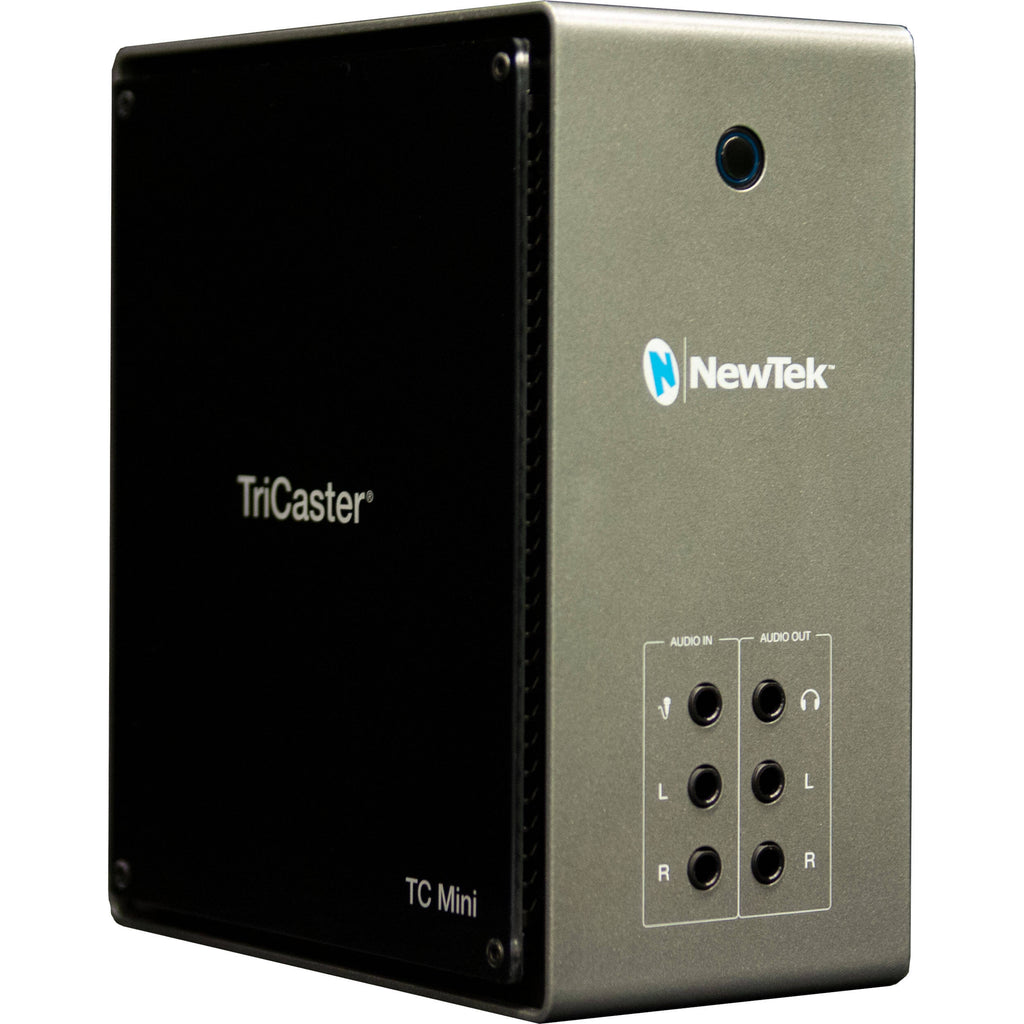

Vizrt TRICASTER MINI X Overview

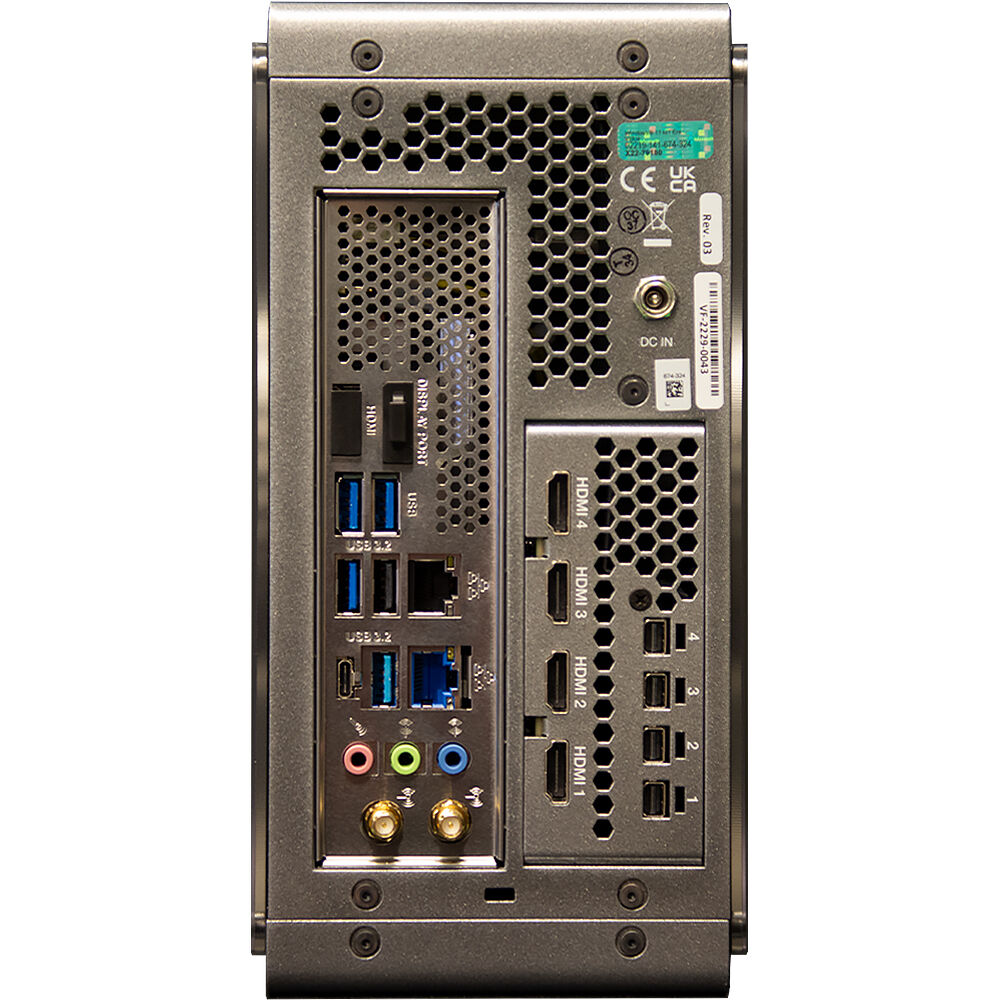

The NewTek TriCaster Mini X HDMI is the ultimate live-production tool with multiple HDMI, NDI, mini DisplayPort, and USB connections that support up to 4K video for switching and media playback. The Mini X can add graphics, record, livestream, and perform other network-driven functions simultaneously, along with four HDMI inputs that accept various AV equipment. The Mini X offers four mini DisplayPort outputs, which come with four HDMI adapters for expanded compatibility. Various internal software controls allow for chromakeying, switching, streaming, and more advanced audio and video control, depending on what suits your production.

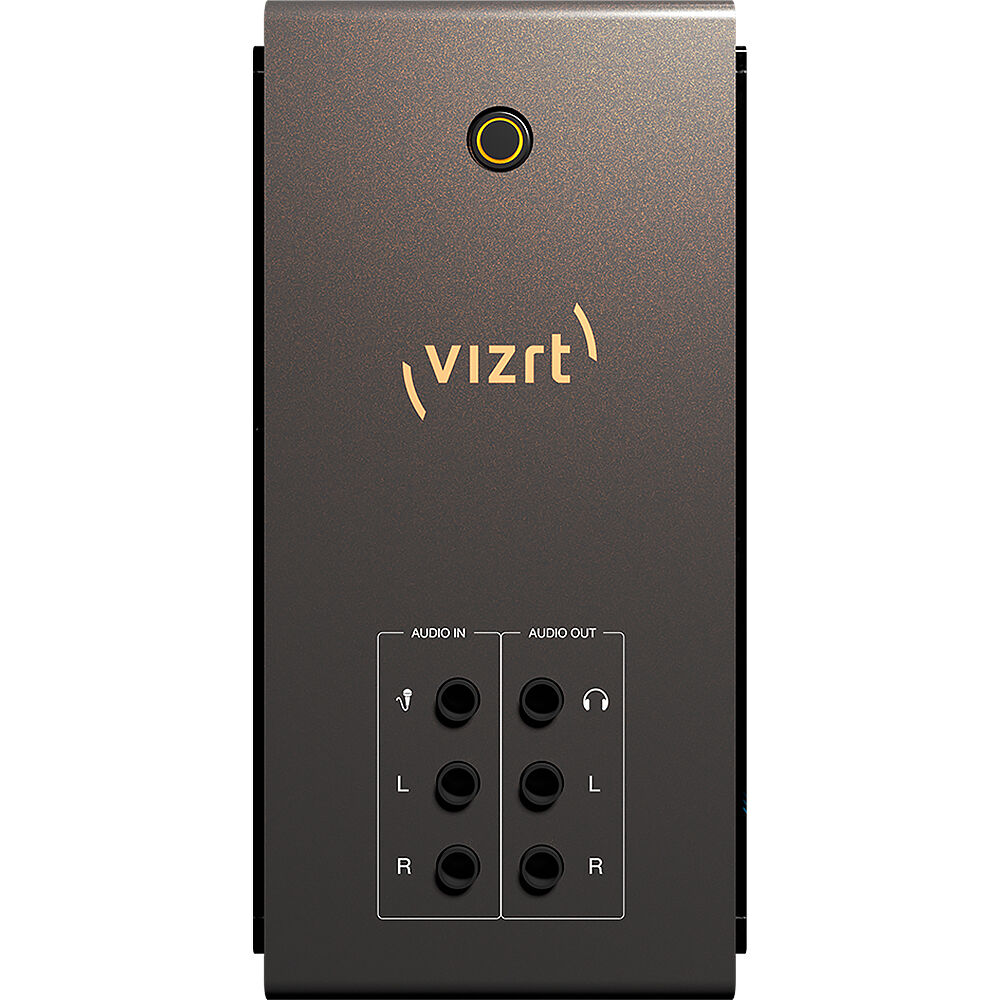

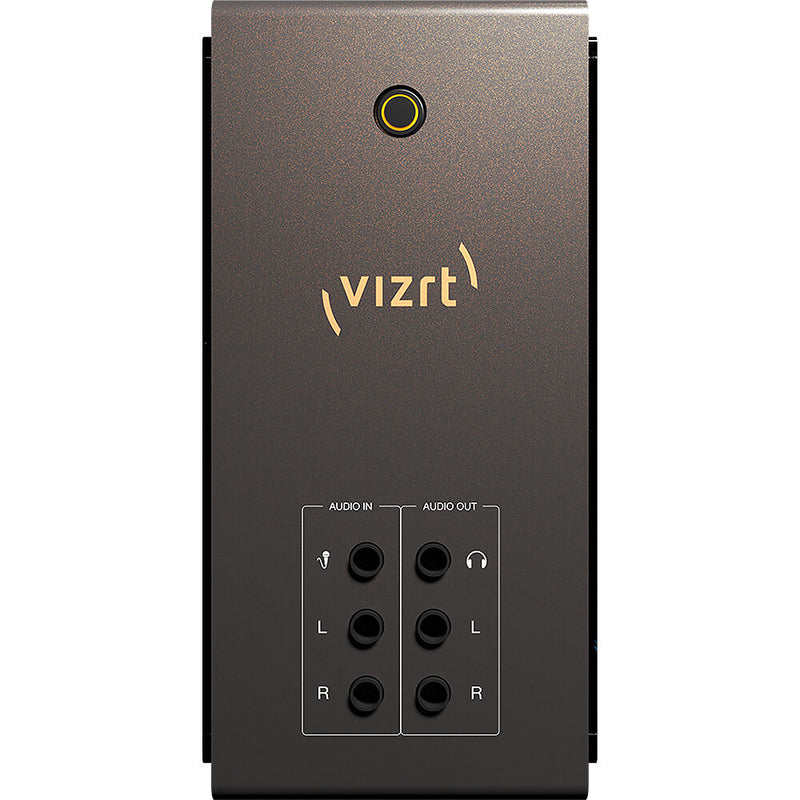

HDMI devices connect directly into the Mini X without requiring configuration for seamless integration into your preexisting production layout. Multiple audio ports support both line and microphone inputs as well as line and headphone outputs for improved sound quality and monitoring. Five USB 3.2 Type-A ports can connect the included keyboard and mouse to the system among other USB-friendly devices. A processing latency of just 1.5 frames ensures all of your equipment communicates efficiently.
- HD switching, streaming, and recording up to 4K30 video
- Real-time social media publishing
- 4 x HDMI video connections, eight IP video inputs via NDI
- IP video output via NDI and four mix outputs
- Multi-channel recording, audio mixing, and internal storage
- Compatible with major streaming platforms
- Video playback without additional hardware
- Built-in live titling and motion graphics
- Two simultaneous Skype video call inputs via software integration
- Up to eight simultaneous PTZ cameras via serial and network protocols with integrated controls and preset system
- Four Mix/effect buses supporting video re-entry
- Five media players and 15 media buffers
- Integrated LiveMatte chroma and luma keying technology on all source channels and mix/effect buses
- LiveSet technology with 30+ virtual sets and box effects
- DataLink for real-time automated data input
- Embedded digital audio outputs and inputs through HDMI conversion
In the Box
- Vizrt TriCaster Mini X HDMI
- Keyboard
- Mouse
- 4 x Mini DisplayPort to HDMI Adapter
- Power Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vizrt TRICASTER MINI XSpecs
| Switching Type |
Software
|
| Latency |
1 to 1.5 Frames
|
| Color Processing |
4:4:4YCbCr
|
| Audio Processing |
96 kHz
|
| Video Inputs |
4x HDMI
2x RJ45 |
| Input Video Format |
HDMI
DCI 4K 25/29.97 fps 1080p 25/29.97/50/59.94 fps 1080i 50/59.94 fps 720p 25/29.97/50/59.94 fps 480p 25/50/59.94 fps |
| Audio Inputs |
1x 1/4" TRS Analog Female
2x 1/4" TRS Analog Female |
| Embedded Audio Input |
HDMI: 2-Channel
|
| Video Outputs |
4x DisplayPort Female
|
| Audio Outputs |
1x 1/4" Balanced TS Female
1x 1/4" TRS Stereo Female |
| Embedded Audio Output |
HDMI
|
| Multiview Output |
3-Way Multiview
|
| Other I/O |
5x USB-A 3.1/3.2 Gen 2 Input
1x USB-C 3.1/3.2 Gen 2 Input |
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Power I/O |
1x Barrel Input
|
| Dimensions |
9.08 x 7.89 x 4.23" / 23.06 x 20.04 x 10.74 cm
|
| Weight |
8.4 lb / 3.8 kg
|
| Package Weight |
19.55 lb
|
| Box Dimensions (LxWxH) |
21.8 x 16.6 x 13.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
