Description
Vivotek AW-GEV-288A-370 Overview

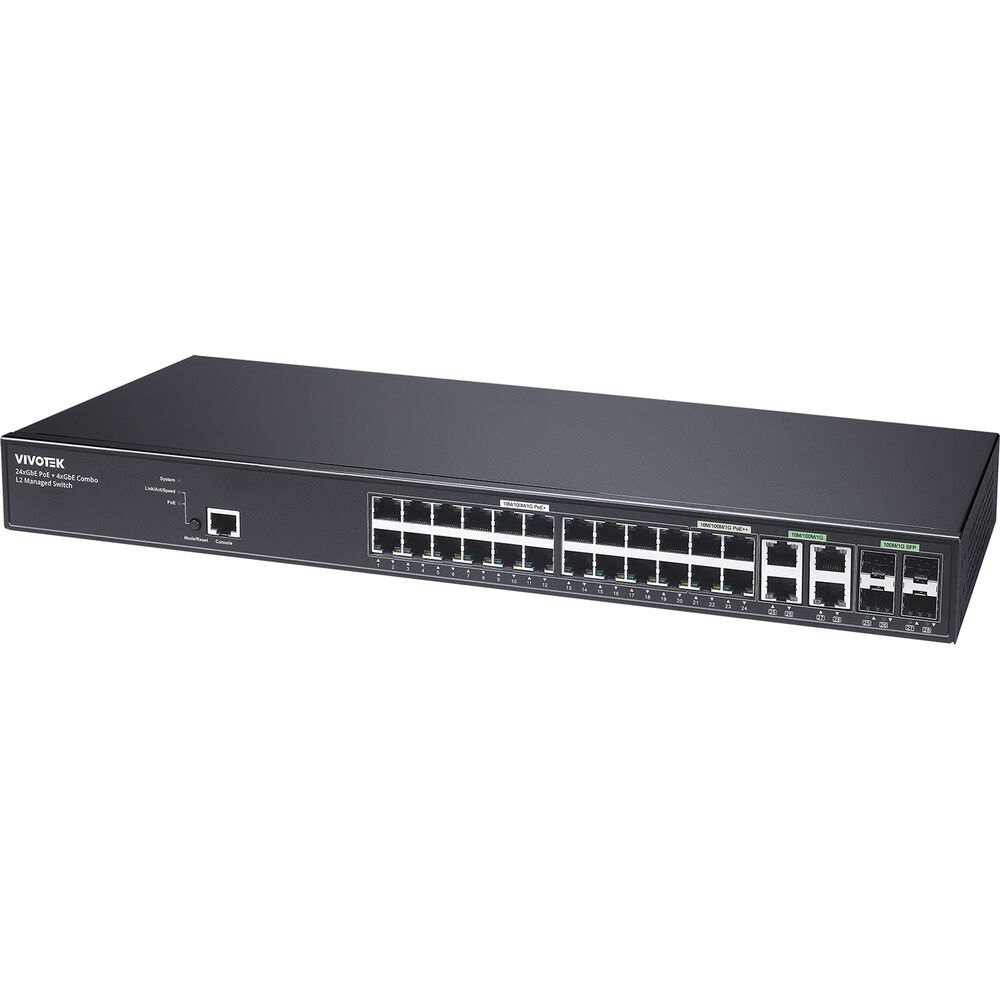

Grow your business's network to support advanced IP security cameras, Wi-Fi access points, printers, and other PoE compatible devices with the VIVOCAM AW-GEV-288A-370 24-Port Gigabit PoE++ Compliant Managed Network Switch from Vivotek. Supporting Layer 2 managed features, this switch includes 24 Gigabit-speed Ethernet ports, four of which support 90W to compatible devices while the remainder support up to 30W with a total budget of 370W. Four RJ45 / SFP combo ports are available for 1 Gb/s copper or fiber uplinks.
Performance
With a 56 Gb/s switching capacity and 41.7 Mpps forwarding rate, this switch delivers smooth data transfers.
Extend Mode
Enabling Extend Mode allows for up to 820.2' connections at 10 Mb/s.
Built Tough
This switch is designed to operate in temperatures between 32 to 122°F.
Silent Operation
With its fanless design, this switch works silently in the background while mounted onto a rack or desktop.
Items Included
- Vivotek VIVOCAM AW-GEV-288A-370 24-Port Gigabit PoE++ Compliant Managed Network Switch
- Power Cable
- Rack Mount Kit
- CD Manual
- Limited 2-Year Manufacturer Warranty
Additional Resources
Vivotek AW-GEV-288A-370 Specs
Key Specs
| Inputs/Outputs |
4x RJ45 Gigabit Ethernet PoE++ (100 W, 802.3bt Type 4)
20x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 4x RJ45/SFP Combo Gigabit Ethernet 1x RJ45 |
| Stackable |
No
|
| Switching Bandwidth |
56 Gb/s
|
| PoE Power Budget |
370 W
|
| Stackable |
No
|
Protocols
| Layer Services Supported |
Layer 2
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IGMP Snooping IPv4 IPv6 Link Aggregation RADIUS |
| Queuing |
Weighted Round Robin (WRR)
|
| Jumbo Frames Support |
9216 Bytes
|
| MAC Address Table Size |
8K
|
Security
| Security Features |
DHCP Snooping
RADIUS Authentication Storm Control |
Performance
| Forwarding Rate |
41.7 Mpps
|
| Switching Bandwidth |
56 Gb/s
|
| Packet Buffer |
4.1 Mb
|
Electrical
| PoE per Port |
30 to 90 W
|
| PoE Power Budget |
370 W
|
| Power Draw |
400.00 W (Max)
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Supply Type |
Internal
|
General
| Certifications |
CE, FCC, VCCI, UL, UKCA, ICES
|
| Operating Conditions |
32 to 122°F / 0 to 50°C at 10 to 90% Humidity
|
| Storage Conditions |
-4 to 158°F / -20 to 70°C
|
| Noise Level |
0.0 dB
|
| Cooling System |
Passive
|
| Material of Construction |
Metal
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes
|
| Dimensions |
17.4 x 8.3 x 1.7" / 442 x 211 x 44 mm
|
| Weight |
7.1 lb / 3.2 kg
|
