Description

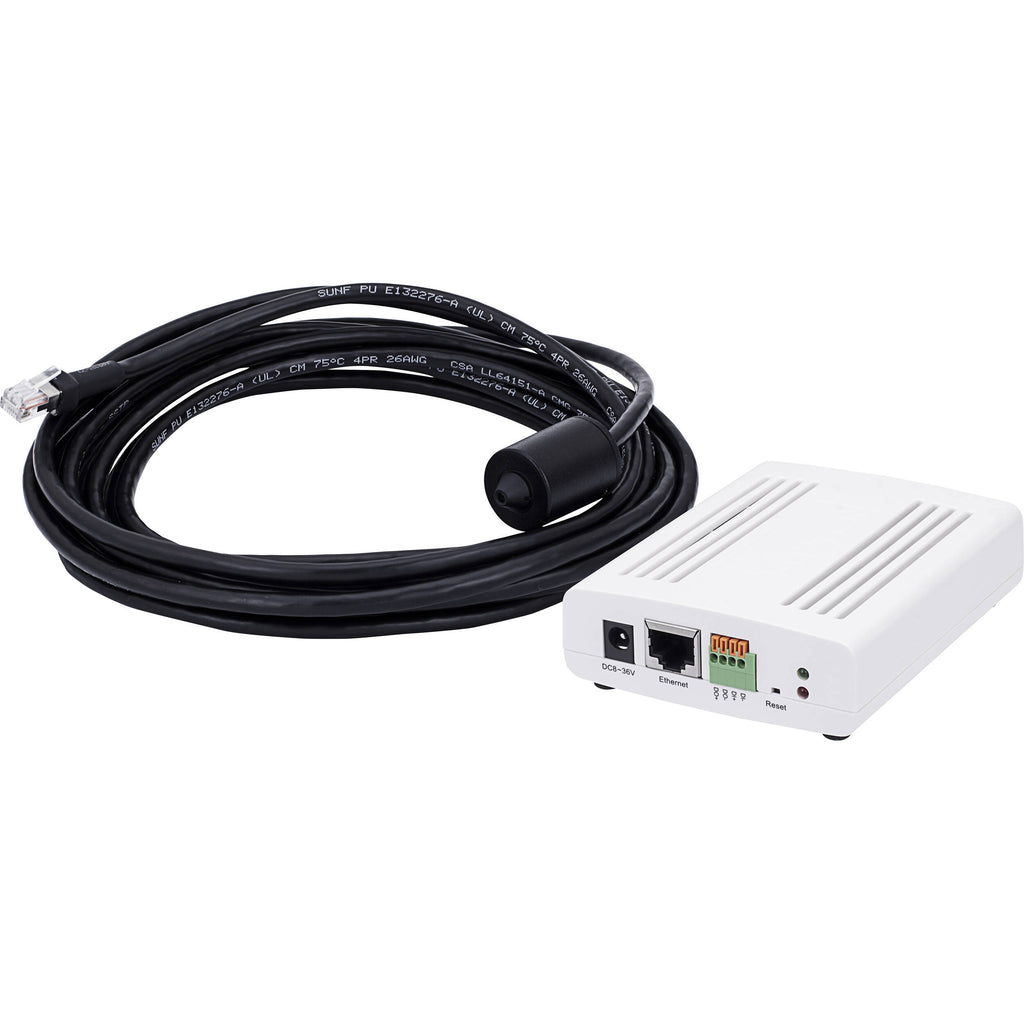

Vivotek VC9101 Overview
Designed for indoor and covert surveillance, the Vivotek VC9101 is a video core system that works in conjunction with the CU series camera units (available separately) for installation in ATMs, banks, stores, offices, and tight spaces. Depending on the camera unit installed, the VC9101 can stream a 5MP 360° fisheye image or a 4MP 16:9 image. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-certified video core system complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
In the Box
- Vivotek VC9101 Video Core System
- Installation Kit
Not in the Box
- Essential Lenses & Adapters (Not Included)
Guides & Manuals
Vivotek VC9101 Specs
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.726 |
| Pan/Tilt | None |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTCIP, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Five-Window Video Motion Detection, Face Detection, Time Filter |
| Built-In Installation Aids | Pixel Calculator |
| OS Compatibility | Windows 7 to 10 macOS 10.12 *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Memory | 2 GB RAM / 8000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 8.5 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Startup Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 90% (Non-Condensing) |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Dimensions | H: 1.2 x W: 4.1 x L: 3.3" / H: 30.0 x W: 105.0 x L: 84.0 mm |
| Weight | 6.7 oz / 190 g |
