Description
Vivotek V5K6D3A2 Overview

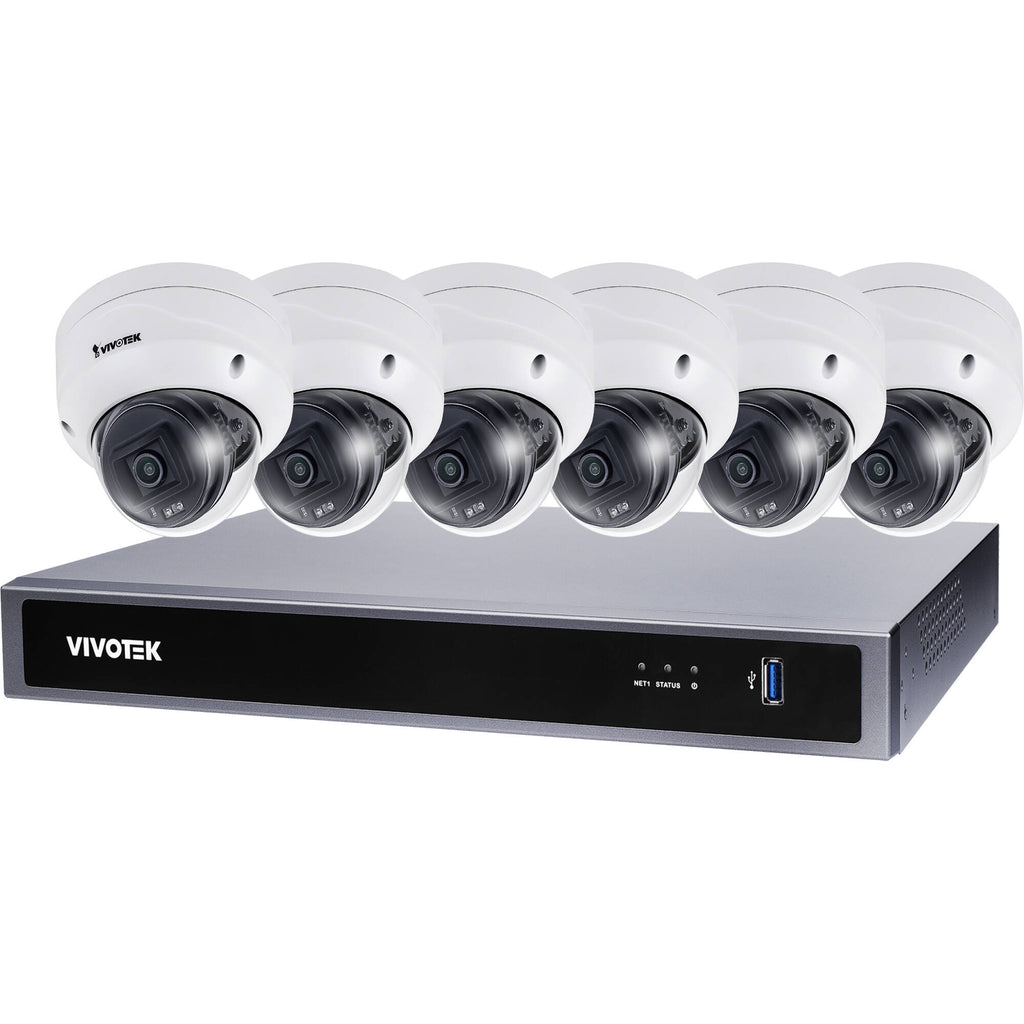

Monitor your property with the V5K6D3A2 8-Channel 8MP NVR with 2TB HDD & Six 5MP Dome Cameras Kit from Vivotek. This NVR enables you to record from and manage up to 8 cameras. It is equipped with two HDD ports that each support an HDD up to 8TB, for a maximum capacity of 16TB (2TB preinstalled).
The included dome cameras capture 5MP resolution video at 20 fps. An IR LED provides a night vision range up to 98'. The cameras each feature a 2.8mm fixed lens that delivers a 103° horizontal angle of view.
NVR Features
Plug-and-play operation
Independent HDMI and VGA video outputs
Display output up to 4K UHD
Camera Features
True WDR (120 dB)
3-axis angle adjustments
802.3af PoE
Items Included
- Vivotek V5K6D3A2 8-Channel 8MP NVR with 2TB HDD & Six 5MP Dome Cameras Kit
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vivotek V5K6D3A2 Specs
NVR
| Supported Cameras |
8
|
| Video Output |
1 x HDMI
1 x VGA |
| Display Resolution |
3840 x 2160, 1920 x 1080, 1280 x 720
|
| Frame Rate (fps) |
3840 x 2160 at 120 fps
1920 x 1080 at 480 fps |
| Recording Throughput |
192 Mb/s
|
| HDD Bay |
2
|
| HDD Included |
2 TB
|
| Storage Capacity |
16 TB (2 x 8 TB)
|
| Network Ports |
2 x 1000M RJ45
|
| PoE |
8 x 802.3af/at Plug-and-Play PoE Ports
120 W Maximum Total |
| Network Throughput |
224 Mb/s
|
| Alarm I/O |
4 Inputs, 1 Output
|
| Power |
100 to 240 VAC, 50/60 Hz, Maximum 190 W
|
| Dimensions |
14.4 x 12.4 x 1.7" / 365 x 315 x 44 mm
|
| Weight |
5.84 lb / 2.65 kg (No HDD)
|
Camera
| Resolution and Frame Rate |
2560 x 1920 (5 MP) at 20 fps
|
| Aspect Ratio |
4:3
|
| Aperture |
f/2.0
|
| Angle of View |
Horizontal: 103°
Vertical: 76° Diagonal: 134° |
| 3-Axis Adjustment |
Horizontal: 350°
Vertical: 75° Rotation: 350° |
| Minimum Illumination |
0.03 Lux (Color)
0.005 Lux (B&W) 0 Lux with IR |
| IR LED Range |
98' / 30 m
|
| Wide Dynamic Range |
True WDR 120 dB
|
| Power |
802.3af PoE Class 2, 6.49 W Maximum
|
| Dimensions |
4.6 x 3.5" / 117.2 x 89.6 mm
|
| Weight |
1.2 lb / 540 g
|
Packaging Info
| Package Weight |
23.315 lb
|
| Box Dimensions (LxWxH) |
22.1 x 17.8 x 16"
|
