Description
Vivotek SD9161-H-V2 Overview

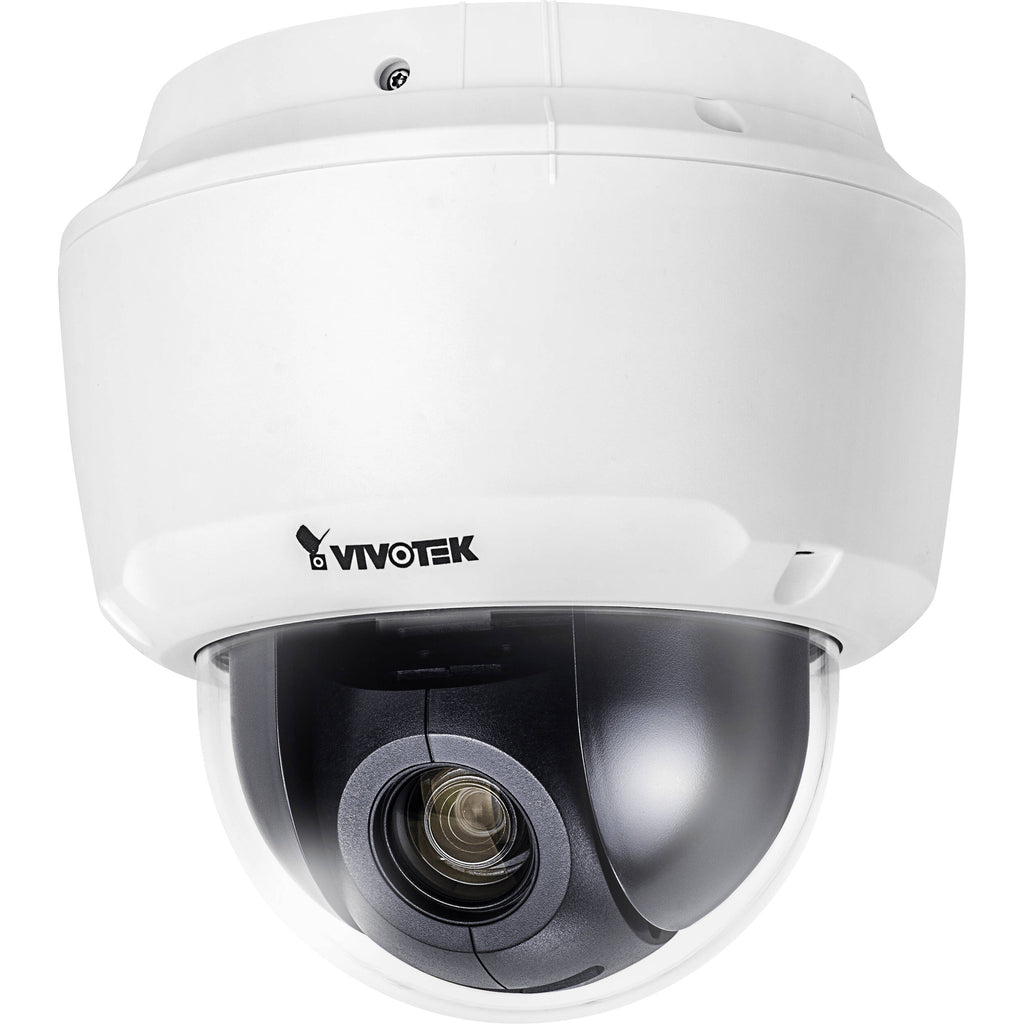

Designed to monitor a room or hallway, the SD9161-H-v2 2MP PTZ Network Dome Camera from Vivotek uses a 1/2.8" progressive scan CMOS sensor to capture 1080p resolution video at 60 fps. A 5.1-51mm varifocal lens delivers a 57 to 6.2° horizontal field of view. The camera features endless panning, a 180° tilt range, and 10x optical zoom. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
Multimedia SoC CPU
Removable IR cut filter enables day and night functionality
Smart Stream III optimizes bandwidth efficiency
Image settings include: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, external illuminators, white balance, image adjustment (brightness, contrast, saturation, sharpness), defog, 3D-DNR, EIS, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control), WDR, focus, privacy masking, scheduled profile settings, and pixel calculator
Object detection classification with attribute extraction includes: people (gender, color, bag, hat), vehicle (two-wheeled, four-wheeled, bike, bus, car, motorcycle, truck, color), research extraction, and path extraction
Smart Tracking Advanced (embedded license for intrusion, loitering, line crossing, face detection, unattended object, and missing object)
Additional features include: WDR Pro (100 dB dynamic range), 73 dB S/N ratio, seamless recording to microSD/SDHC/SDXC cards and NAS, 256 preset locations, 128 presets per tour, auto pan mode, and auto patrol mode
2 x digital inputs and 1 x digital output
System power and status LED indicators
Live viewing for up to ten clients
Compatible with Microsoft Windows 10, 8, and 7, Mac 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, VLC 1.1.11 or above, and Stratocast
3-year free trial of Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
NDAA compliant
In the Box
- Vivotek SD9161-H-v2 2MP PTZ Network Dome Camera
- indoor Pendant Mount
- Alignment Sticker
- L-Wrench
- Power Cable
- Limited 3-Year Manufacturer Warranty
Vivotek SD9161-H-V2 Specs
Camera
| Sensor | 2 MP 1/2.8" CMOS |
| Focal Length | 5.1 to 51mm |
| Maximum Aperture | f/1.6 to 1.8 |
| Zoom | Optical: 10x Digital: 32x |
| Lens Field of View | Horizontal: 57 to 6.2° Vertical: 34 to 3.5° Diagonal: 64 to 7.1° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.14 Lux B&W: 0.005 Lux |
| Shutter Speed | 1/30,000 to 1/8 Seconds |
| DORI Coverage | With 5.1 to 51mm Lens: Detect: 252.2 up to 1928.1' / 76.9 up to 587.7 m Observe: 100 up to 765.1' / 30.5 up to 233.2 m Recognize: 51.8 up to 385.5' / 15.8 up to 117.5 m Identify: 25.9 up to 190.3' / 7.9 up to 58.0 m |
Video
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, G.726 |
Pan & Tilt
| Pan/Tilt | Programmed Pan: 360° at 360°/s Programmed Tilt: 180° at 360°/s |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTCIP, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Object Detection, Smart Tracking Advanced |
| OS Compatibility | Windows 7 to 10 macOS 10.12 *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | None |
Hardware
| Memory | 2 GB RAM / 8000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Internal Storage | None |
| External Storage Options | Cloud |
Power
| Power Source | AC, DC, PoE 802.3at (30 W) |
| Power Consumption | 17 W |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 90% (Non-Condensing) |
| Environmental Protection | None |
General
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Dimensions | ø: 6.8 x H: 6.2" / ø: 172.0 x H: 157.0 mm |
| Weight | 2.2 lb / 1 kg |
Packaging Info
| Package Weight | 3.65 lb |
| Box Dimensions (LxWxH) | 11.7 x 9.2 x 9.1" |
