Description

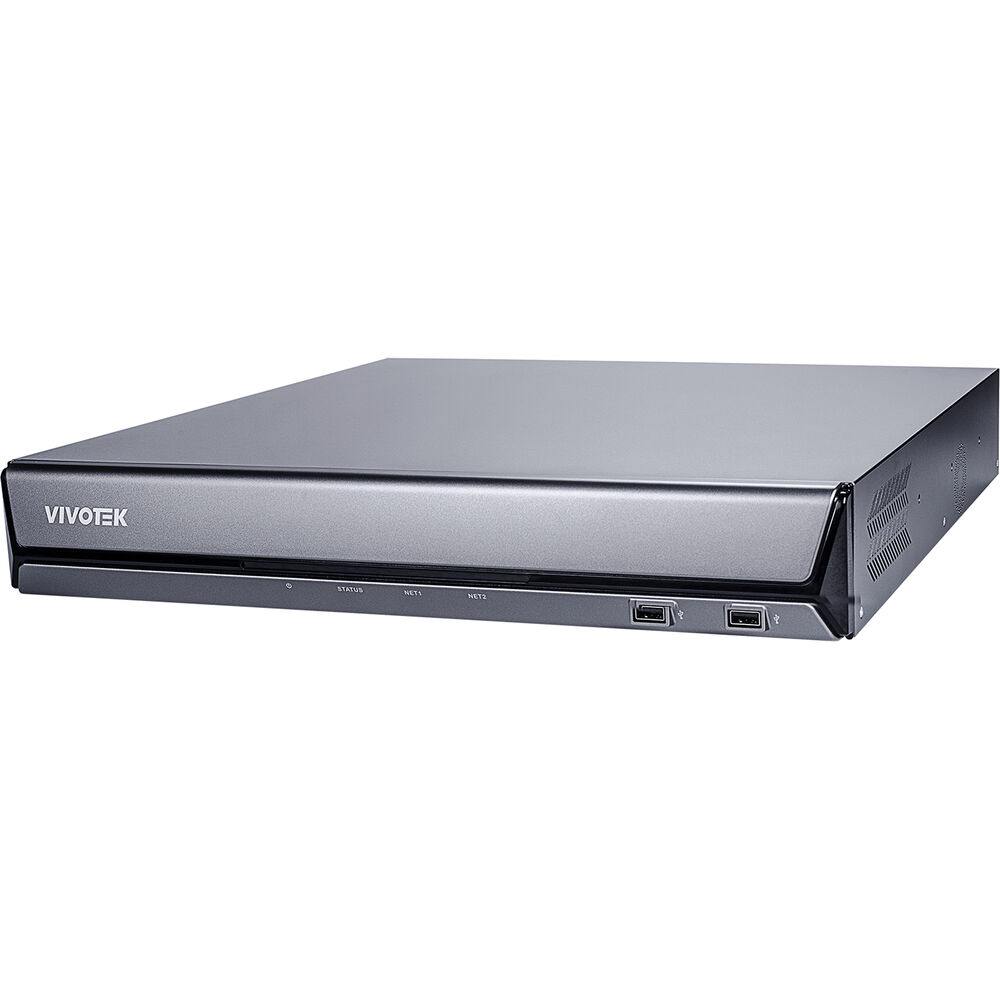

Vivotek ND9542P Overview
Record from and manage up to 32 cameras at resolutions up to 3840 x 2160 with the ND9542P 32-Channel 4K UHD NVR (No HDD) from Vivotek. This NVR is equipped with four SATA ports that each support an HDD up to 8TB, for a maximum capacity of 32TB (HDDs available separately). H.265, H.264, and MJPEG compressions keep file sizes manageable while maintaining the best quality possible.
This NVR features HDMI and VGA ports, along with an audio input and output. Remote management is possible thanks to the iViewer app for iOS and Android. Compliance with ONVIF profile S enables interoperability with ONVIF cameras.
Embedded Linux OS
Recording modes include: continuous, schedule, manual, event, and activity adaptive streaming
Supports IP cameras up to 20MP
16 x PoE ports
4K UHD video output via HDMI
Fisheye dewarping
PTZ operation includes: direction control, home, iris, preset, and patrol (group)
Compatible with Chrome, iViewer for Android and iOS, VIVOCloud, Shepherd, VAST 2, and VSS
HDD S.M.A.R.T disk management
Watermark support
Watchdog hardware and software
Power restoration restarts the system automatically after power recovery
In the Box
- Vivotek ND9542P 32-Channel 4K UHD NVR (No HDD)
- Power Cord
- HDD Adapter Brackets
- Mouse
- Screws
- Foot Pads
- Limited 3-Year Manufacturer Warranty
Vivotek ND9542P Specs
General
| Number of Channels | 32 |
| Playback Resolution | HDMI: 3840 x 2160 VGA: 1920 x 1080 |
| Recording Resolution | 4K |
| PTZ Support | Yes |
| Throughput | 192 Mb/s (Recording) 224 Mb/s (Networking) |
| IP Camera Support | 32 |
| Decoding Resolution | 7680 x 2560 3 Channels: 3840 x 2160 at 90 fps 12 Channels: 1920 x 1080 at 360 fps |
| 2-Way Audio | Yes |
Connectivity
| A/V I/O | 1 x HDMI 1 x VGA 1 x 1/8" (3.5 mm) Audio Input 1 x 1/8" (3.5 mm) Audio Output |
| Communication Inputs/Outputs | 16 x RJ45 PoE+ 2 x RJ45 Gigabit Ethernet 2 x USB-A 2.0 1 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x RS-485 |
| Audio Inputs/Outputs | 1 Input 1 Output |
| System Connection | 4 x SATA |
| Wi-Fi | None |
| Bluetooth | None |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SMTP, TCP/IP, UPnP |
Compatibility
| Supported Video Codecs | H.264, H.265, MJPEG |
| Supported Audio Codecs | G.711, G.726 |
| Backup Method | USB Drive |
| Supported IEEE Standards | 802.3af, 802.3at |
| Supported Languages | Arabic Czech English French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
Computing
| Installed Operating System | Embedded Linux |
| Optical Drive | None |
System
| Installed Drive | None |
| Max Capacity Supported | 8 TB (Each Drive) 32 TB (Total) |
| Number of Bays | 4 x 3.5" Internal |
| RAID | RAID 0, 1, 5 |
Software System Requirements
| OS Compatibility | Linux Windows *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes: Android & iOS App Name: iViewer, VIVOCloud *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Web Browser Support | Chrome |
Notifications
| Alarm Inputs/Outputs | 16 Inputs 8 Outputs |
| Event Trigger | Analytics, DI, DO, Disconnected, Disk Failure, Disk Full, Fan Error, Motion, PIR, PoE Exceeded, Tampering |
| Notification Type | Buzzer, Email |
System Functions
| Search Modes | Alarm, Calendar, Date/Time |
| Recording Modes | Activity, Continuous, Event, Manual, Schedule |
| Recording Intervals | 5 Seconds to 10 Seconds (Pre-Record) 20 Seconds to 300 Seconds (Post-Record) |
| Dual Streaming | Yes |
| Fisheye Dewarping | 1O, 1O3R, 1O8R, 1P, 1P3R, 1R, Local, Web |
Electrical
| Power Consumption | 300 W (Maximum) |
| Power Supply Type | External |
| PoE Power Budget | 200 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 0 to 95% |
Physical
| Built-In Display | None |
| Certifications | NDAA, CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS *as per Manufacturer |
| LED Indicators | Yes |
| Dimensions (W x D x H) | 17.0 x 16.6 x 2.6" / 432.0 x 421.0 x 66.0 mm |
| Weight | 10.1 lb / 4.6 kg (Without HDD) |
Packaging Info
| Package Weight | 14.745 lb |
| Box Dimensions (LxWxH) | 22.2 x 21.2 x 7" |
