Description
Vivotek FE9192-H Overview

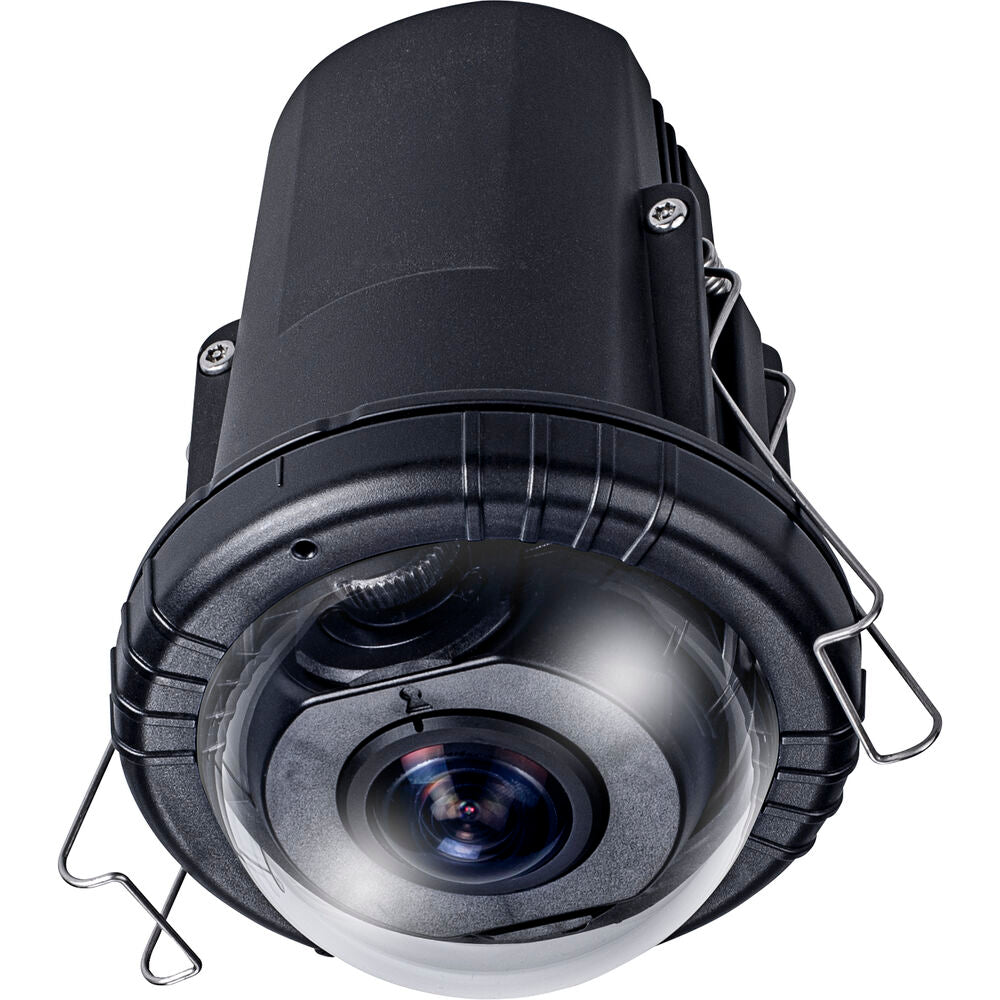

Monitor a room or hallway with the FE9192-H 12MP Network Fisheye Dome Camera from Vivotek. This unit uses a 12MP 1/2.3" progressive scan CMOS sensor to capture 2944 x 2944 resolution video at 30 fps. The camera's 1.22mm fixed lens delivers a 180° horizontal field of view and a 360° panomorphic fisheye view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-certified camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
General Features
Client and local dewarping modes offer various fisheye, panoramic, and region views while the camera is wall or ceiling mounted
Multimedia SoC CPU
Removable IR cut filter enables day and night functionality
H.265, H.264, and MJPEG video compressions
Smart Stream III optimizes bandwidth efficiency
Triple streaming
ePTZ with 12x digital zoom
WDR Pro (120 dB)
56.9 dB S/N ratio
Image settings include; video title and time stamp overlay, video orientation (flip, mirror), day/night settings, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, exposure, BLC, exposure control, AE speed adjustment, WDR, privacy mask, scheduled profile settings, and pixel calculator
Five-window video motion detection, people detection, and time filter
Smart VCA includes; intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, crowd detection, and running detection
Event triggers include; audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, microSD card life expectancy, shock detection, and system boot
Secure boot and signed firmware security
Built-in microphone with an effective audio pickup range of about 16'
100M RJ45 Ethernet
Compatible with Windows 10, 8 & 7, Mac OS 10.12 (Chrome only), Internet Explorer 10 & 11, Chrome 58 or higher, VLC 1.1.11 or higher, VADP package, Trend Micro IoT Security, and Stratocast
Live viewing for up to ten clients
System power and status LED indicators
NDAA, CE, FCC, RCM, VCCI, UL, CB, BIS, BSMI, and CNS certified
DORI Ranges
103' detection range
41' observation range
21' recognition range
10' identification range
Vivotek FE9192-H Specs
Camera
| Sensor | 12 MP 1/2.3" CMOS |
| Focal Length | 1.2mm |
| Maximum Aperture | f/2 |
| Zoom | Digital: 12x |
| Lens Field of View | Horizontal: 180° Vertical: 180° Diagonal: 180° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux B&W: 0.005 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
Video
| Streaming Resolution | 2944 x 2944 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
Audio
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | Yes |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Five-Window Video Motion Detection, People Detection, Time Filter |
| Built-In Installation Aids | Pixel Calculator |
| OS Compatibility | Windows 7 Windows 8 Windows 10 macOS 10.12 *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
Hardware
| Memory | 2 GB RAM / 8000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 9 W |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Startup Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 90% |
| IP Rating | IP54 |
General
| Inputs/Outputs | 1 x RJ45 |
| Video Management Software | VADP Package, Stratocast |
| Dimensions | ø: 3.2 x H: 4.8" / ø: 82.0 x H: 122.0 mm |
| Weight | 0.8 lb / 353 g |
Packaging Info
| Package Weight | 1.215 lb |
| Box Dimensions (LxWxH) | 7.7 x 5.6 x 5.2" |
