Description
Vivotek FE9180 V2 Overview

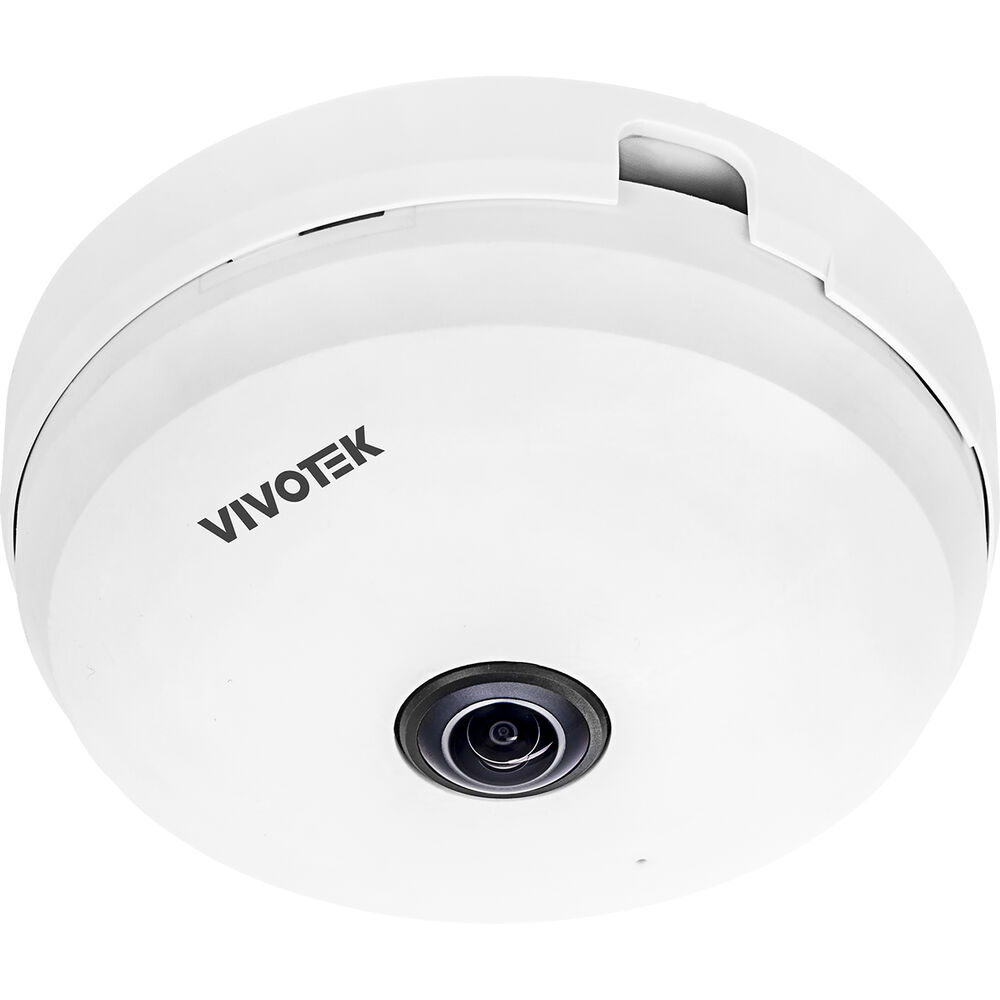

Monitor an indoor space with the FE9180-H-v2 5MP Network Fisheye Dome Camera from Vivotek. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1920 resolution video at 30 fps. The camera's 1.16mm fixed lens delivers a 180° horizontal field of view and a 360° fisheye view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
Client and local dewarping modes offer various fisheye, panoramic, and region views while the camera is wall or ceiling mounted
Multimedia SoC CPU
Removable IR cut filter enables day and night functionality
SNV (Supreme Night Visibility) for low-light conditions
Smart Stream III optimizes bandwidth efficiency
ePTZ with 12x digital zoom
WDR Pro (120 dB) and 63 dB S/N ratio
Image settings include: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, exposure, BLC/HLC, exposure control, AE speed adjustment, WDR, privacy mask, scheduled profile settings, and pixel calculator
Five-window video motion detection
Built-in microphone with an effective audio pickup range of about 16'
VADP package includes: Stratocast, 1-year free trial of Trend Micro IoT Security, and VIVOCloud
Live viewing for up to ten clients
In the Box
- Vivotek FE9180-H-v2 5MP Network Fisheye Dome Camera
- Alignment Sticker
- Screw Pack
- Mounting Bracket
- Limited 36-Month Manufacturer Warranty
Vivotek FE9180 V2 Specs
Key Specs
| Sensor |
5 MP 1/2.7" CMOS
|
| Focal Length |
1.16mm
|
| Lens Field of View |
Horizontal: 180°
Vertical: 180° Vertical: 180° |
| Built-In Mic |
Yes
|
| Power Source |
PoE 802.3af (15 W)
|
Camera
| Sensor |
5 MP 1/2.7" CMOS
|
| Focal Length |
1.16mm
|
| Maximum Aperture |
f/2.25
|
| Zoom |
Digital: 12x
|
| Lens Field of View |
Horizontal: 180°
Vertical: 180° Vertical: 180° |
| IR Cut Filter |
Mechanical
|
| Day/Night |
Yes
|
| Minimum Illumination |
Color: 0.05 Lux
B&W: 0.005 Lux |
| Shutter Speed |
1/32000 to 1/5 Seconds
|
| DORI Coverage |
With 1.16mm Lens:
Detect: at 103' / at 31.4 m Observe: at 41' / at 12.5 m Recognize: at 20.7' / at 6.3 m Identify: at 10.2' / at 3.1 m |
| Mobile App Compatible |
No
|
Video
| Streaming Resolution |
1920 x 1920 at 30 fps
|
| Supported Video Compression |
H.264, H.265, MJPEG
|
| Multi-View Streaming |
Yes, 4 Streams
|
Audio
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
G.711, G.726
|
| Built-In Mic |
Yes
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log
|
| Supported Protocols |
ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
|
System Integration
| Application Programming Interface (API) |
ONVIF Profiles G, S & T
|
| Analytics |
Five-Window Video Motion Detection
|
| Built-In Installation Aids |
Pixel Calculator
|
| OS Compatibility |
Windows 7 to 10
macOS 10.12 |
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Data Streaming |
Yes
|
| Alarm I/O |
No
|
Hardware
| Memory |
256 MB RAM / 128 MB Flash
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Internal Storage |
No
|
| External Storage Options |
Cloud, NAS
|
Power
| Power Source |
PoE 802.3af (15 W)
|
| Power Consumption |
4.6 W
|
Environmental
| Operating Temperature |
14 to 122°F / -10 to 50°C
|
| Startup Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
90%
|
General
| Inputs/Outputs |
1x RJ45
|
| Video Management Software |
VADP Package
|
| Certifications |
FCC (Part 15 Class B), RCM, UL, as per Manufacturer
|
| Dimensions |
ø: 3.7 x H: 1.4" / ø: 94.0 x H: 35.0 mm
|
| Weight |
0.3 lb / 140 g
|
Packaging Info
| Package Weight |
0.605 lb
|
| Box Dimensions (LxWxH) |
5.4 x 5.1 x 4.2"
|
