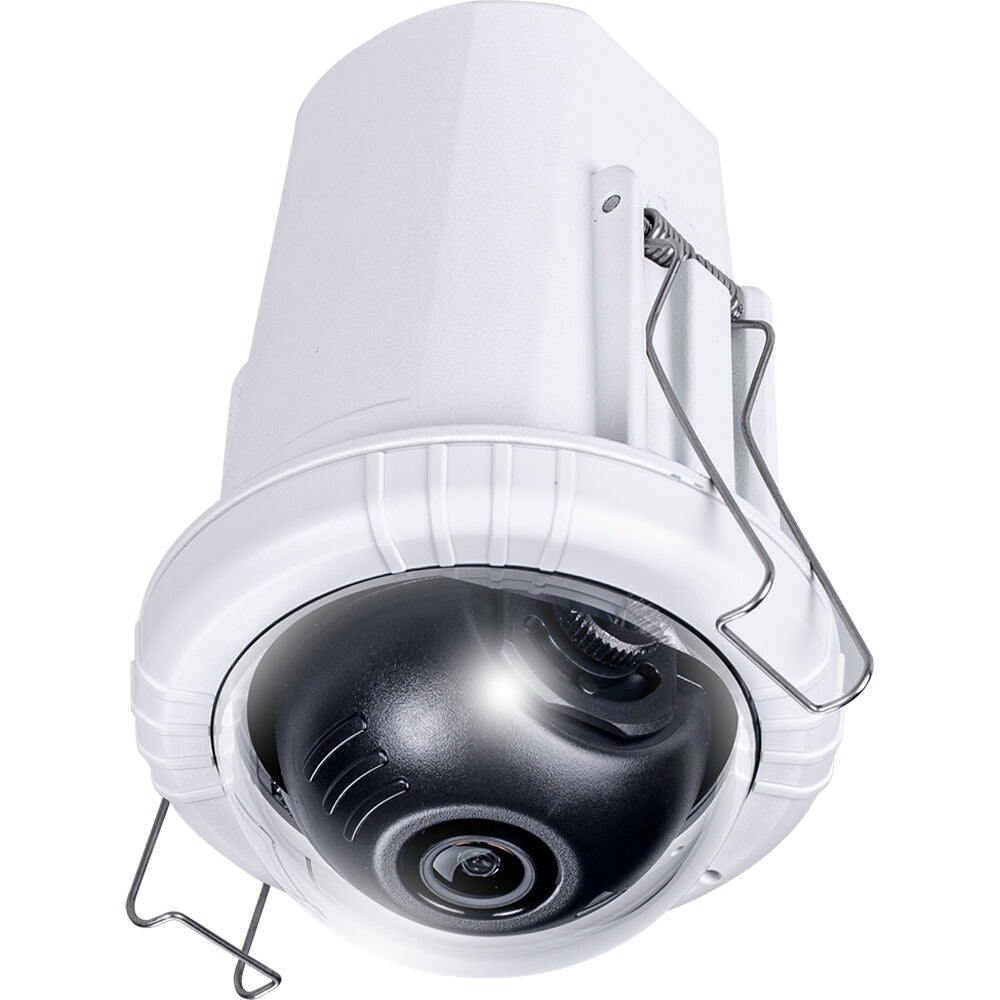

Vivotek FD9182-H Overview
Vivotek's FD9182-H is an H.265 recessed dome network camera equipped with a 5MP sensor, enabling a resolution of 2560 x 1920 at 20 fps. Featuring Vivotek SNV and WDR Pro technology, the FD9182-H is capable of capturing high-quality imagery in both high-contrast and low-light environments. The recessed-mount design enables discreet and elegant ceiling installations. FD9182-H is able to blend into indoor environments such as retail stores, banks, restaurants, offices, and other public areas.
In the Box
- Vivotek FD9182-H 5MP Network Dome Camera
- Limited 3-Year Warranty
Vivotek FD9182-H Specs
Camera
Sensor |
5 x MP 1/2.7" CMOS |
Focal Length |
2.8mm |
Maximum Aperture |
f/2 |
Zoom |
Digital: 48x |
Lens Field of View |
Horizontal: 103° Vertical: 76° Diagonal: 134° |
IR Cut Filter |
Mechanical |
Day/Night |
Yes |
Minimum Illumination |
Color: 0.03 Lux B&W: 0.005 Lux |
Video
Streaming Resolution |
2560 x 1920 at 20 fps |
Supported Video Compression |
H.264, H.265, MJPEG |
Multi-View Streaming |
Yes, 3 Streams |
Audio
1- or 2-Way Audio |
One-Way |
Audio Formats |
G.711, G.726 |
Built-In Mic |
Yes |
System Integration
Application Programming Interface (API) |
ONVIF Profiles G, S & T |
Analytics |
5-Window Video Motion Detection |
Event Trigger |
Yes |
Event Action |
Recording, Notification, Alarm |
Data Streaming |
Yes |
Environmental
Operating Temperature |
14 to 122°F / -10 to 50°C |
IK Rating |
IK10 |
General
Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC |
Pan/Tilt |
None |
I/O Connections |
1 x RJ45 |
Internal Storage |
None |
External Storage Options |
NAS |
Power Source |
PoE 802.3af (15 W) |
Power Consumption |
PoE: 3.6 W |
Dimensions |
ø: 3.2 x H: 4.8" / ø: 82.0 x H: 122.0 mm |
Weight |
0.8 lb / 353 g |
Packaging Info
Package Weight |
1.185 lb |
Box Dimensions (LxWxH) |
6.8 x 5.9 x 5.6" |
Vivotek FD9182-H Reviews
