Description
Vivotek CU9183HF Overview

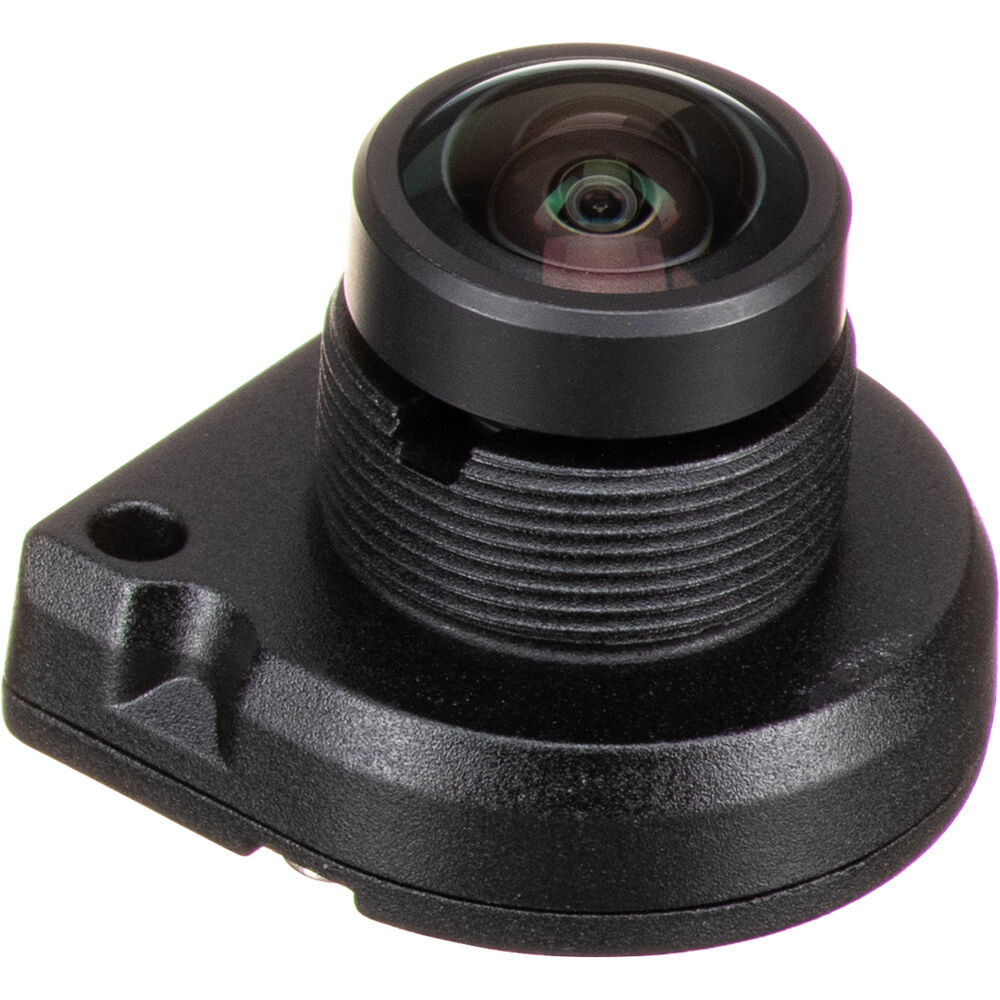

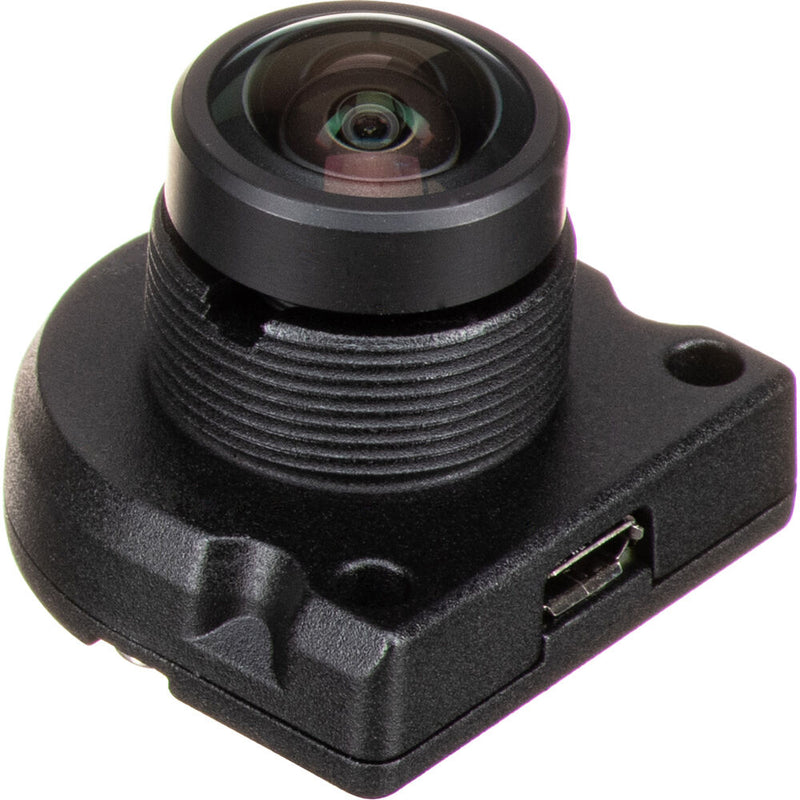

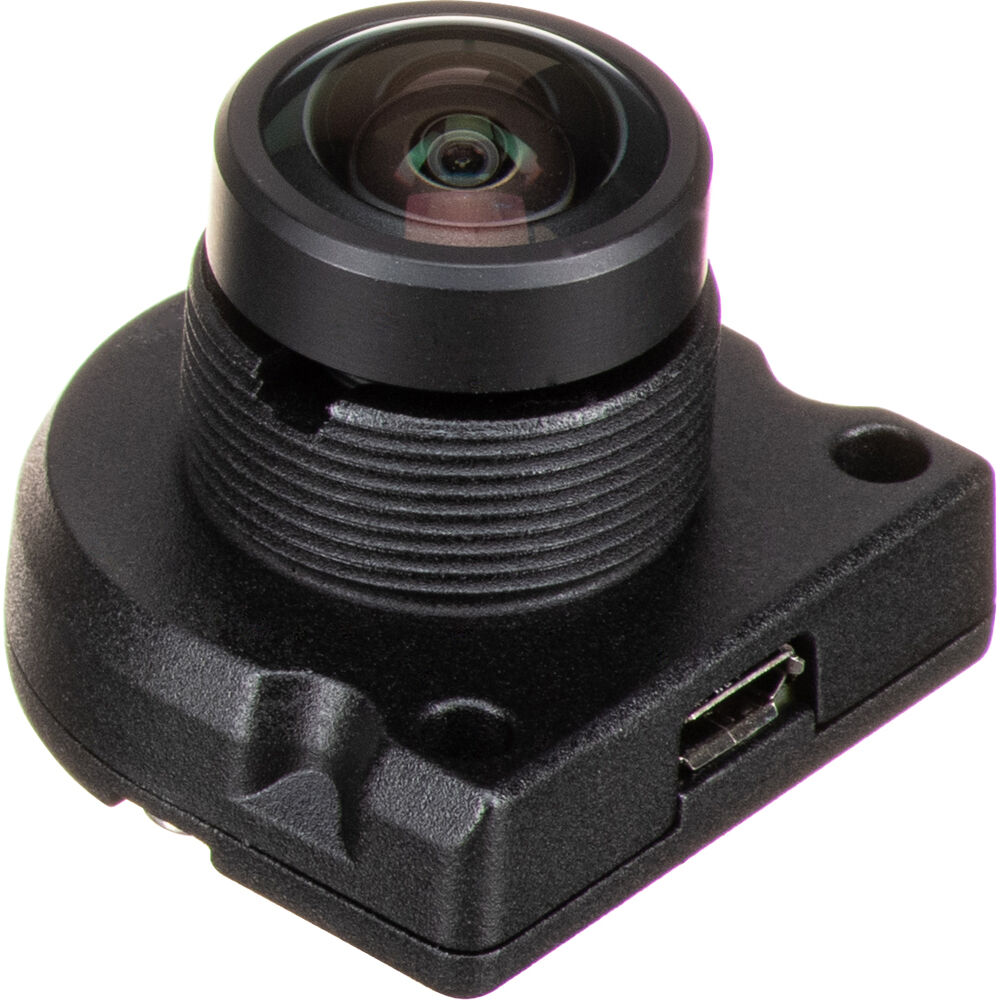

Designed for covert surveillance, the Vivotek CU9183-HF 5MP Modular Camera Sensor with 1.22mm Fisheye Lens works in conjunction with the VC9101 Video Core System (available separately) for installation in ATMs, banks, stores, offices, and tight spaces. The camera features a flat-shaped sensor unit with a 1.22mm fisheye lens and 16.4' cable for flexible placement. The lens delivers a 180° horizontal field of view.
Designed to be used with the VC9101 video core system
WDR Pro
56.3 dB S/N ratio
ePTZ with 48x digital zoom
DORI Ranges
80' detection range
32' observation range
16' recognition range
8' identification range
In the Box

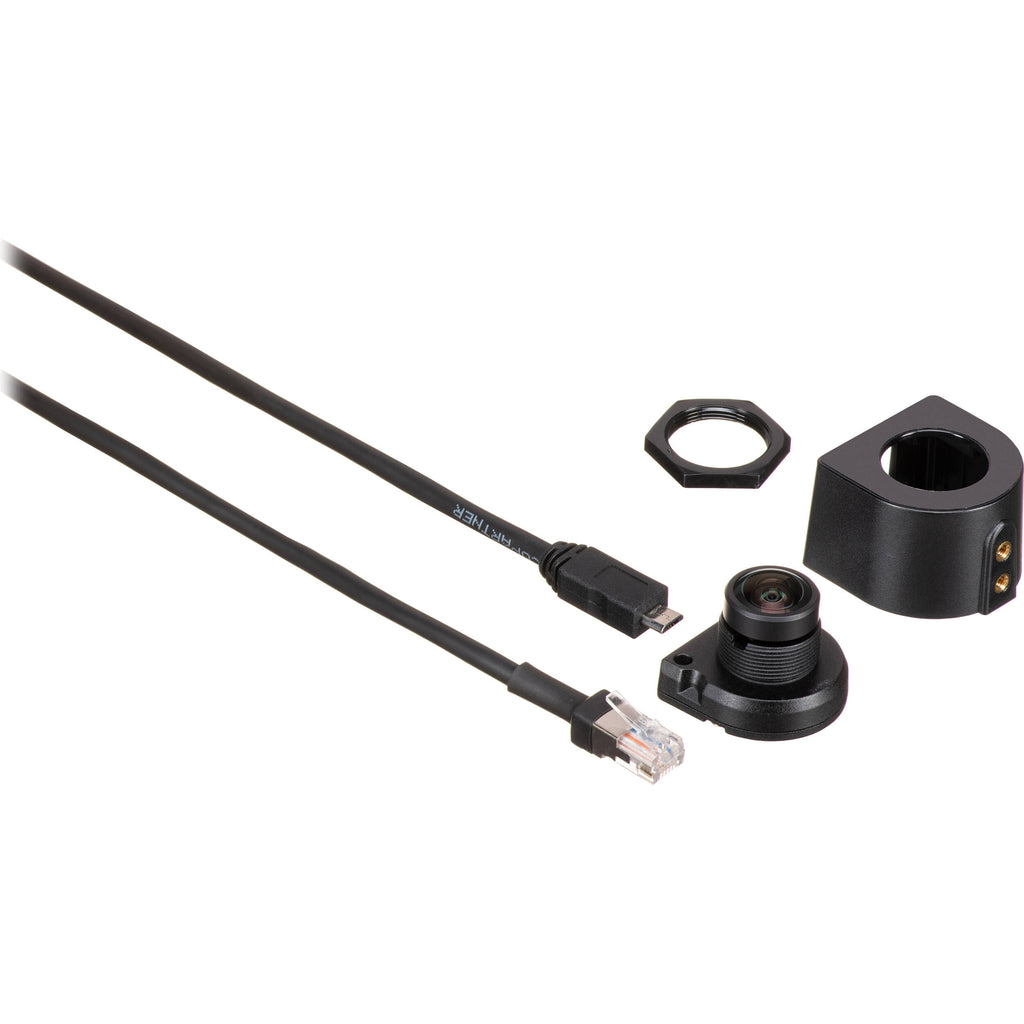

- Vivotek CU9183-HF 5MP Modular Camera Sensor with 1.22mm Fisheye Lens
- Limited 36-Month Manufacturer Warranty
Not in the Box
- Essential Lenses & Adapters (Not Included)
Vivotek CU9183HF Specs
Camera
| Sensor | 5 MP 1/2.7" CMOS |
| Focal Length | 1.2mm |
| Maximum Aperture | f/2 |
| Zoom | Digital: 48x |
| Lens Field of View | Horizontal: 180° Vertical: 180° Diagonal: 180° |
| Minimum Illumination | Color: 0.035 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
Video
| Streaming Resolution | 1920 x 1920 at 30 fps |
Pan & Tilt
| Pan/Tilt | None |
Sensors & Alarms
| Event Trigger | No |
Hardware
| Media/Memory Card Slot | None |
Power
| Power Source | DC, PoE 802.3af (15 W) |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Startup Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 90% |
General
| Dimensions | H: 1.3 x W: 1.3 x L: 1.1" / H: 32.0 x W: 33.0 x L: 28.0 mm |
| Weight | 1.8 oz / 52 g |
Packaging Info
| Package Weight | 0.81 lb |
| Box Dimensions (LxWxH) | 13.1 x 7 x 2" |
