Description
Vivotek CU9171H Overview

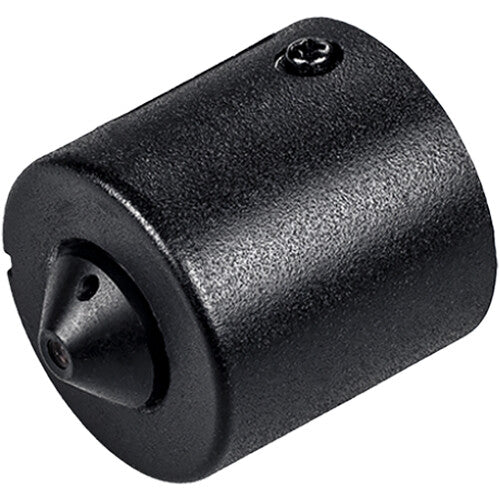

Designed for covert surveillance, the Vivotek CU9171-H 4MP Modular Camera Sensor with 3.7mm Pinhole Lens works in conjunction with the VC9101 Video Core System (available separately) for installation in ATMs, banks, stores, offices, and tight spaces. The camera features a cylinder-shaped sensor unit with a 3.7mm pinhole lens and 16.4' cable for flexible placement. The lens delivers a 93° horizontal field of view.
Designed to be used with the VC9101 video core system
WDR Pro
55.9 dB S/N ratio
ePTZ with 48x digital zoom
DORI Ranges
253' detection range
100' observation range
51' recognition range
25' identification range
In the Box
- Vivotek CU9171-H 4MP Modular Camera Sensor with 3.7mm Pinhole Lens
- Limited 36-Month Manufacturer Warranty
Not in the Box
- Essential Lenses & Adapters (Not Included)
Vivotek CU9171H Specs
Camera
| Sensor | 4 MP 1/2.7" CMOS |
| Focal Length | 3.7mm |
| Maximum Aperture | f/2.5 |
| Zoom | Digital: 48x |
| Lens Field of View | Horizontal: 93° Vertical: 48° Diagonal: 117° |
| Minimum Illumination | Color: 0.045 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
Video
| Streaming Resolution | 2688 x 1520 at 30 fps |
Pan & Tilt
| Pan/Tilt | None |
Sensors & Alarms
| Event Trigger | No |
Hardware
| Media/Memory Card Slot | None |
Power
| Power Source | DC, PoE 802.3af (15 W) |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Startup Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 90% |
General
| Dimensions | ø: 0.9 x H: 1.2" / ø: 24.0 x H: 30.0 mm |
| Weight | 0.7 oz / 19 g |
Packaging Info
| Package Weight | 0.74 lb |
| Box Dimensions (LxWxH) | 12.2 x 6 x 2" |
