Description

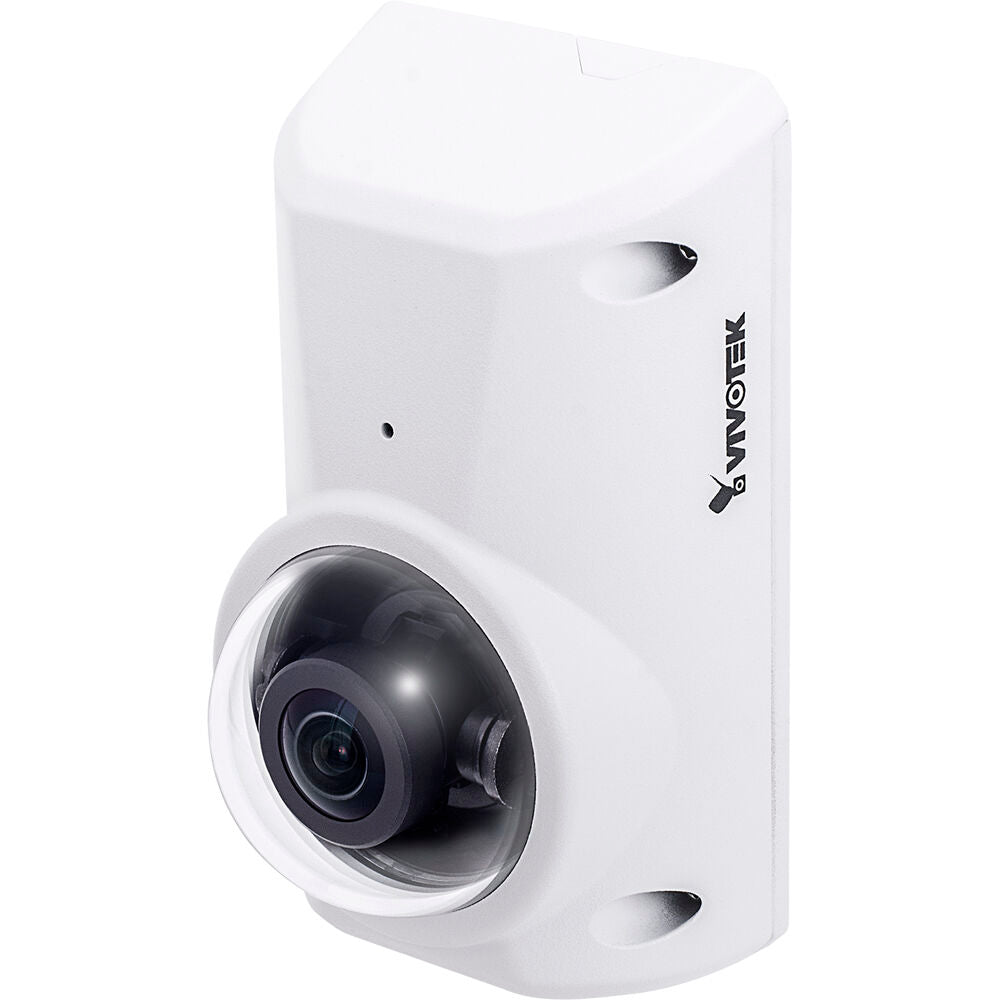

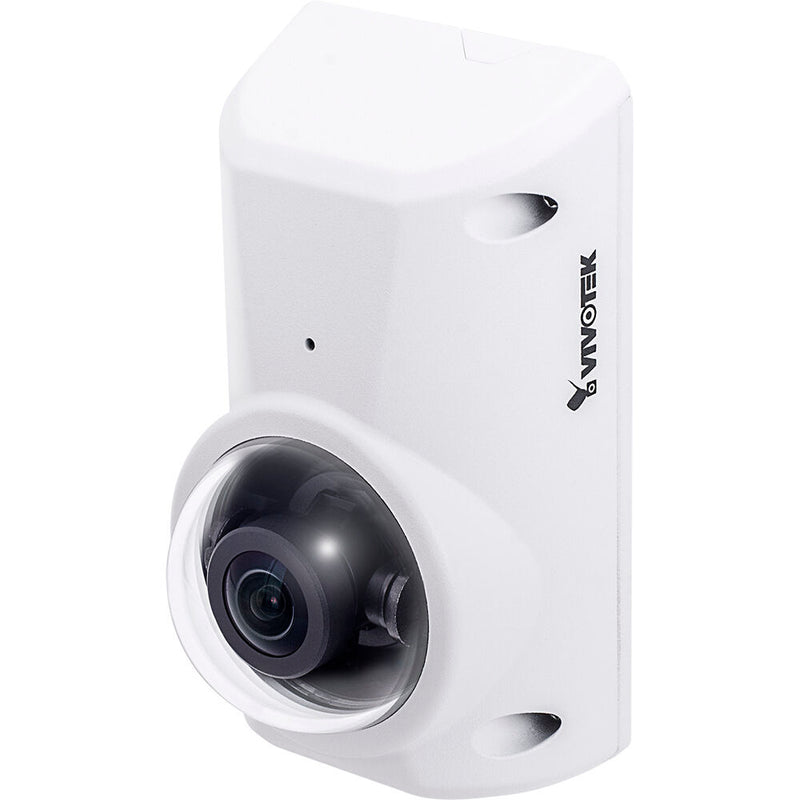

Vivotek CC9380-HV Overview
Monitor an indoor or outdoor area with the CC9380-HV 5MP Network Fisheye Camera from Vivotek. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at up to 30 fps. The camera's 1.45mm fixed fisheye lens delivers a 180° horizontal panoramic field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This fisheye camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
Multimedia SoC CPU
±25° lens tilt range
Removable IR cut filter enables day and night functionality
H.265, H.264, and MJPEG video codecs
Smart Stream III optimizes bandwidth efficiency
Three video streams (up to eight configurable profiles)
ePTZ with 48x digital zoom
WDR Pro
120 dB dynamic range
62 dB S/N ratio
Image settings include video title and time stamp overlay, video orientation (flip, mirror), day/night settings, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, DIS, scene mode (auto, deblur), exposure, BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR, privacy mask, and scheduled profile settings
Five-window video motion detection
Event triggers include audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, microSD card life expectancy, and system boot
Built-in microphone with an effective audio pickup range of about 16'
100M RJ45 Ethernet
Compatible with Windows 10, 8 & 7, Mac OS 10.12 (Chrome only), Internet Explorer 10 & 11, Chrome 58 or higher, VLC 1.1.11 or higher, VADP package (1-year free trial of Trend Micro IoT Security, VIVOCloud), VAST VMS, and Shepherd
Live viewing for up to ten clients
System power and status LED indicators
Anti-ligature design makes this suitable for use in medical and holding facilities where self-harm by subjects may be a concern
CE, FCC, VCCI, UL, and CB certified
In the Box
- Vivotek CC9380-HV 5MP Outdoor Network Fisheye Camera
- Screw Pack
- IP66 Waterproof Cable Connector
- Mount Adapter Bracket
- Tilt Bracket
- Desiccant Bag
- Alignment Sticker
- Limited 3-Year Warranty
Vivotek CC9380-HV Specs
Camera
| Sensor | 5 MP 1/2.7" CMOS |
| Focal Length | 1.45mm |
| Maximum Aperture | f/2.2 |
| Zoom | Digital: 48x |
| Lens Field of View | Horizontal: 180° Vertical: 120° Diagonal: 180° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.11 Lux B&W: 0.01 Lux |
| Shutter Speed | 1/32,000 to 1/5 Seconds |
Video
| Streaming Resolution | 2560 x 1920 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
Audio
| Streaming | Single |
| Audio Formats | G.711, G.726 |
| Built-In Mic | Yes |
Networking
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNTP, SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Five-Window Video Motion Detection |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
System Requirements
| Windows OS Support | Windows 7, 8, 10 |
| Mac OS Support | macOS 10.12 |
Environmental
| Operating Temperature | -22 to 122°F / -30 to 50°C |
| Startup Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 90% |
| IP Rating | IP66 |
| IK Rating | IK10 |
General
| Memory | 512 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum] |
| Pan/Tilt | None |
| I/O Connections | 1 x RJ45 |
| Video Management Software | VAST, Shepherd, VADP Package |
| Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 5 W |
| Dimensions | H: 4.5 x W: 2.6 x L: 2.3" / H: 115.0 x W: 65.0 x L: 59.0 mm |
| Weight | 0.7 lb / 338 g |
Packaging Info
| Package Weight | 1.32 lb |
| Box Dimensions (LxWxH) | 5.4 x 5.3 x 4.2" |
