Description
Vivotek CM80I8-2040 Overview

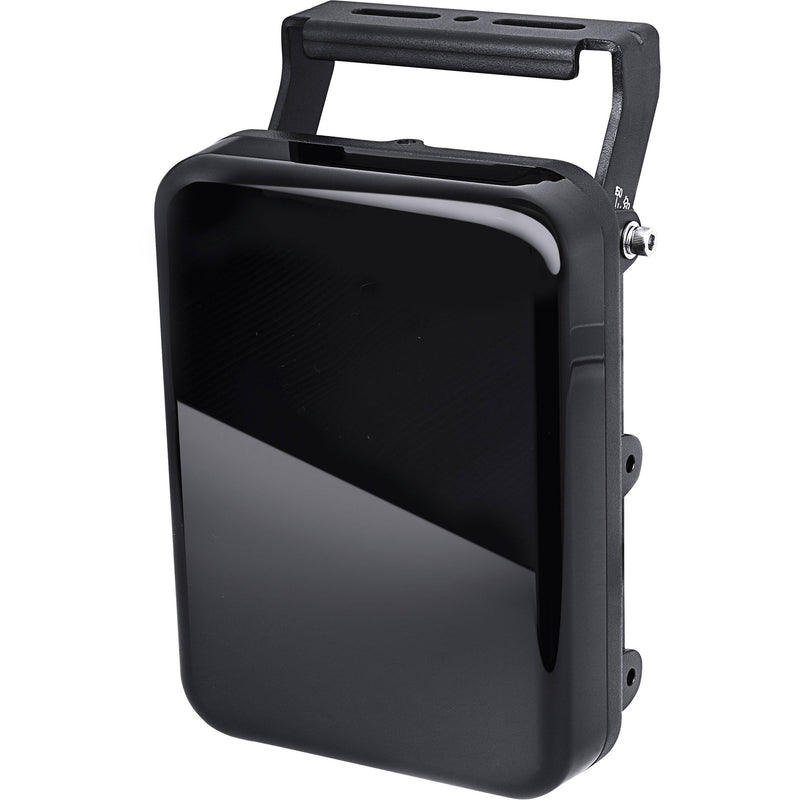

The CaMate CM80 Series CM80I8-2040 IR Illuminator from Vivotek is equipped with a 24-LED array that transmits IR illumination at a wavelength of 850 nm. Continuous Variable Angle Technology enables the illuminator to adjust beam angles to deliver highly efficient intensity and uniform distribution of illumination for varying installation distances. This illuminator has an IR illumination range up to 918'. It delivers a 20 to 40° horizontal beam angle in an elliptical beam pattern.
This device is housed in an IP68- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. A bracket is included for installation.
Suitable for traffic LPR/ANPR, airport, parking lot, and other outdoor applications
Continuous Variable Angle (CVA) Technology enables the illuminator to adjust beam angles for different installation distances
Provides high uniformity without hot spots or overexposure
Day and night switching
IR on/off control
Auto IR on/off controlled by light sensor
Light sensor sensitivity and adjustable IR power can be accessed via CaMate remote/RS-485 control (available separately)
In the Box
- Vivotek CaMate CM80 Series CM80I8-2040 IR Illuminator
- U-Type Bracket
- Limited 5-Year Warranty
Vivotek CM80I8-2040 Specs
| Beam Angle | Horizontal: 20 to 40° |
| Distance | 557 to 918' / 170 to 280 m |
| Beam Pattern | Elliptical |
| LED Array | 24 |
| IR Wavelength | 850 nm |
| External Input | IR On/Off Control |
| External Output | Day/Night Switching |
| IR Control | Automatic IR On/Off Controlled by Light Sensor |
| Light Sensor Sensitivity | 1/5/10/30 (Default)/50/100%, Maximum 1000 Lux Accessed via CaMate Remote/RS-485 Control (Available Separately) |
| IR Power | Adjustable IR Power: 20 to 100% Accessed via CaMate Remote/RS-485 Control (Available Separately) |
| Power Input | 24 VDC ±10%, 24 VAC (50/60 Hz) ±10% |
| Power Consumption | Maximum 90 W |
| Operating Temperature | -40 to 122°F / -40 to 50°C |
| Working Temperature | -40 to 122°F / -40 to 50°C |
| Humidity | 90% |
| IP Rating | IP68 |
| IK Rating | IK10 |
| Certifications | IEC 62471, EN 50130-4, CE: EN61000-6-3, EN60598-1, EN60598-2-5, FCC Class A, EN60529 |
| Bracket Size | U-Type Bracket (Included): 5.3 x 1.3 x 3.2" / 134 x 34 x 81.5 mm |
| Cable Length | 2.46' / 0.75 m (UL AWM) |
| Dimensions | 8.6 x 6.3 x 2.9" / 220 x 160 x 73 mm |
| Weight | 4.6 lb / 2.1 kg |
