Description

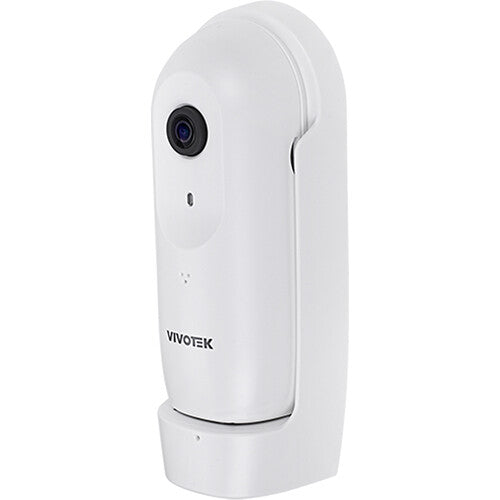

Vivotek CC9160-H Overview
Monitor a room or hallway with the C Series CC9160-H 2MP 180° Panoramic Network Camera from Vivotek. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. The camera's 1.66mm fixed lens delivers a 180° panoramic field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-certified camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
Low-profile design
Multimedia SoC CPU
15° tilt range with tilt bracket
H.265, H.264, and MJPEG video compressions
Smart Stream III optimizes bandwidth efficiency
Triple streaming
ePTZ with 48x digital zoom
WDR Pro
120 dB dynamic range
66.2 dB S/N ratio
Image settings include; video title and time stamp overlay, video orientation (flip, mirror), white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, DIS, scene mode (auto, deblur), exposure, BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR, privacy mask, and scheduled profile settings
Five-window video motion detection
Event triggers include; audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, microSD card life expectancy, system boot, and digital input
Built-in microphone with an effective audio pickup range of about 16'
100M RJ45 Ethernet
Digital input and output
Compatible with Windows 10, 8 & 7, Mac OS 10.12 (Chrome only), Internet Explorer 10 & 11, Chrome 58 or higher, VLC 1.1.11 or higher, and VADP package (1-year Trend Micro IoT Security free trial, VIVOCloud, Stratocast)
Live viewing for up to ten clients
System power and status LED indicators
In the Box
- Vivotek C Series CC9160-H 2MP 180° Panoramic Network Camera
- Mounting Bracket
- Tilt Bracket
- Screw Pack
Vivotek CC9160-H Specs
Camera
| Sensor | 2 MP 1/2.8" CMOS |
| Focal Length | 1.6mm |
| Maximum Aperture | f/1.95 |
| Zoom | Digital: 48x |
| Lens Field of View | Horizontal: 180° Vertical: 100° Diagonal: 180° |
| Minimum Illumination | Color: 0.03 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
Video
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Video Outputs | 1 x RJ45 |
Audio
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | Yes |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Five-Window Video Motion Detection |
| OS Compatibility | Windows 7 or Later macOS 10.12 Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
Hardware
| Memory | 512 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Internal Storage | None |
| External Storage Options | Cloud, NAS |
Power
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 5 W |
Environmental
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Startup Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 90% |
General
| Inputs/Outputs | 1 x RJ45 |
| Video Management Software | VADP |
| Dimensions | H: 4.7 x W: 2.0 x L: 1.5" / H: 120.0 x W: 52.0 x L: 39.0 mm |
| Weight | 0.2 lb / 81 g |
Packaging Info
| Package Weight | 0.785 lb |
| Box Dimensions (LxWxH) | 7.8 x 6.9 x 2.3" |
