Description
Vivotek AW-IHB-1040 Overview

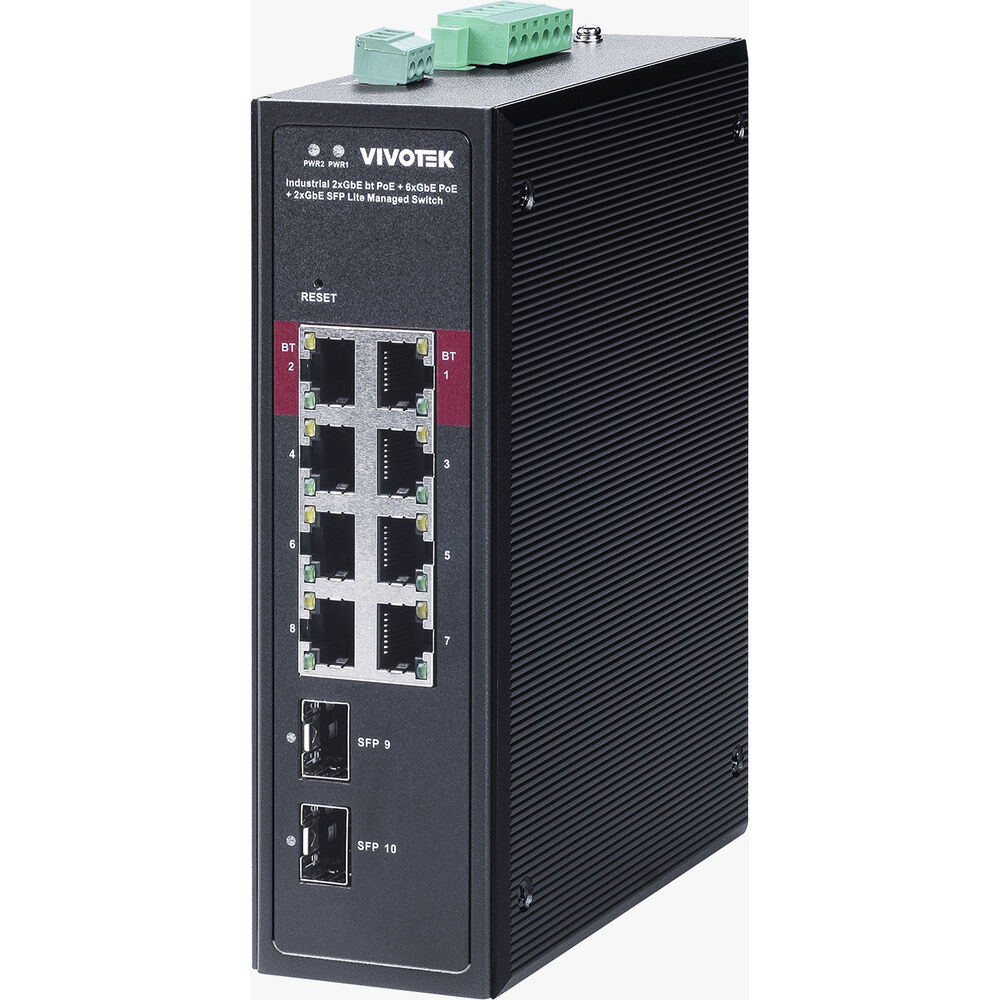

Designed for harsh environments, the Vivotek AW-IHB-1040 10-Port Gigabit PoE++ Compliant Industrial Managed Switch can operate IP cameras, access points, and other PoE compatible devices in temperatures ranging from -40 to 167°F. Two of the seven Gigabit-speed RJ45 ports provide 90W PoE++ while the remaining six deliver up to 30W with a total budget of 300W.
Two SFP ports are available for Gigabit fiber uplinks. The AW-IHB-1040 features a 20 Gb/s switching capacity and may be mounted onto a DIN-rail or wall with the included brackets and terminal blocks for power.
Items Included
- Vivotek AW-IHB-1040 10-Port Gigabit PoE++ Compliant Industrial Managed Switch
- Temperature & Humidity Sensor
- 6-Pin Terminal Block
- 3-Pin Terminal Block
- DIN Rail Bracket
- 2 x Wall Mount Bracket
- Limited 5-Year Manufacturer Warranty
Additional Resources
Vivotek AW-IHB-1040 Specs
Key Specs
| Inputs/Outputs |
2x RJ45 Gigabit Ethernet PoE++ (100 W, 802.3bt Type 4)
6x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 2x SFP Gigabit Ethernet |
| Stackable |
No
|
| Switching Bandwidth |
20 Gb/s
|
| PoE Power Budget |
300 W
|
| Stackable |
No
|
Protocols
| Supported Protocols |
Link Aggregation
Port Mirroring |
| Jumbo Frames Support |
9216 Bytes
|
| MAC Address Table Size |
4K
|
Security
| Security Features |
Storm Control
|
Performance
| Switching Bandwidth |
20 Gb/s
|
| Packet Buffer |
1.5 Mb
|
Computer
| Flash Memory |
4 MB
|
Electrical
| PoE Power Budget |
300 W
|
General
| Certifications |
CE, UKCA, FCC, VCCI
|
| Operating Conditions |
-40 to 167°F / -40 to 75°C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 185°F / -40 to 85°C
|
| Rack Mountable |
Yes
|
| Dimensions |
6.5 x 4.8 x 2.1" / 165 x 123 x 53.5 mm
|
| Weight |
2 lb / 0.9 kg
|
Packaging Info
| Package Weight |
2.355 lb
|
| Box Dimensions (LxWxH) |
9.6 x 7.5 x 4.6"
|
