Description

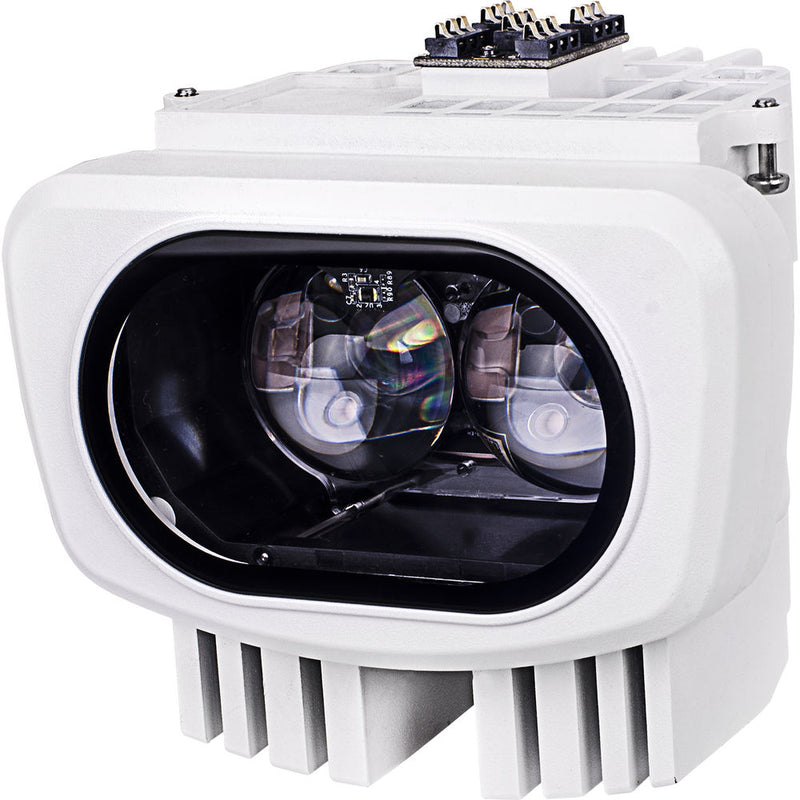

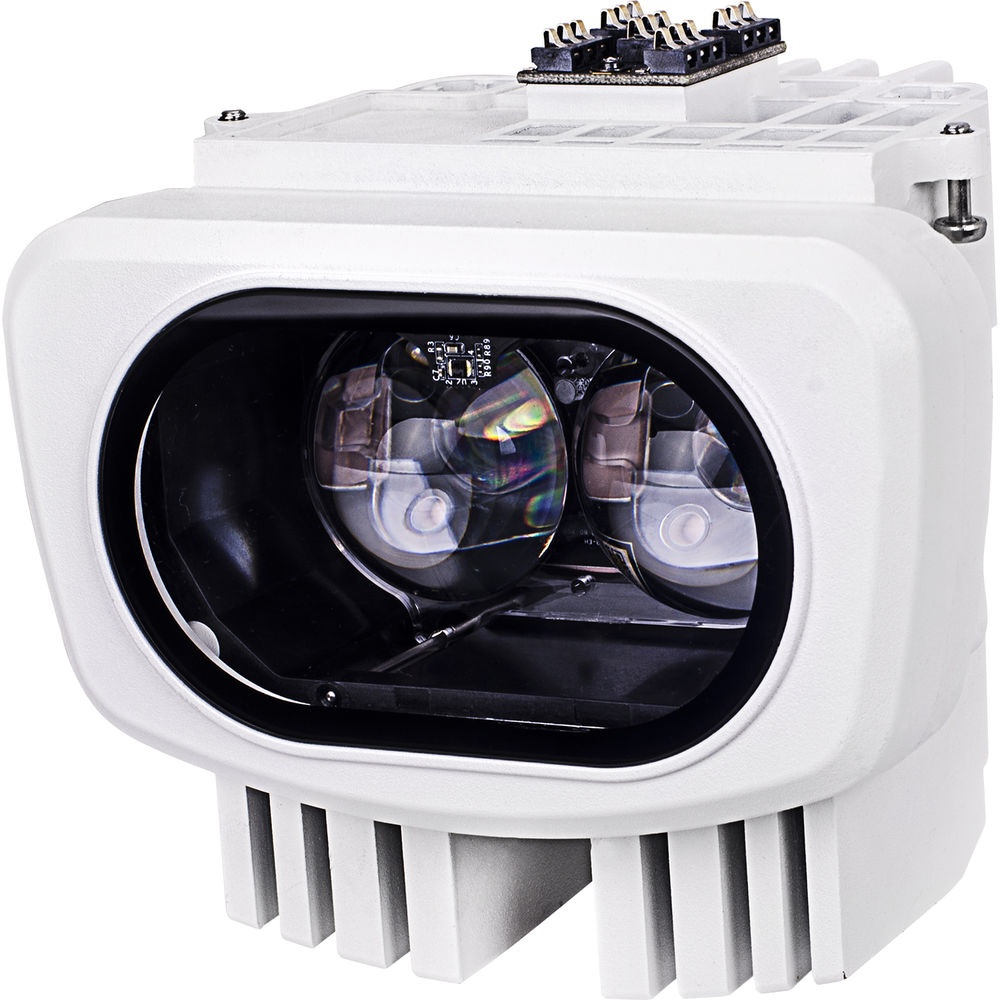

Vivotek AI-106 Overview
Compatible with select Vivotek enclosures, the AI-106 Snap-in IR Illuminator is equipped with a 2-LED array that emits IR illumination up to 328' at a wavelength of 850nm. This illuminator delivers a 10 to 40° horizontal beam angle in a circular beam pattern.
Features
- Compatible with AE-23A, AE-23B, AE-23C, AE-23D, AE-23E, and AE-23F Vivotek enclosures
- Beam angle is adjustable via DIP switch or RS-485 control
- IR on/off control
- 850nm wavelength
- 100 lux light sensor sensitivity
- Light sensor sensitivity is adjustable via RS-485 control
- ITB touch board connector
In the Box
- Vivotek AI-106 Snap-in IR Illuminator
- Limited 2-Year Manufacturer Warranty
Vivotek AI-106 Specs
| Compatibility | Supported Enclosures: AE-23A, AE-23B, AE-23C, AE-23D, AE-23E, AE-23F |
| Beam Angle | Horizontal: 10 to 40° |
| Distance | 131 to 328' / 40 to 100 m (Adjustable by DIP Switch or RS-485) |
| LED Array | 2 |
| Wavelength | 850 nm |
| Digital Input | IR On/Off Control |
| Digital Output | Trigger by Light Sensor |
| Light Sensor Sensitivity | 100 Lux (Adjustable via RS-485 Control) |
| Power Consumption | 6 W |
| Connector | ITB Touch Board |
| Operating Temperature | -40 to 122°F / -40 to 50°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Dimensions | 5.3 x 4.2 x 4.4" / 135 x 106 x 111 mm |
| Weight | 2.6 lb / 1.2 kg |
