Description
Visual Productions RdmNode Overview

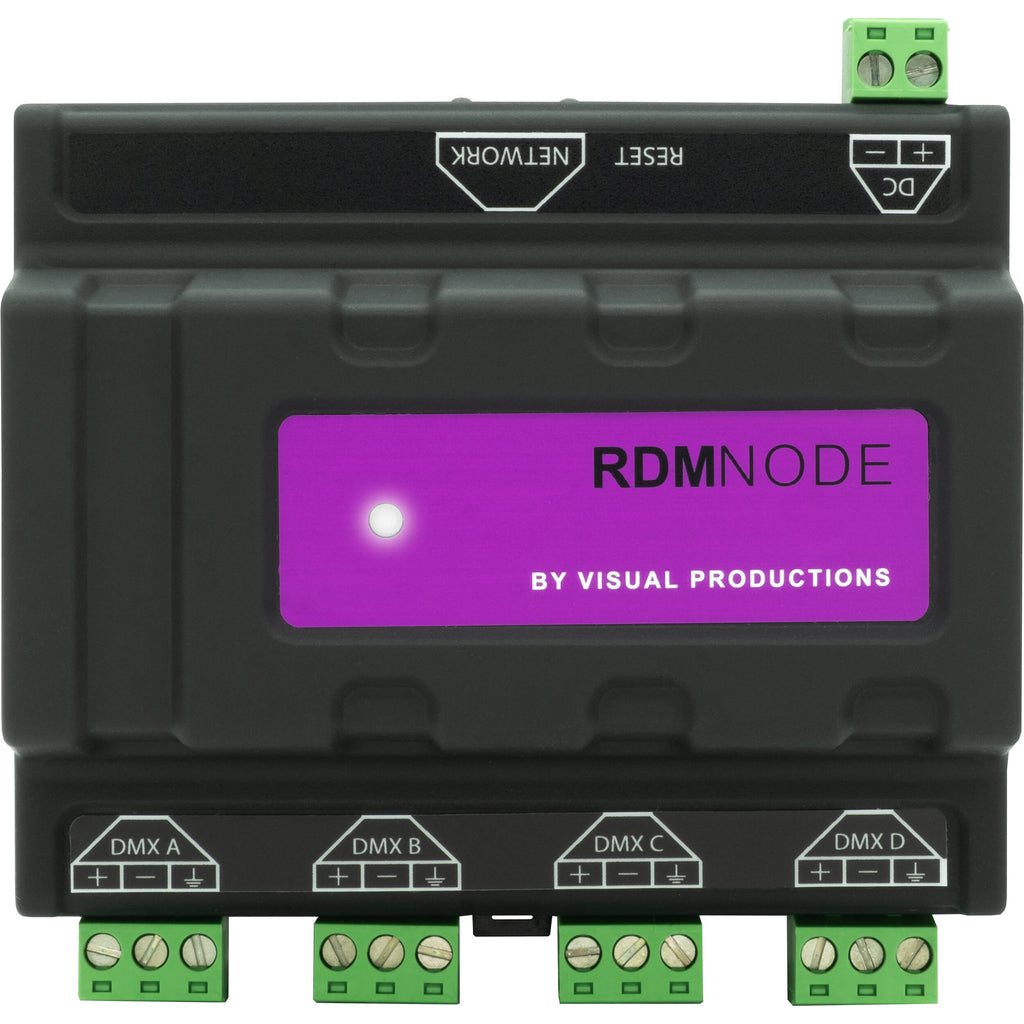

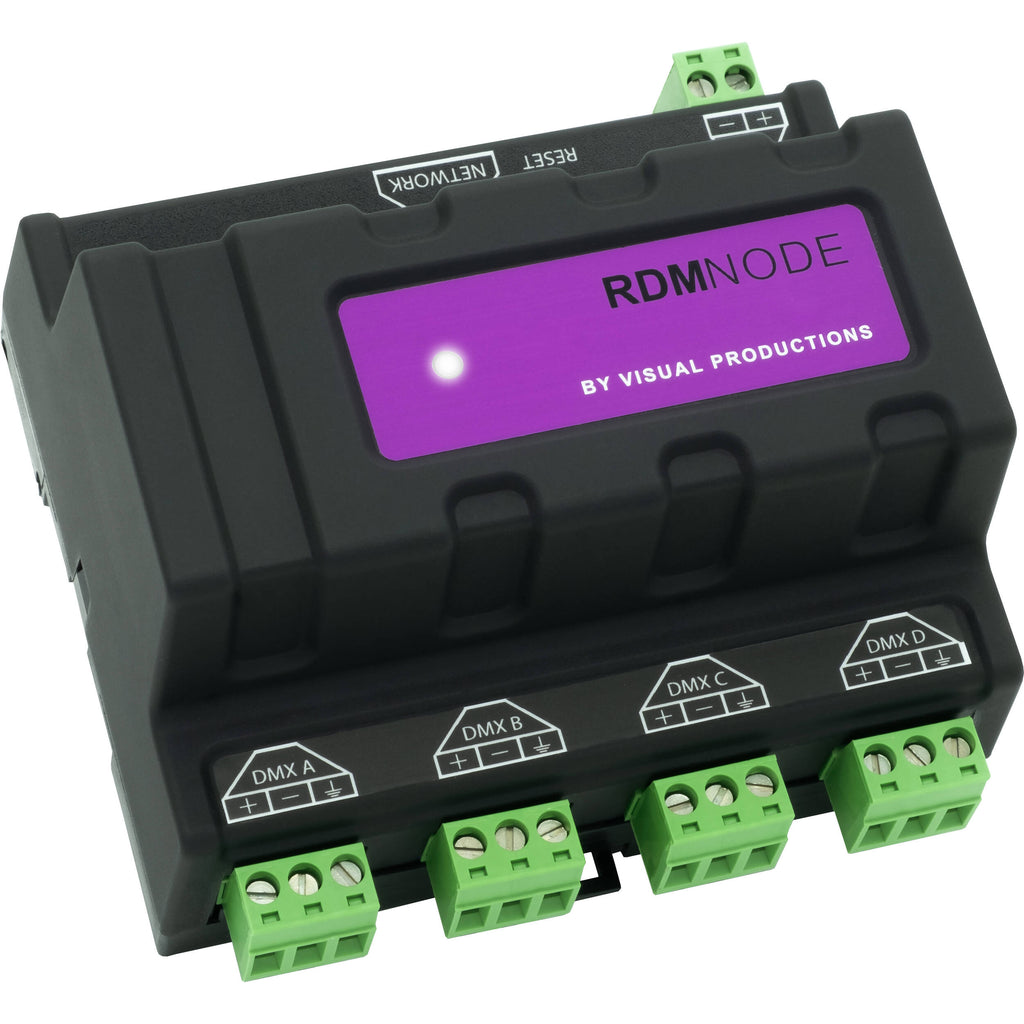

Ideal for system integration and architectural lighting projects, the RdmNode eDMX Converter from Visual Productions is a compact DIN rail-mounted device that converts Art-Net/sACN into DMX512 or the opposite way, so it functions as an Art-Net/sACN to DMX512 or DMX512 to Art-Net/sACN interface. With four DMX512 ports and one Ethernet port, the RdmNode also offers RDM support over Art-Net to handle bidirectional fixture data.

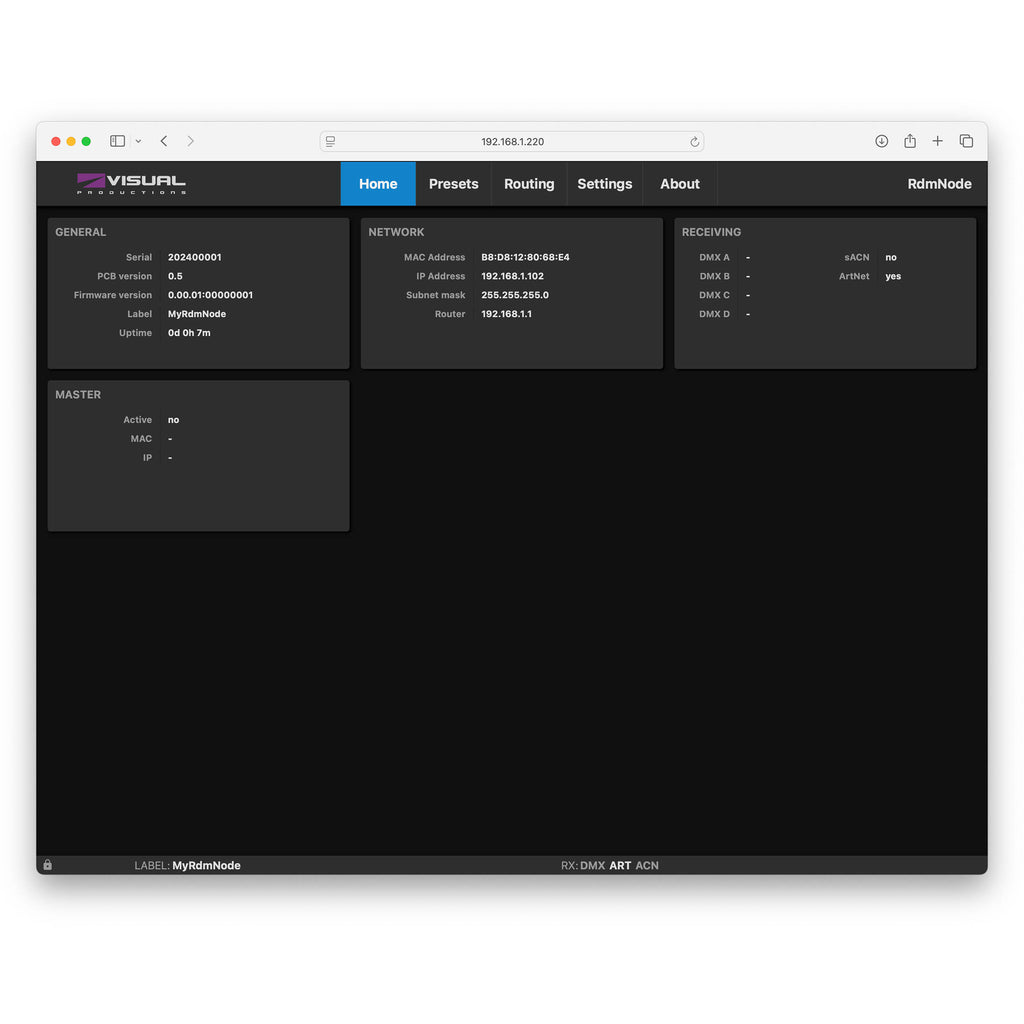

Web Interface Programming

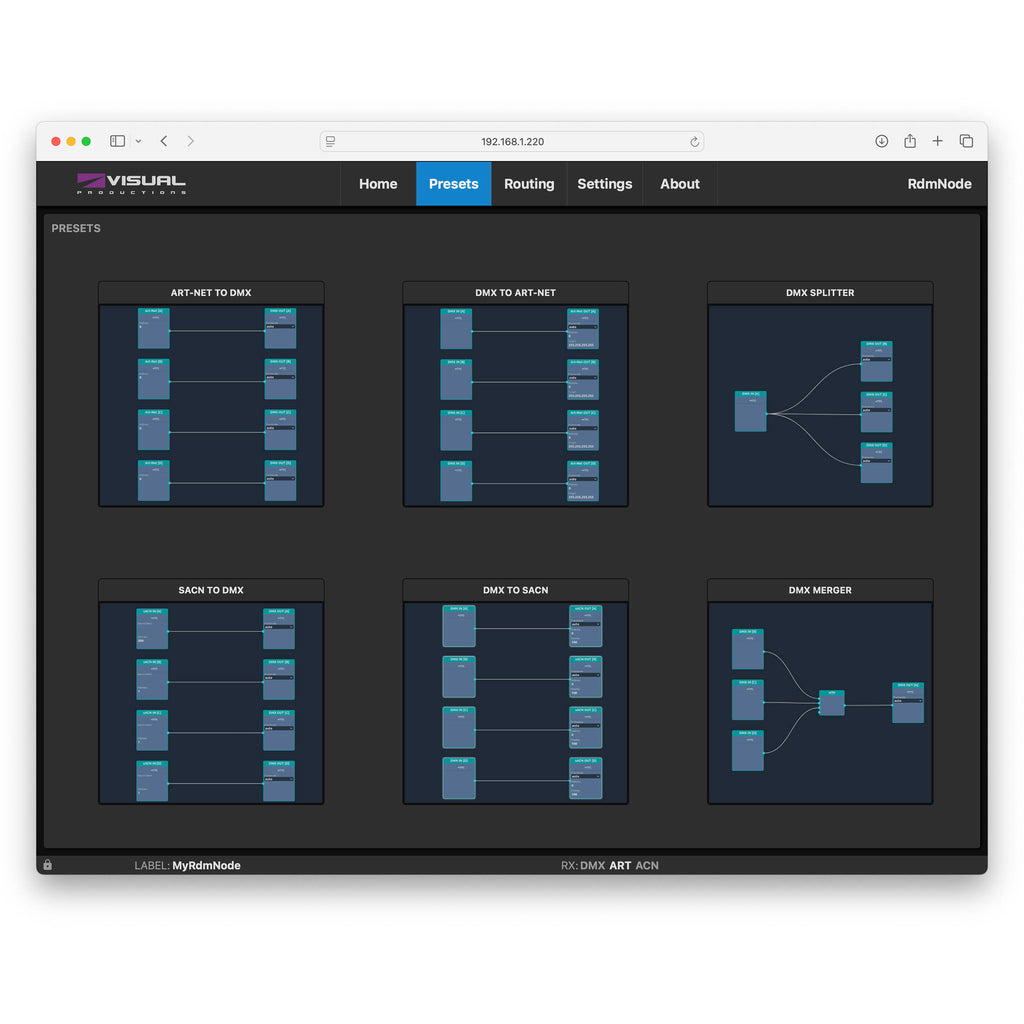

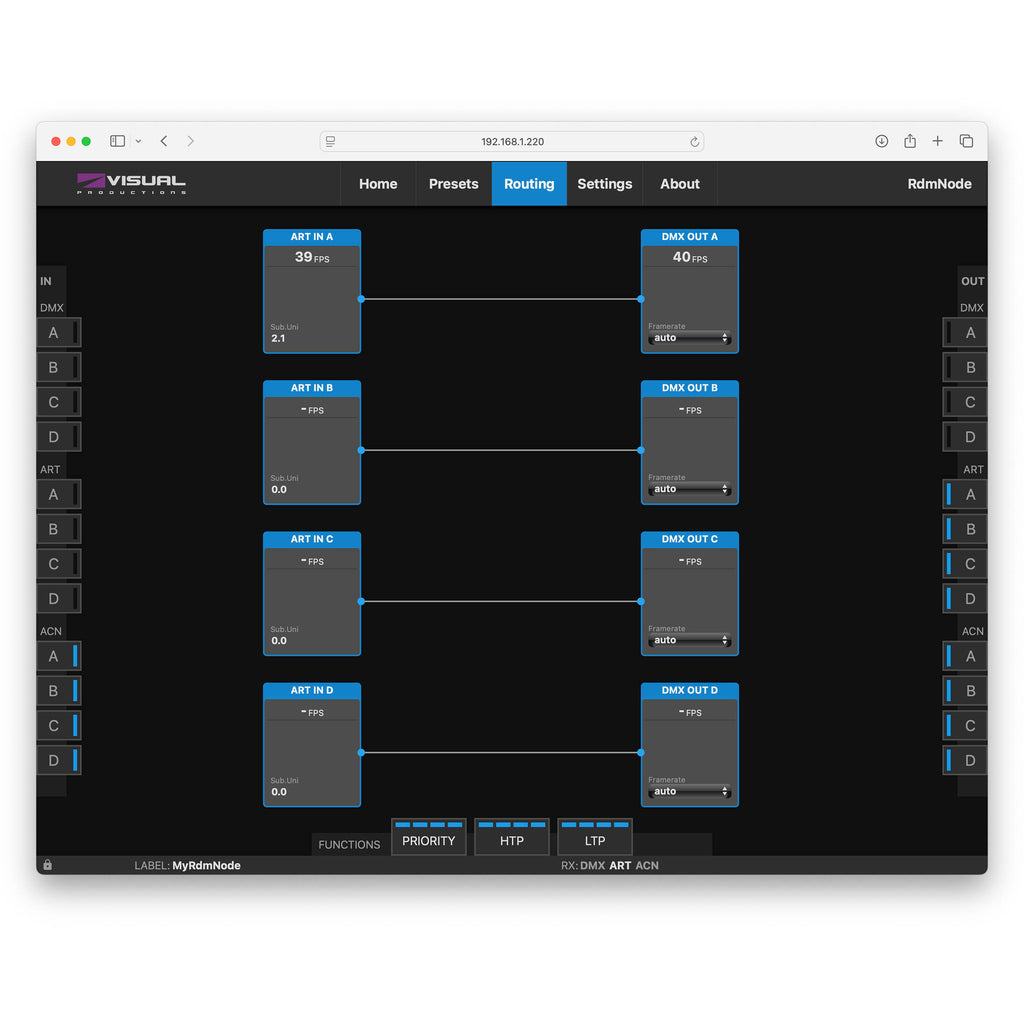

The RdmNode's drag-and-drop web interface simplifies configuration of data routing and merging processes, as well as port settings. Quickly access Factory or User presets to achieve effortless data conversion.
CueCore3 Compatibility
Combine this unit with the Visual Productions CueCore3 control system to unlock four additional universes.
Additional Details

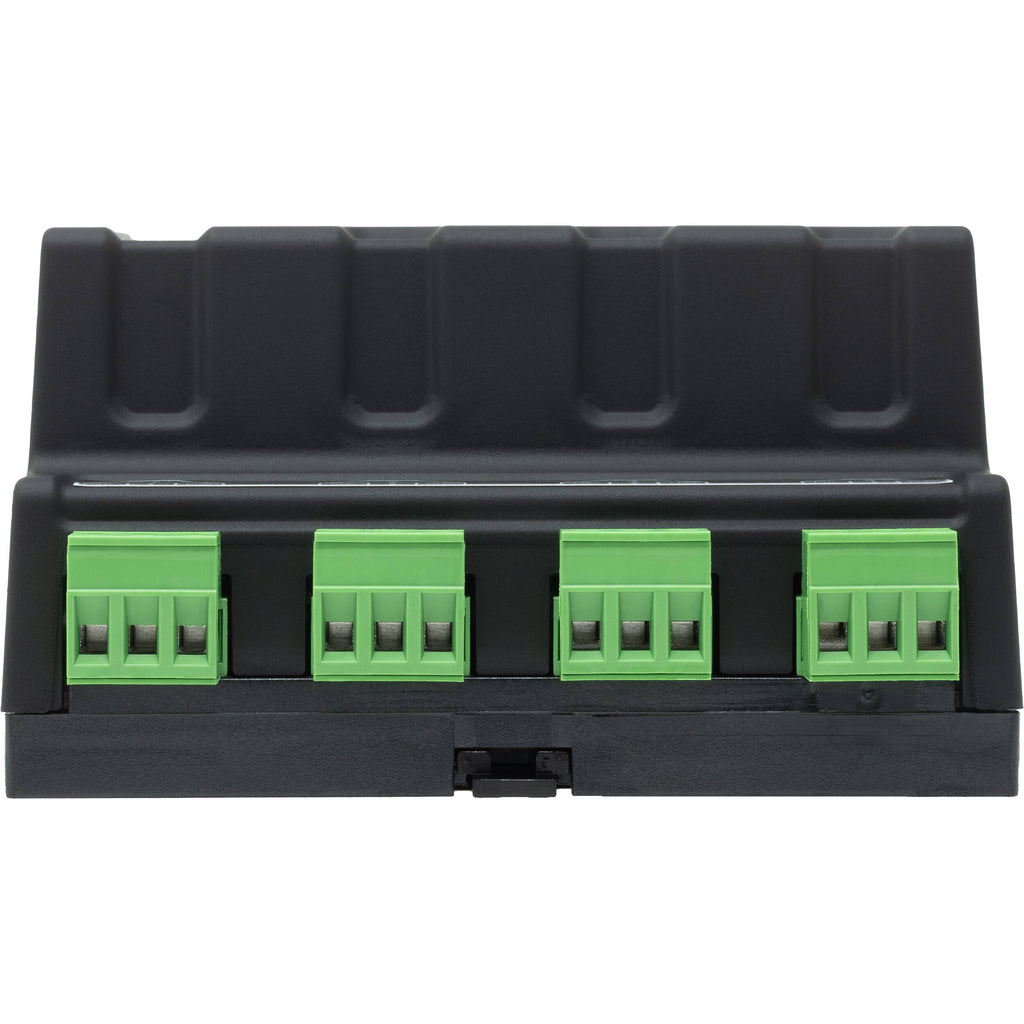

- Four opto-isolated bidirectional DMX512 ports
- 9-24 VDC power consumption
- Power over Ethernet (class I)
- CE, ROHS, and UKCA compliance
Items Included
- Visual Productions RdmNode eDMX Converter (4-Port)
- Network Cable (3.3')
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Visual Productions RdmNode Specs
Key Specs
| Inputs/Outputs |
4x Terminal (DMX) Input/Output
1x Terminal (Power) Input 1x RJ45 (Power and Data) Input |
| Power Source |
AC Adapter
|
| Protocol |
ArtNet, DMX512, RDM, sACN
|
General
| Inputs/Outputs |
4x Terminal (DMX) Input/Output
1x Terminal (Power) Input 1x RJ45 (Power and Data) Input |
| Dimming |
Optional
|
| Cooling System |
No
|
Power
| Power Source |
AC Adapter
|
| Input Power |
9 to 24 VDC
|
| PoE Port Power |
Yes
|
Compatibility
| Protocol |
ArtNet, DMX512, RDM, sACN
|
Physical
| Operating Conditions |
-4 to 122?F / -20 to 50?C at 10 to 80% Humidity
|
| Certifications |
CE, RoHS, UKCA
|
| Environmental Resistance |
No
|
| Dimensions |
4.1 x 4.4 x 2.3" / 10.4 x 11.2 x 5.8 cm
|
