Description

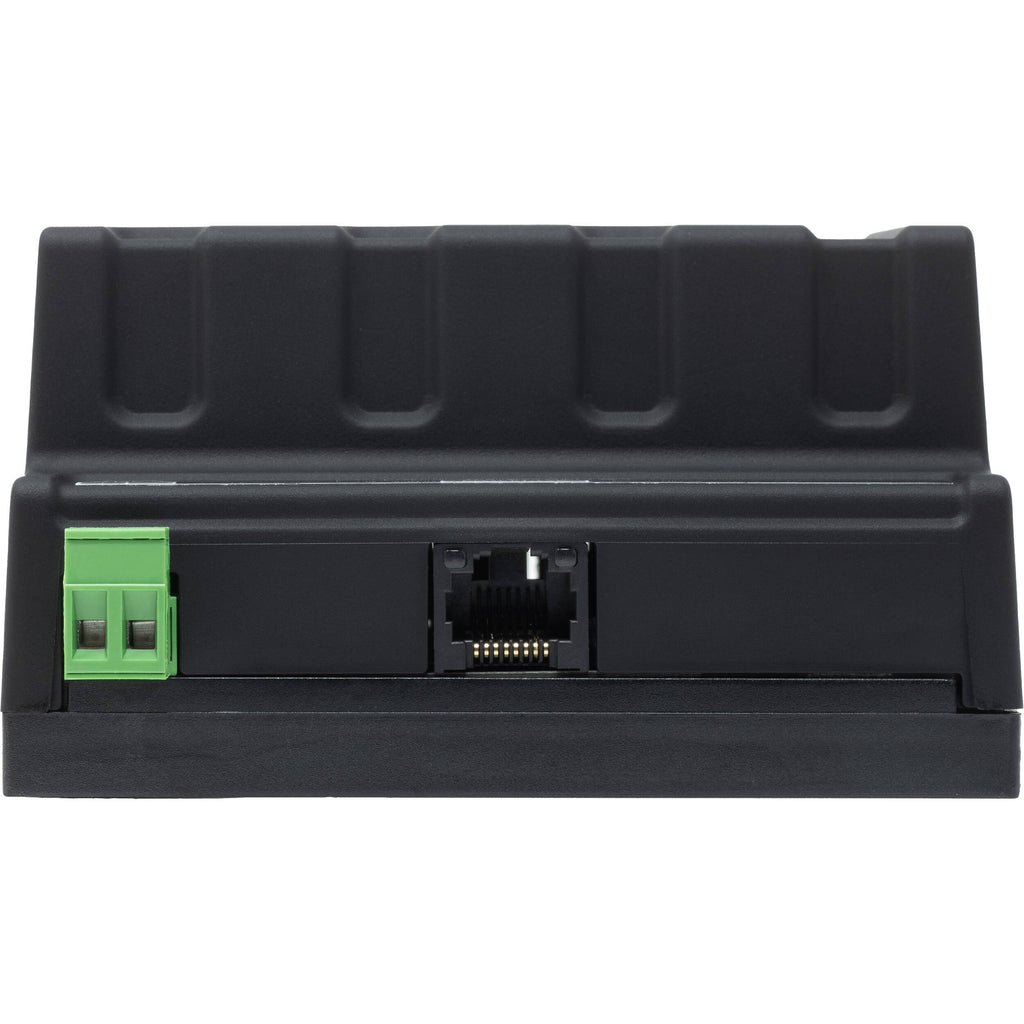

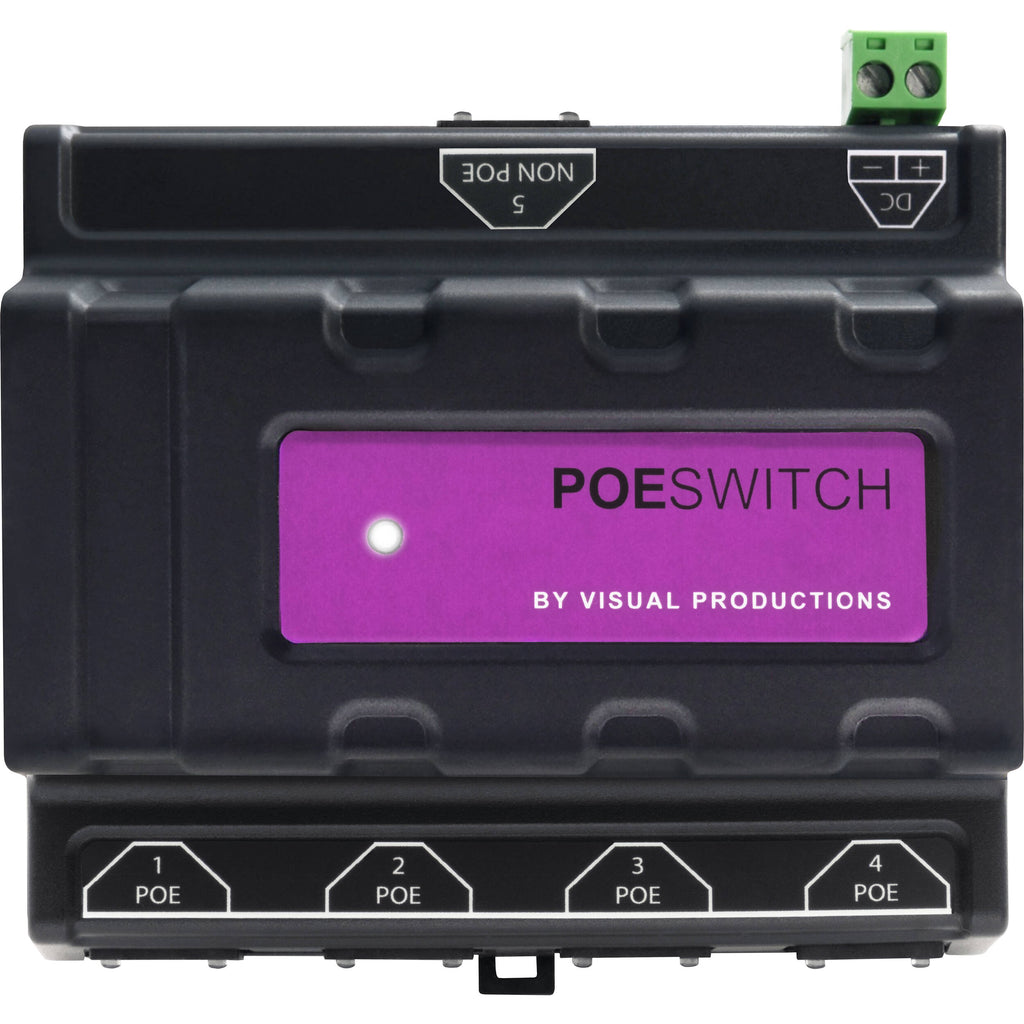

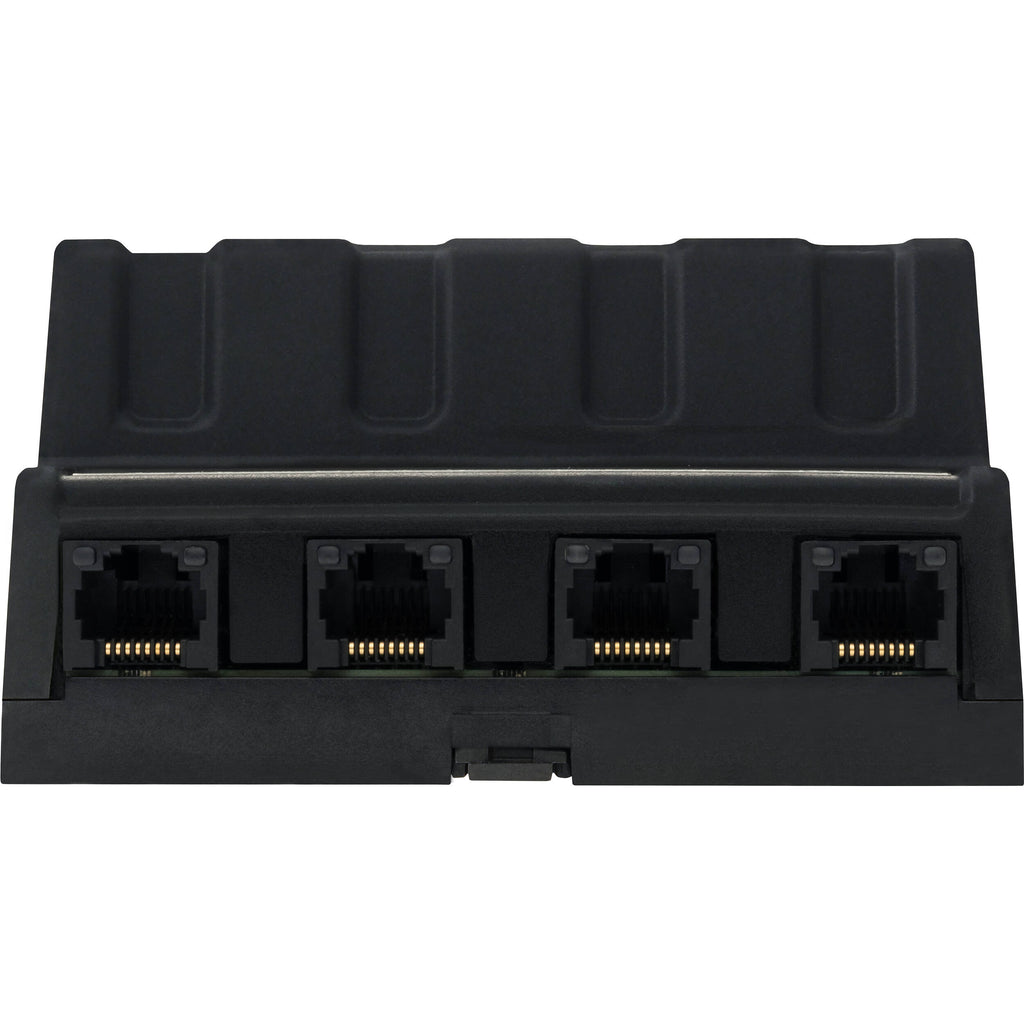

Visual Productions PoeSwitch Overview
Quickly connect four Power over Ethernet (PoE) ports to Visual Productions's controllers using the PoeSwitch Unmanaged PoE Network Switch. This plug-and-play unmanaged network switch is ideal for those working with small to medium-sized lighting control systems. The PoeSwitch offers quick and seamless integration into the network settings with a fanless design for silent operation. Transfer data and power using a single optional cable.
PoE Capability
The PoeSwitch supports PoE power up to 15.4W for each PoE port with a total PoE budget of approximately 60W.
DIN Rail Mounting
DIN rail mounting easily integrates DIN rail-based electrical cabinets.
Additional Details
- Four 10/100 Mb/s PoE ports
- Single 1 Gb/s uplink port
- IPv4/IPv6 quality of service
- IEEE 802.3af compliant PD
- 48 VDC and optional PSU
- CE, RoHS, and UKCA compliance
Items Included
- Visual Productions PoeSwitch Unmanaged PoE Network Switch (4-Port)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Visual Productions PoeSwitch Specs
Key Specs
| Inputs/Outputs |
4x RJ45 (10/100 Ethernet)
1x RJ45 (Gigabit Ethernet) 1x Terminal (Power) Input |
| Power Source |
AC Adapter
|
General
| Inputs/Outputs |
4x RJ45 (10/100 Ethernet)
1x RJ45 (Gigabit Ethernet) 1x Terminal (Power) Input |
| Dimming |
No
|
| Cooling System |
No
|
Power
| Power Source |
AC Adapter
|
| Power Consumption |
60 W
|
| Input Power |
48 VDC
|
| PoE Port Power |
60 W
|
Physical
| Operating Conditions |
-4 to 122?F / -20 to 50?C at 10 to 80% Humidity
|
| Certifications |
CE, RoHS, UKCA
|
| Environmental Resistance |
No
|
| Dimensions |
4.1 x 4.1 x 2.3" / 10.4 x 10.4 x 5.8 cm
|
