Description

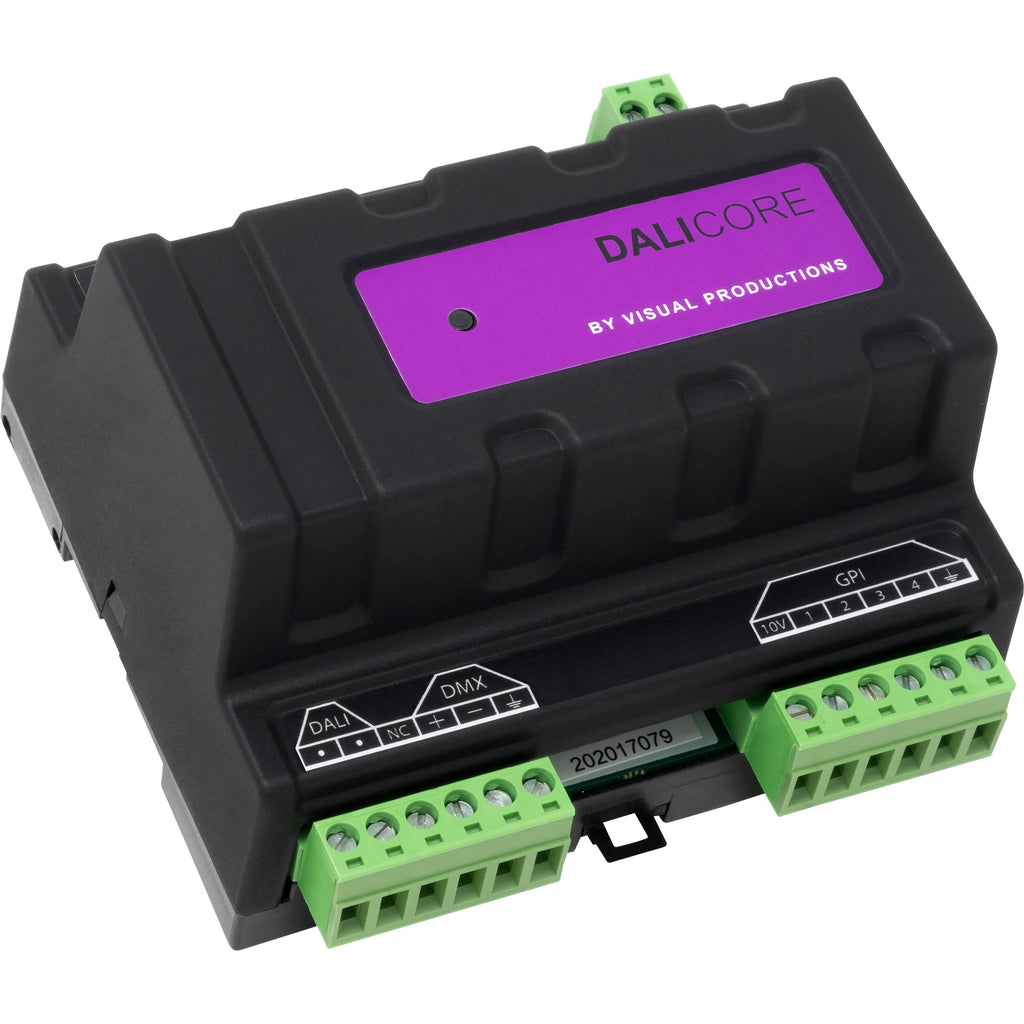

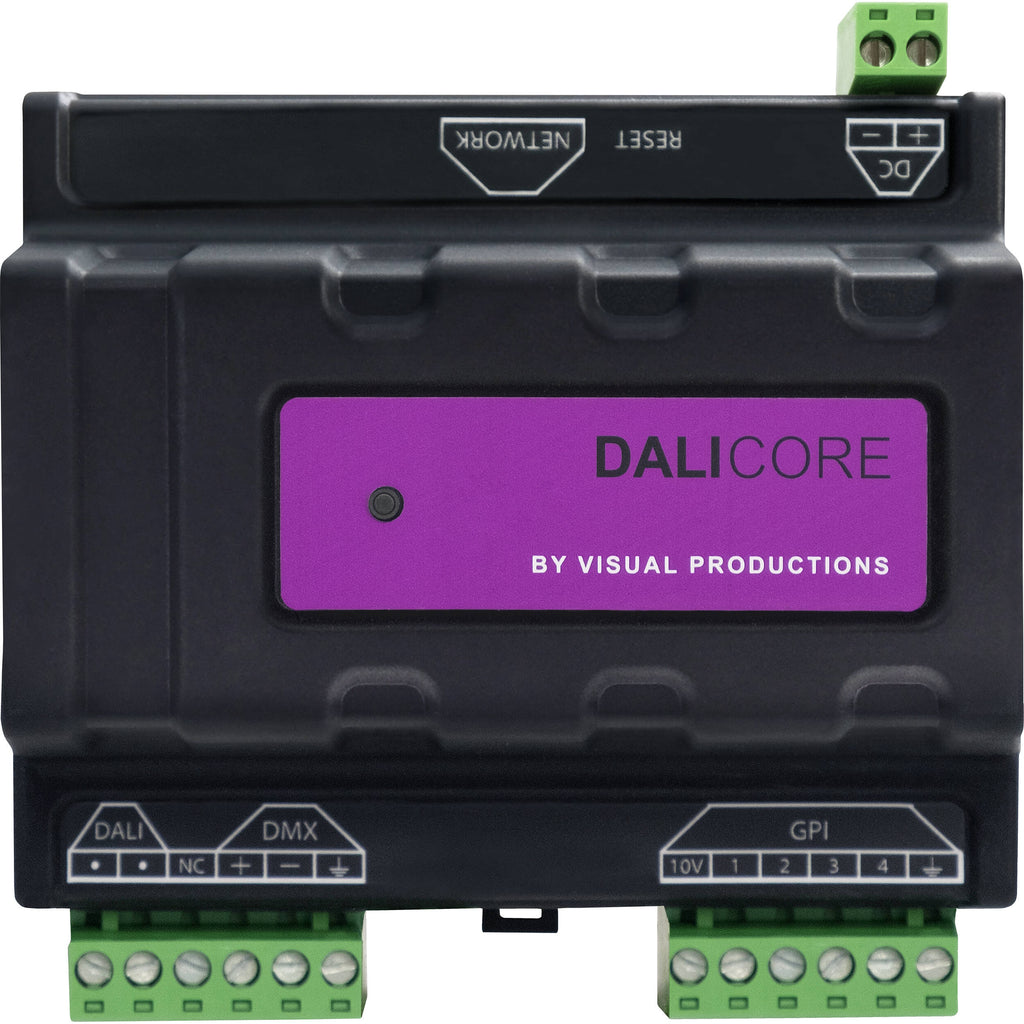

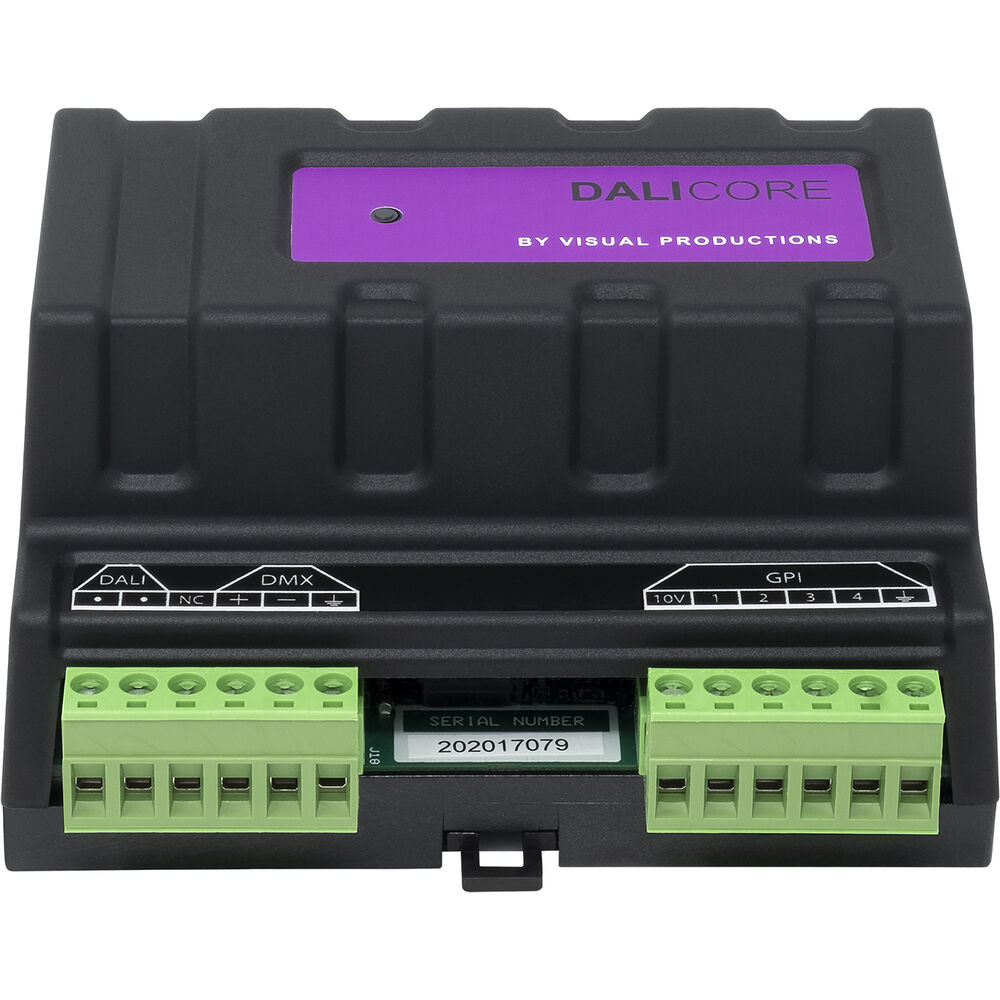

Visual Productions DaliCore Overview
For DMX and DALI projects, the DaliCore DALI & DMX Hybrid Lighting Controller from Visual Productions is a lighting controller that incorporates the DALI protocol and DMX settings for the architainment industry?covering both architecture and entertainment purposes.
DALI Control & Various Protocols
The DaliCore is ideal for a stand-alone DALI (DT6 and DT8) installation, but also enables control of up to 64 DALI fixtures. Use it to receive popular entertainment protocols, such as DMX, Art-Net, or sACN, and trigger the necessary DALI control message, which enables smooth dimming curves.
DMX Control
Use the DaliCore DMX port for conversion that facilitates hybrid DALI and DMX installations. Select scenes that comprise both DALI and DMX fixtures, featuring RDM support, configure up to 32 DMX-compatible lights.
Compatibility
Extend your lighting system by incorporating the DaliCore in DALI networks. This unit works with other optional Visual Productions products, offering seamless connection to the B-Station button panel, the Kiosc customizable GUI app, the Kiosc Touch wall-mount touch screen, or the CueCore2 advanced DMX controller.
Additional Details
- DALI port for up to 64 fixtures
- DT8
- DMX512 optically isolated port with RDM support for up to 32 fixtures
- Four GPI ports with contact-closure or 0-10V
- Ethernet, UDP, TCP (in), OSC, Art-Net, and sACN
- DIN rail mounted

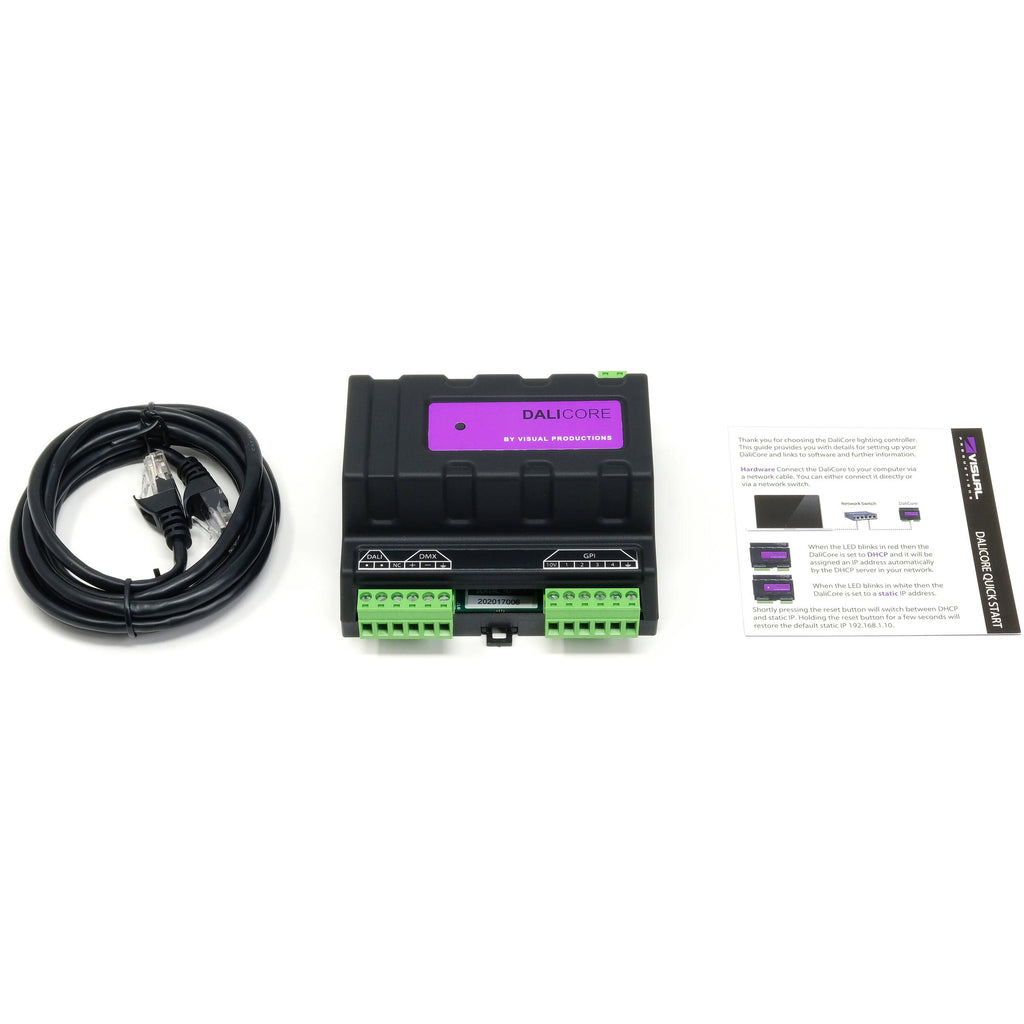

Items Included
- Visual Productions DaliCore DALI & DMX Hybrid Lighting Controller
- UTP Network Cable
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Visual Productions DaliCore Specs
Key Specs
| Inputs/Outputs |
1x Terminal (Power) Input
1x RJ45 (Power and Data) Input 1x Terminal (Remote) Input/Output 1x Terminal (DMX) Input/Output |
| Power Source |
AC Adapter
|
| Protocol |
ArtNet, DALI, DHCP, DMX512, OSC, RDM, sACN, TCP, UDP
|
General
| Inputs/Outputs |
1x Terminal (Power) Input
1x RJ45 (Power and Data) Input 1x Terminal (Remote) Input/Output 1x Terminal (DMX) Input/Output |
| Dimming |
Optional
|
| Cooling System |
No
|
Power
| Power Source |
AC Adapter
|
| Input Power |
9 to 24 VDC
|
| PoE Port Power |
Yes
|
Compatibility
| Protocol |
ArtNet, DALI, DHCP, DMX512, OSC, RDM, sACN, TCP, UDP
|
Physical
| Operating Conditions |
-4 to 122?F / -20 to 50?C
|
| Certifications |
CE, FCC, RoHS, UKCA
|
| Environmental Resistance |
No
|
| Dimensions |
4.1 x 4.1 x 2.3" / 10.4 x 10.4 x 5.8 cm
|
