Description
Visual Productions Wall-Mount Panel Overview

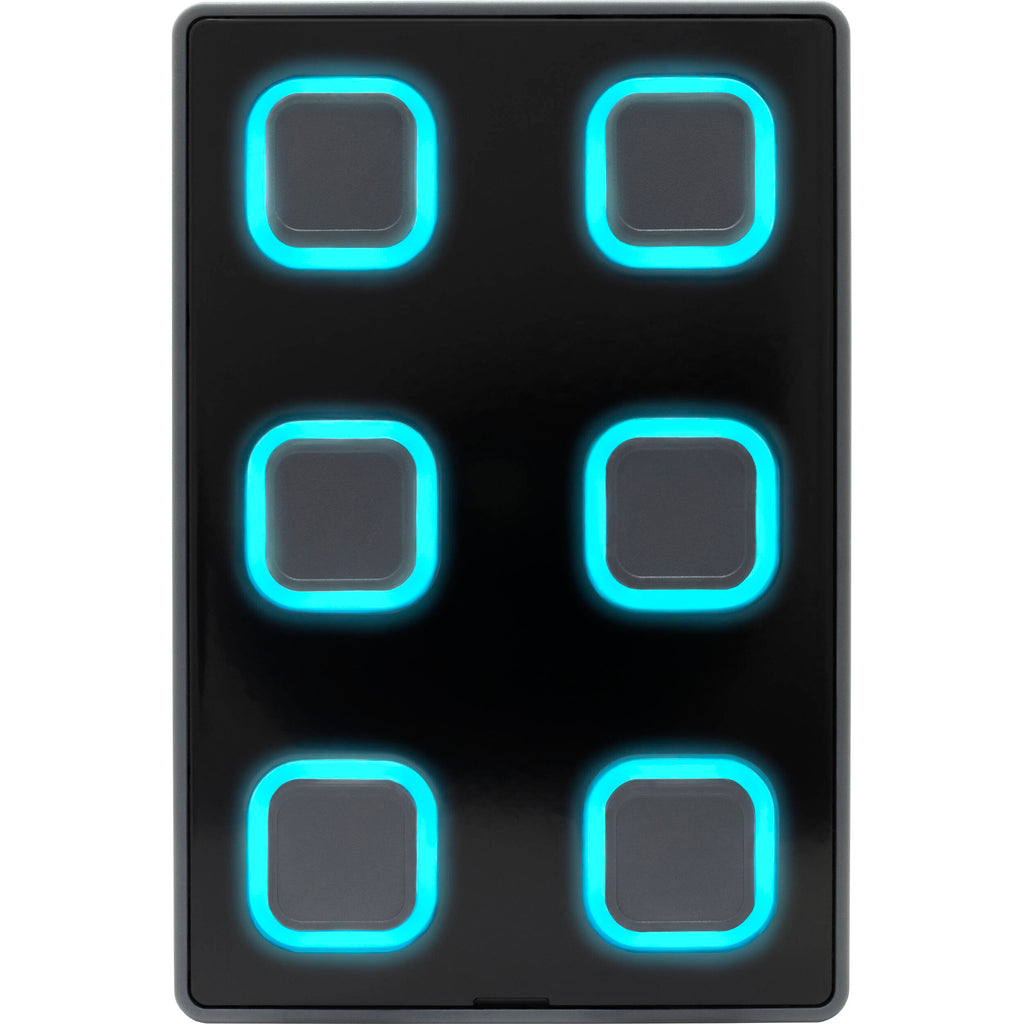

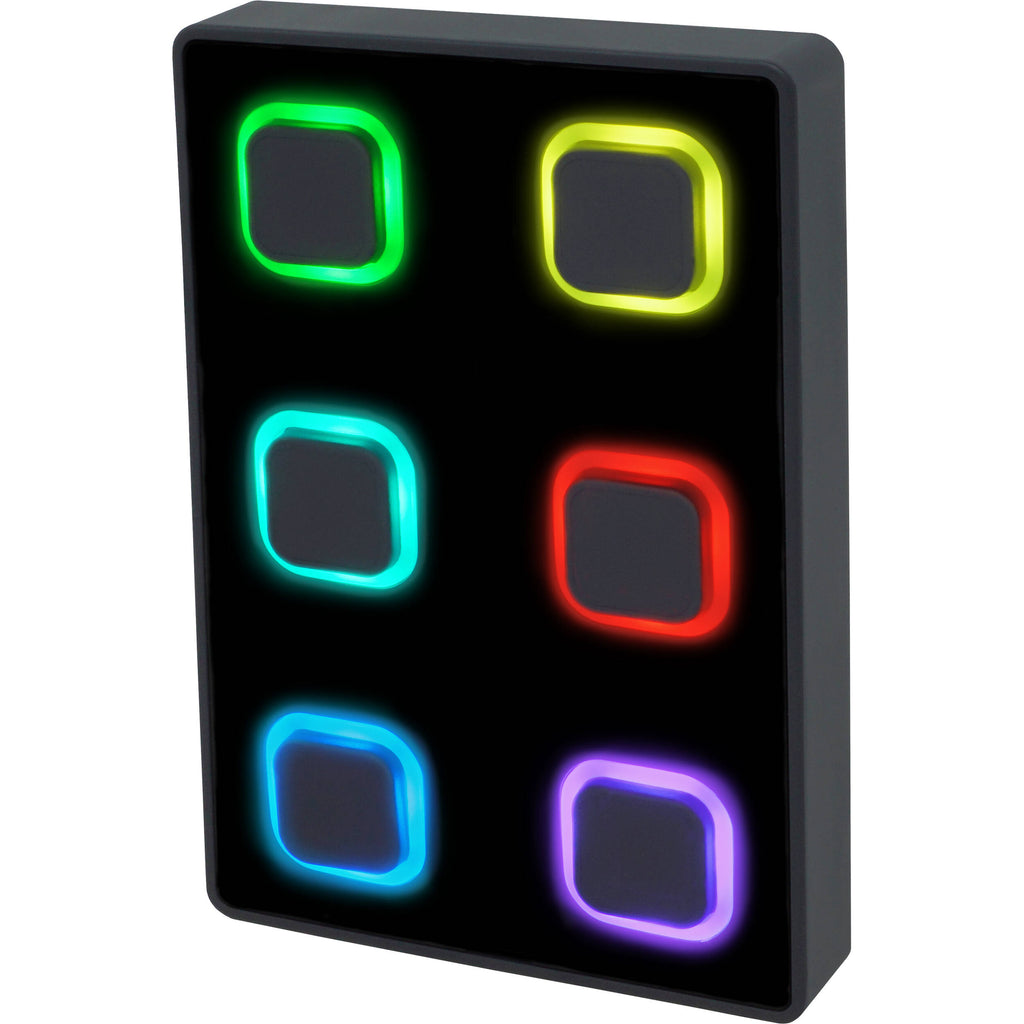

The B-Station2 Lighting Controller from Visual Productions is a wall-mount button panel featuring six push buttons equipped with RGB LED rings. It allows you to design a dynamic and intuitive user-interface where the colors of the LED rings indicate the function of the buttons. It can be used to trigger presets programmed into a CueCore2 or LPU-2 controller. The CueCore will use the LED rings to indicate which preset is active. The B-Station2 supports open communication protocols such as OSC, UDP, TCP, sACN, and Art-Net. This makes it an ideal remote control for system integration, as it can be connected to third-party AV equipment, such as audio, video, or show control systems. With playbacks, cues, a patch and a small FX-engine, this device can act as standalone DMX lighting controller or be networked together with other B-Station2 units.
Items Included
- Visual Productions B-Station2 Wall-Mount Panel
- UTP Network Cable
- 3 x Sheet with Adhesive Icons
- Limited 5-Year Manufacturer Warranty
Additional Resources
Visual Productions Wall-Mount Panel Specs
| Inputs/Outputs |
1x Terminal 3-Pin (DMX) Input/Output
1x RJ45 (Power and Data) Input/Output |
| Channels |
512 (DMX)
|
| Protocol |
ArtNet, DHCP, DMX512, OSC, RDM, sACN, TCP, UDP
|
| Inputs/Outputs |
1x Terminal 3-Pin (DMX) Input/Output
1x RJ45 (Power and Data) Input/Output |
| Channels |
512 (DMX)
|
| Dimming |
Optional
|
| Cooling System |
No
|
| PoE Port Power |
Yes
|
| Protocol |
ArtNet, DHCP, DMX512, OSC, RDM, sACN, TCP, UDP
|
| Operating Conditions |
-4 to 122?F / -20 to 50?C
|
| Certifications |
CE, EAC, EN55103-1, EN55103-2, FCC, UKCA
|
| Environmental Resistance |
No
|
| Dimensions |
5.3 x 3.5 x 1.2" / 13.5 x 8.9 x 3.0 cm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
