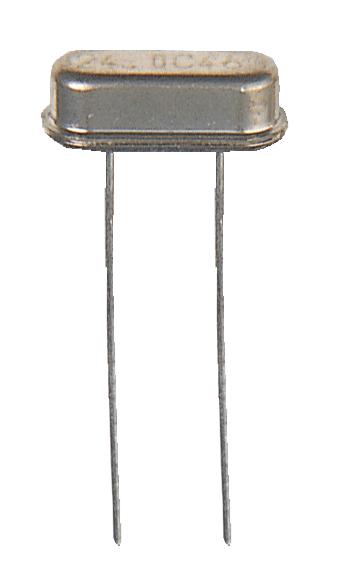

The XT49S-204M is a 11 x 4.65mm 30 and 50ppm low profile holder type Crystal Unit with excellent aging. The XT49S series miniature AT-cut strip crystal with resistance welded.
- Fundamental operation mode
- 200R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 500µW Maximum drive level
Applications
Clock & Timing
Product details
| Frequency Nom |
4MHz |
| Crystal Case |
Through Hole, 11mm x 4.65mm |
| Frequency Stability + / - |
50ppm |
| Load Capacitance |
20pF |
| Frequency Tolerance + / - |
30ppm |
| Product Range |
XT49S Series |
| Operating Temperature Min |
-10°C |
| Operating Temperature Max |
70°C |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
VISHAY |
| Part Number |
XT49S-204M |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
