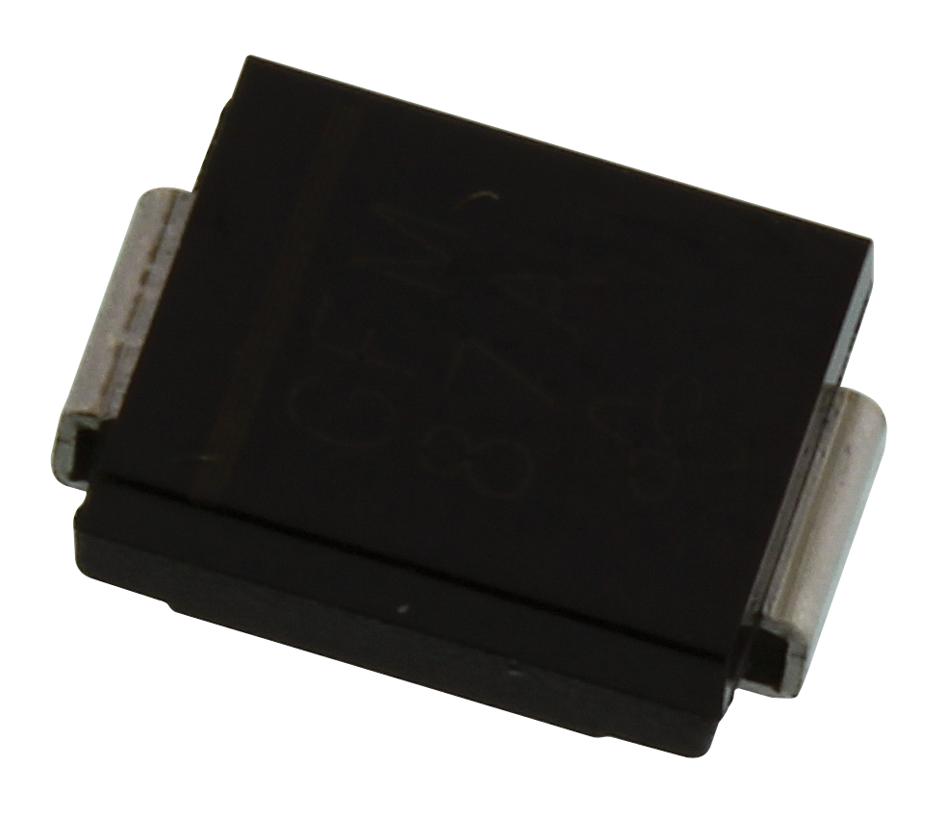

XMC7K24CA-M3/I is a surface mount XClampR� transient voltage suppressor. Typical application includes use in sensitive electronics protection against voltage transients induced by inductive load switch and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication. UL recognition for safety 497B with file number E136766.
- High temperature stability and high reliability conditions
- XClampR� extremely low clamping voltage, IPPM = 180A with a 10/1000µs waveform
- TJ = 175°C capability suitable for high reliability and automotive requirement, bidirectional
- Low leakage current
- Stand-off voltage is 24V
- Maximum working stand-off voltage is 24V
- Breakdown voltage range from 26.7V to 29.5V
- Test current is 1mA
- Operating junction temperature range from -55 to +175°C, package is SMC (DO-214AB)
- 24V maximum clamping voltage for 10/1000µs exponentially decaying waveformat IPP = 180A
Other details
| Brand |
VISHAY |
| Part Number |
XMC7K24CA-M3/I |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
