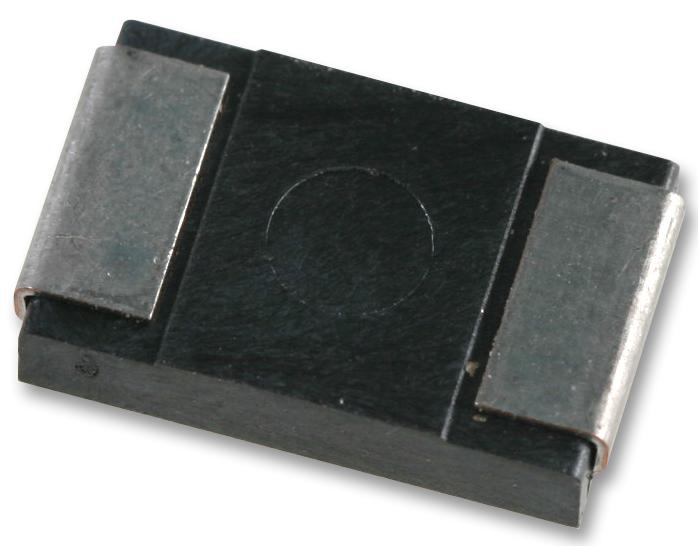

Vishay WSR5R2000FEA SMD Current Sense Resistor 0.2 ohm WSR 4527 [11470 Metric] 5 W ± 1% Metal Strip

The Vishay WSR5 series are surface mount, power metal strip resistors. The WSR5 series have a low resistance values ranging from 1mohm to 0.3ohm and high power rating of 5W. These resistors use solid metal nickel-chrome or manganese copper alloy as a resistive element with low TCR. The WSR5 series are ideal for all types of current sensing, voltage division and pulse applications.

• Automotive grade AEC-Q200 qualified
• Compact 4527 package size
• ±0.5% and ±1% tolerance
• Moulded high temperature encapsulation
• Very low inductance 0.5nH to 5nH
• Excellent frequency response to 50MHz
• Low thermal EMF (< 3µV/°C)
• Operating temperature range -65°C to +275°C
• High Power Resistor

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	VISHAY
Part Number	WSR5R2000FEA
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
