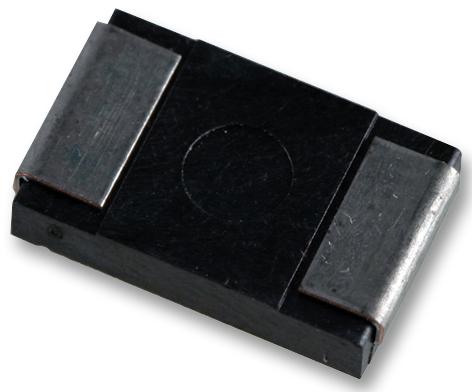

Vishay WSR3R2000FEA SMD Current Sense Resistor 0.2 ohm WSR Series 4527 [11470 Metric] 3 W ± 1% Metal Strip

The Vishay WSR3 series are surface mount, power metal strip resistors. The WSR3 series have a low resistance values ranging from 1mohm to 0.2ohm and power rating of 3W. These resistors use solid metal nickel chrome or manganese copper alloy as a resistive element with low TCR. The WSR3 series are ideal for all types of current sensing, voltage division and pulse applications.

• Automotive grade AEC-Q200 qualified
• Compact 4527 package size
• ±0.5% and ±1% tolerance
• Moulded high temperature encapsulation
• Very low inductance 0.5nH to 5nH
• Excellent frequency response to 50MHz
• Low thermal EMF (< 3µV/°C)
• ±750ppm/°C, ±600ppm/°C, ±450ppm/°C, ±300ppm/°C, ±110ppm/°C, ±75ppm/°C TCR values available
• Operating temperature ranges from -65°C to +275°C
• Resistant to thermal and mechanical shock, extreme temperatures, humidity and vibration

Applications

Industrial, Consumer Electronics, Portable Devices, Power Management, Automotive

Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product details

Resistance	0.2ohm
Product Range	WSR Series
Resistor Case Style	4527 [11470 Metric]
Power Rating	3W
Resistance Tolerance	± 1%
Resistor Element Type	Metal Strip
Temperature Coefficient	± 75ppm/°C
Automotive Qualification Standard	AEC-Q200

Other details

Brand	VISHAY
Part Number	WSR3R2000FEA
Quantity	Each (Supplied on Cut Tape)
