Product details
| Resistance:
50µohm
|
| Product Range:
WSBS8536 Series
|
| Resistor Case / Package:
3314 [8536 Metric]
|
| Power Rating:
50W
|
| Resistance Tolerance:
± 5%
|
| Resistor Technology:
Metal Strip
|
| Temperature Coefficient:
± 175ppm/°C
|
| Product Length:
85mm
|
| Product Width:
36mm
|
| Product Height:
3mm
|
| Operating Temperature Min:
-65°C
|
| Operating Temperature Max:
170°C
|
| Qualification:
-
|
Other details
| Brand |
VISHAY |
| Part Number |
WSBS8536L0500JK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

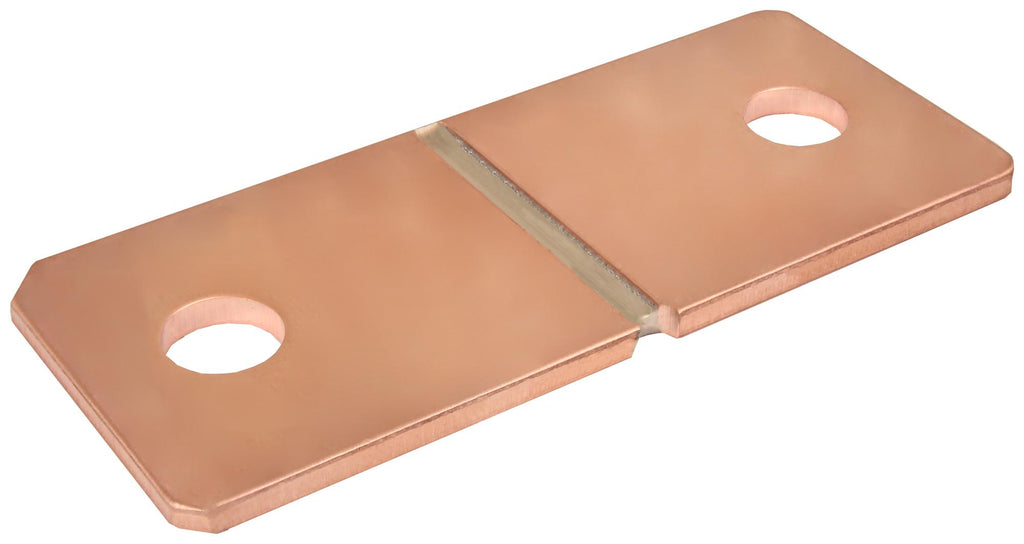

![VISHAY WSBS8536L0500JK SMD Current Sense Resistor, 50 µohm, WSBS8536 Series, 3314 [8536 Metric], 50 W, ± 5%, Metal Strip](http://www.tanotis.com/cdn/shop/files/a100569793f011d7b7c9f10673046051_2f99dc07-06f2-4458-8f52-69ce1d1fda8f_{width}x.jpg?v=1706937889)
