Product details
| Resistance:
100µohm
|
| Product Range:
WSBE Series
|
| Resistor Case / Package:
3307 [8518 Metric]
|
| Power Rating:
36W
|
| Resistance Tolerance:
± 5%
|
| Resistor Technology:
Metal Strip
|
| Temperature Coefficient:
± 10ppm/°C
|
| Product Length:
85mm
|
| Product Width:
18mm
|
| Product Height:
3mm
|
| Operating Temperature Min:
-65°C
|
| Operating Temperature Max:
170°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
VISHAY |
| Part Number |
WSBE8518L1000JKB2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

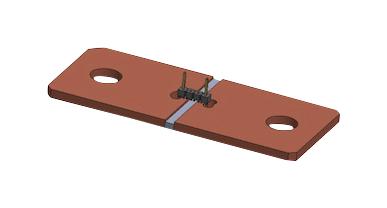

![VISHAY WSBE8518L1000JKB2 SMD Current Sense Resistor, 100 µohm, WSBE Series, 3307 [8518 Metric], 36 W, ± 5%, Metal Strip](http://www.tanotis.com/cdn/shop/files/e7b2fe32de2c2ecf821d3c708c8a36e9_cefb54f9-edf9-4210-93e1-b08a9561f984_{width}x.jpg?v=1706943805)
