Description

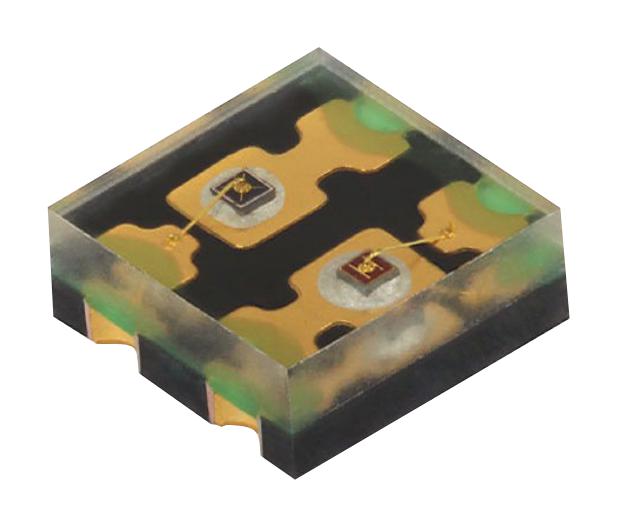

This is a VSMD66694 Infrared Emitter , 660 nm, 60 °, SMD, 10 mW/Sr, 10 ns, 10 ns product from VISHAY with the model number VSMD66694
Product details
| Viewing Angle | 120° |
| Peak Wavelength | 660nm |
| Diode Case Style | SMD |
| Angle of Half Intensity | 60° |
| Forward Current If(AV) | 20mA |
| Forward Voltage VF Max | 1.4V |
| Radiant Intensity (Ie) | 10mW/Sr |
| Rise Time | 10ns |
| Fall Time tf | 10ns |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | VISHAY |
| Part Number | VSMD66694 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
