Product details
| Resistance:
100kohm
|
| Resistance Tolerance:
± 0.1%
|
| Power Rating:
200mW
|
| Resistor Case / Package:
0805 [2012 Metric]
|
| Resistor Technology:
Thin Film
|
| Resistor Type:
High Stability
|
| Product Range:
TNPW e3 Series
|
| Temperature Coefficient:
± 25ppm/K
|
| Voltage Rating:
150V
|
| Product Length:
2mm
|
| Product Width:
1.25mm
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
155°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
VISHAY |
| Part Number |
TNPW0805100KBEEN |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

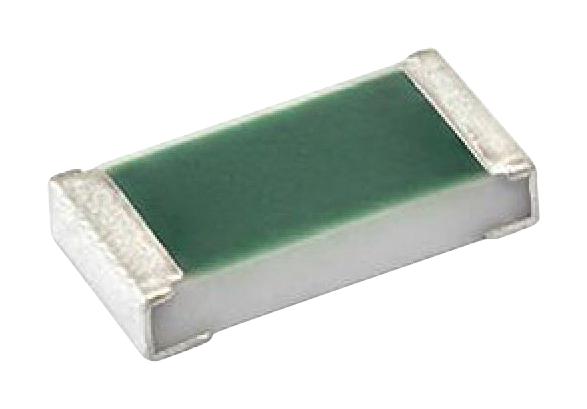

![VISHAY TNPW0805100KBEEN SMD Chip Resistor, 100 kohm, ± 0.1%, 200 mW, 0805 [2012 Metric], Thin Film, High Stability](http://www.tanotis.com/cdn/shop/files/0ce366cffb8c8afc6236df0a45098a16_9bd522ff-c253-4978-afa4-e846424682e3_{width}x.jpg?v=1706934773)
