This is a SMD Chip Resistor, Thin Film, 1.2 Mohm, 700 V, 1206 [3216 Metric], 250 mW, ± 0.1%, TNPV Series product from VISHAY with the model number TNPV12061M20BEEN
Product details
| Resistance |
1.2Mohm |
| Voltage Rating |
700V |
| Resistor Case Style |
1206 [3216 Metric] |
| Power Rating |
250mW |
| Resistance Tolerance |
± 0.1% |
| Product Range |
TNPV Series |
| Packaging |
Cut Tape |
| Resistor Element Type |
Thin Film |
| Temperature Coefficient |
± 25ppm/°C |
| Automotive Qualification Standard |
AEC-Q200 |
Other details
| Brand |
VISHAY |
| Part Number |
TNPV12061M20BEEN |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

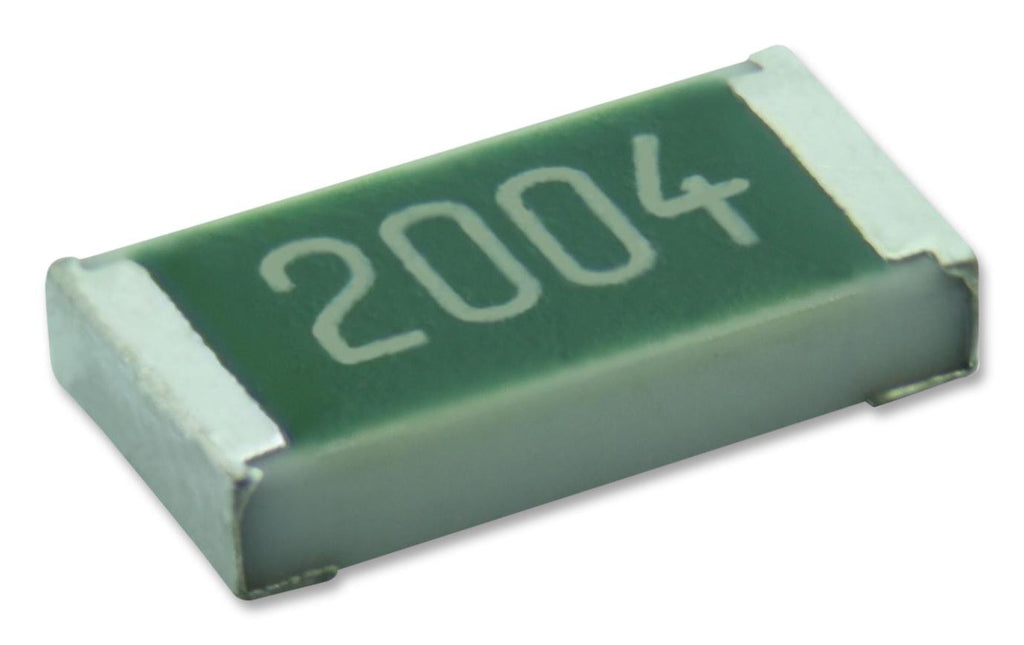

![VISHAY TNPV12061M20BEEN SMD Chip Resistor, Thin Film, 1.2 Mohm, 700 V, 1206 [3216 Metric], 250 mW, ± 0.1%, TNPV Series](http://www.tanotis.com/cdn/shop/products/2475087-40_aeef7a40-34d8-4417-996e-e383af4b058c_{width}x.jpg?v=1575999373)
