| ₹ 274.21 includes GST and import duties. | |
| B2B customers can avail ₹ 41.82 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
New AEC-Q101 automotive MOSFETs ffrom Vishay are manufactured on a dedicated process flow to instill ruggedness. Rated for a maximum junction temperature of 175 °C, the Vishay Siliconix AEC-Q101 qualified SQ series features low on-resistance n- and p-channel TrenchFET® technologies in lead (Pb)- and halogen-free SO packages. Options include the traditional D2PAK (TO-263) and DPAK (TO-252), as well as several PowerPAK® packages, which save space over the D2PAK, DPAK, and SO-8 while delivering similar on-resistance and thermal resistance. The SQ series also includes devices in ultra compact packages such as the TSOP-6, SOT-23, and SC-89.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: Complementary N and P Channel |
| Drain Source Voltage Vds N Channel: 40V |
| Drain Source Voltage Vds P Channel: 40V |
| Continuous Drain Current Id N Channel: 30A |
| Continuous Drain Current Id P Channel: 30A |
| Drain Source On State Resistance N Channel: 0.0061ohm |
| Drain Source On State Resistance P Channel: 0.0061ohm |

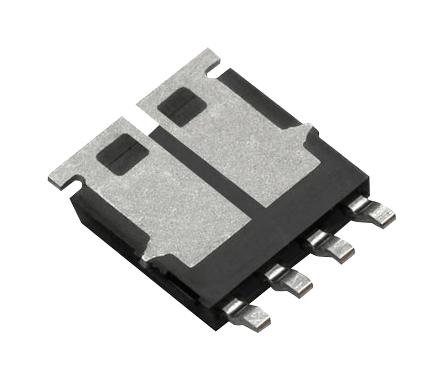

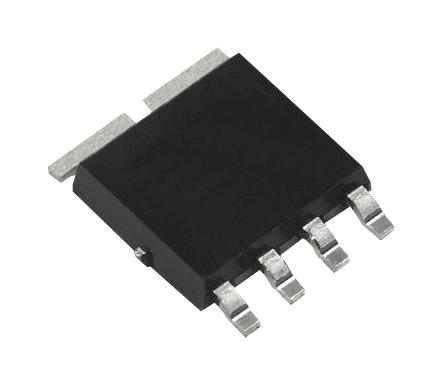

| Transistor Case Style: PowerPAK SO |
| No. of Pins: 8Pins |
| Power Dissipation N Channel: 34W |
| Power Dissipation P Channel: 34W |
| Operating Temperature Max: 175°C |
| Product Range: TrenchFET Series |
| Qualification: AEC-Q101 |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | VISHAY |
| Part Number | SQJ504EP-T1_GE3 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 268.73 |
| 3-5 | ₹ 265.98 |
| 5-10 | ₹ 260.5 |
| 10+ | ₹ 255.02 |
Bulk discount will be automatically applied during checkout based on quantity.
