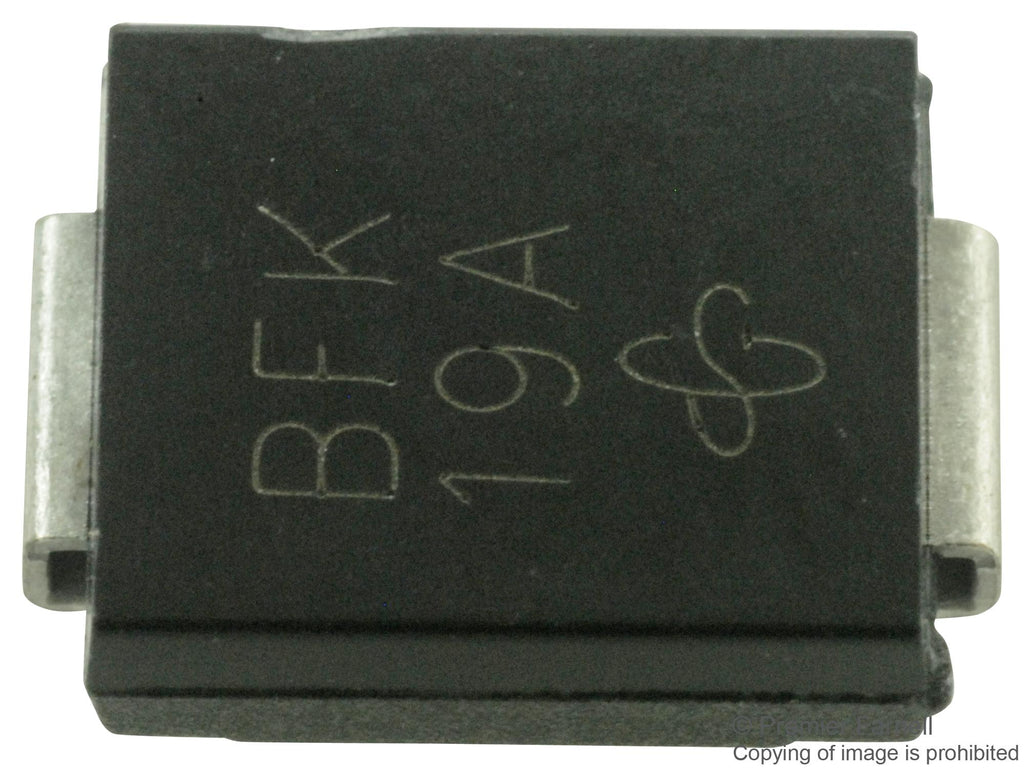

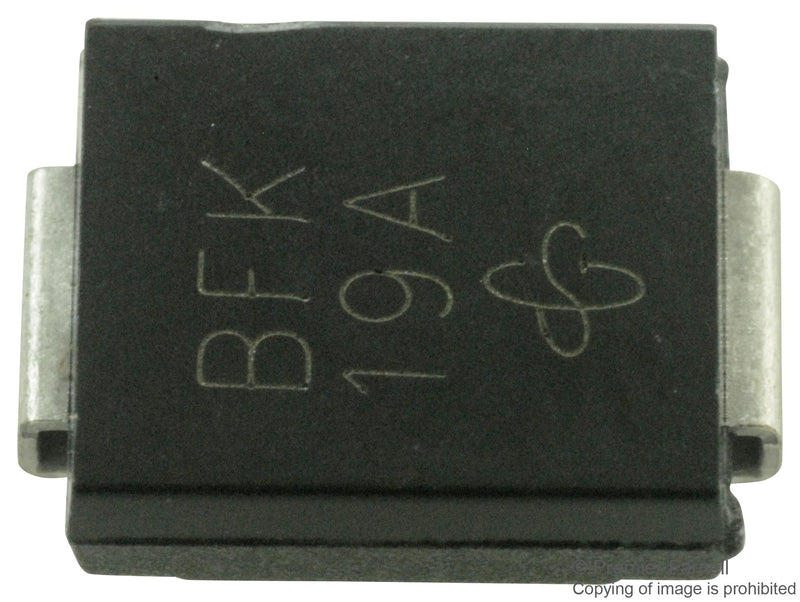

The TRANSZORB SMCJ series surface-mount Transient Voltage Suppressor Diode offers excellent clamping capability. It is available in unidirectional and bidirectional and ideal for automated placement. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- Glass passivated chip junction
- Very fast response time
- Low incremental surge resistance
- -55 to 150°C Operating junction temperature range
Applications
Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Product details
| Product Range |
TRANSZORB SMCJ Series |
| TVS Polarity |
Bidirectional |
| Reverse Stand-Off Voltage Vrwm |
30V |
| Clamping Voltage Vc Max |
48.4V |
| Diode Case Style |
DO-214AB |
| No. of Pins |
2Pins |
| Breakdown Voltage Min |
33.3V |
| Breakdown Voltage Max |
36.8V |
| Peak Pulse Power Dissipation |
1.5kW |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
VISHAY |
| Part Number |
SMCJ30CA-E3/57T |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Packaging / Drawing / Footprint EN |
|
