| ₹ 60.47 includes GST and import duties. | |
| B2B customers can avail ₹ 9.22 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

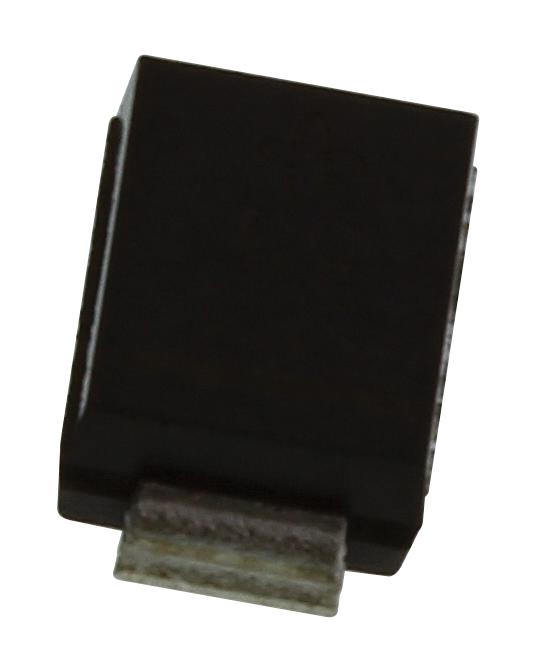

The SL23-E3/52T is a surface-mount Schottky Barrier Rectifier with matte tin-plated leads terminals and UL94V-0 flame rated moulding compound case. The barrier rectifier guard ring for overvoltage protection, high surge current capability, low power losses and high efficiency. Colour band denotes cathode end polarity.
- Low forward voltage drop
- 21V Maximum RMS voltage
- 30V Maximum DC blocking voltage
- 75A Peak forward surge current
- 8kV Electrostatic discharge capacitor voltage
Power Management, Industrial, Automotive
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | VISHAY |
| Part Number | SL23-E3/52T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Packaging / Drawing / Footprint EN | |
| Product Change Notice EN | |
| Simulation Model EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 59.26 |
| 3-5 | ₹ 58.66 |
| 5-10 | ₹ 57.45 |
| 10+ | ₹ 56.24 |
Bulk discount will be automatically applied during checkout based on quantity.
