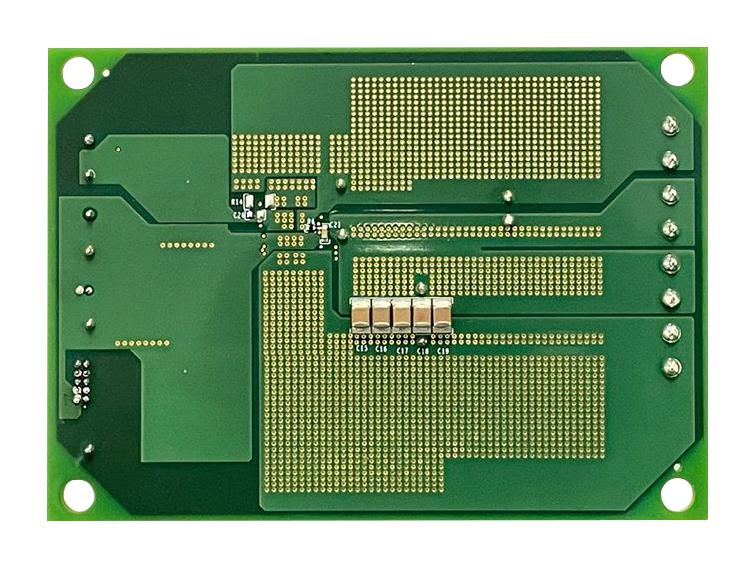

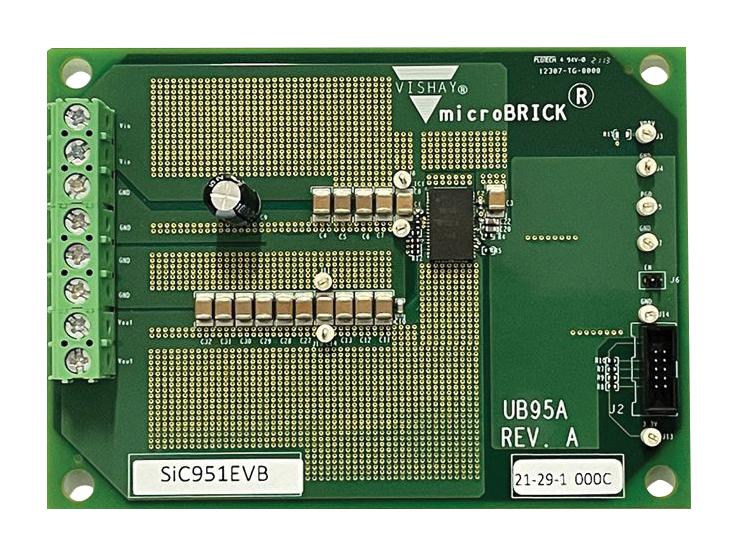

SIC951EVB-A is an evaluation board for SiC951 non-isolated DC/DC buck regulator module. The SiC951 is a PMBus 1.3 compliant non-isolated DC/DC buck regulator module with integrated MOSFETs and inductor in a 10.6 mm x 6.5 mm x 3 mm thermally efficient package. It is capable of supplying 25A continuously with 30 A peak. Its output voltage is digitally adjustable from 0.3V to 5.5V from a 4.5V to 20V input with switching frequencies up to 1.5MHz. The SiC951 can accommodate a variety of applications, including computing, consumer electronics, telecom, and industrial. SiC951 architecture delivers ultrafast transient response with minimum output capacitance and tight regulation over a broad load range. The device has integrated internal compensation and is stable with any type of output capacitor. The device incorporates a power saving scheme that significantly increases light load efficiency. The SiC951 allows power block configuration programs to be stored in non volatile memory.
Other details
| Brand |
VISHAY |
| Part Number |
SIC951EVB-A |
| Quantity |
Each |
| User Manual EN |
 |
