Description
Product Overview

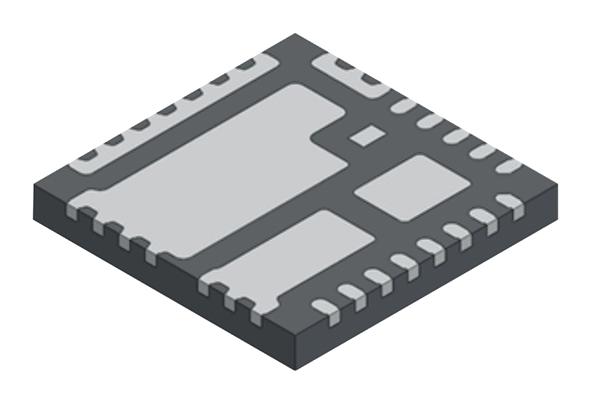

The<bold> SiC638</bold> are integrated power stage solutions optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance. Packaged in Vishay�s proprietary 5 mm x 5 mm MLP package, SiC638 enables voltage regulator designs to deliver up to 50 A continuous current per phase. The internal power MOSFETs utilizes Vishay�s state-of-the-art Gen IV TrenchFET technology that delivers industry benchmark performance to significantly reduce switching and conduction losses.
- Thermally enhanced PowerPAK MLP55-31L package
- Vishay�s Gen IV MOSFET technology and a low side MOSFET with integrated Schottky diode
- Delivers up to 50A continuous current
- High efficiency performance
- High frequency operation up to 1.5MHz
- Power MOSFETs optimized for 19V input stage
- 3.3V/5V PWM logic with tri-state and hold-off
- Zero current detect control for light load efficiency improvement
- Low PWM propagation delay (<lt/>20ns)
- Faster disable
- Thermal monitor flag
- Under voltage lockout
Applications
Power Supplies
Product details
Other details
| Brand | VISHAY |
| Part Number | SIC638ACD-T1-GE3 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
