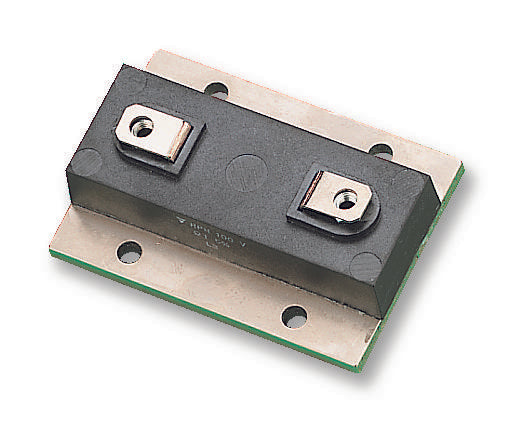

The RPH 100 series from Vishay are power resistors for mounting onto a heatsink thick film technology. Through the use of thick film technology, a non-inductive solution for power resistors is available which are rated up to 100W at +25°C. The terminations position prevents any risk of an electrical arc to the heatsink. These resistor series can replace and offer advantages to standard wirewound devices.
- Resistance values range from 0.092ohm to 1Mohm
- 100W rated power
- ±1%, ±2%, ±5% and ±10% resistance tolerances
- ±150ppm/°C, ±300ppm/°C temperature coefficient
- 55/125/56 climatic category, UL94V-0 flammability rating
- Operating temperature range from -55°C to 125°C
- Low thermal radiation of the case, alumina on metallic base of nickel coated aluminium substrate
- Wide ohmic value range, easy mounting
- High overload capabilities, reduced size and weight
- High voltage, high power resistor
Product details
| Resistance |
470ohm |
| Product Range |
RPH 100 Series |
| Power Rating |
100W |
| Resistance Tolerance |
± 5% |
| Resistor Terminals |
Screw |
| Voltage Rating |
1.9kV |
| Resistor Element Type |
Thick Film |
| Temperature Coefficient |
± 150ppm/°C |
Other details
| Brand |
VISHAY |
| Part Number |
RPH100V470R0JB |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
