Description
Product Overview

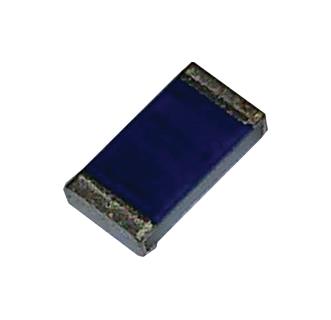

PTS080501B100RP100 is a PTS series temperature-dependent platinum thin film, SMD flat chip resistor (RTD). It is the perfect choice for temperature control of electronics operating under varying environmental conditions. The highly controlled platinum thin film manufacturing process guarantees an outstanding stability of temperature characteristics which ensures reliable operation even under harsh conditions. Typical applications include aviation electronics, and industrial electronics.
- Standardized characteristics according to IEC 60751, IEC 60068
- Short reaction times down to t0.9 ? 2s (in air)
- Outstanding stability of temperature characteristic
- Superior temperature cycling robustness
- Class F0.3 tolerance class
- 100 ohm resistance value
- Temperature range from -55°C to +175°C
- Temperature coefficient is +3850ppm/K (0°C to +100°C, IEC60751)
- Measurement current is 0.1mA to 1.0mA (Imeas. (DC))
- Insulation resistance is <gt/>10Mohm
Product details
Other details
| Brand | VISHAY |
| Part Number | PTS080501B100RP100 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
