Description

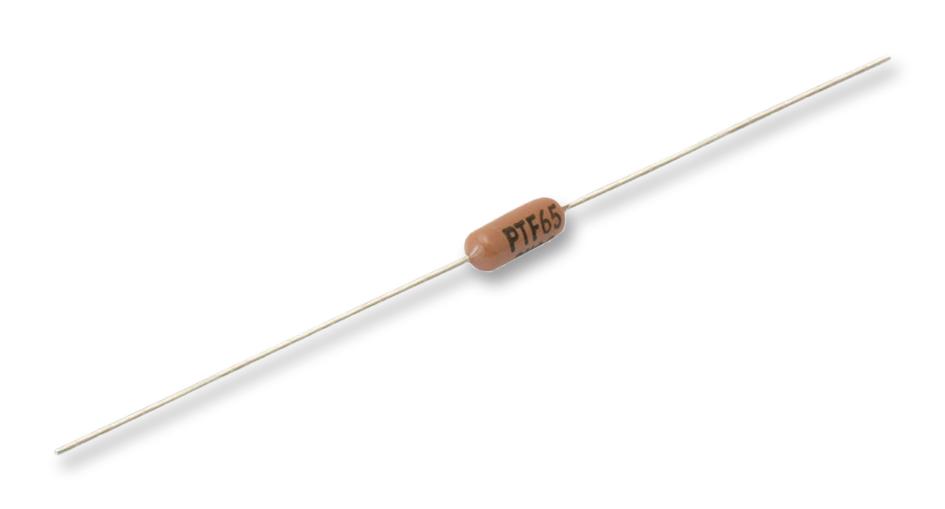

The PTF651M0000BZEK is a 1MR 250mW through-hole mounting Metal Film Resistor with solder-coated copper termination. The high precision resistor features proprietary epoxy coating provides superior moisture protection, very good high frequency characteristics and it can replace wirewound bobbins.
- Extremely low temperature coefficient of resistance
- Very low noise and voltage coefficient
- Very good high frequency characteristics
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Resistance: 1Mohm |
| Product Range: PTF |
| Power Rating: 250mW |
| Resistance Tolerance: ± 0.1% |
| Resistor Case / Package: Axial Leaded |
| Voltage Rating: 500V |
| Resistor Technology: Metal Film |
| Temperature Coefficient: ± 5ppm/°C |
| Resistor Type: High Precision, High Stability |
| Product Diameter: 3.68mm |
| Product Length: 12.07mm |
| Product Width: - |
| Operating Temperature Min: -55°C |
| Operating Temperature Max: 150°C |
| Qualification: - |
Other details
| Brand | VISHAY |
| Part Number | PTF651M0000BZEK |
| Quantity | Each |
| Technical Data Sheet EN |  |
