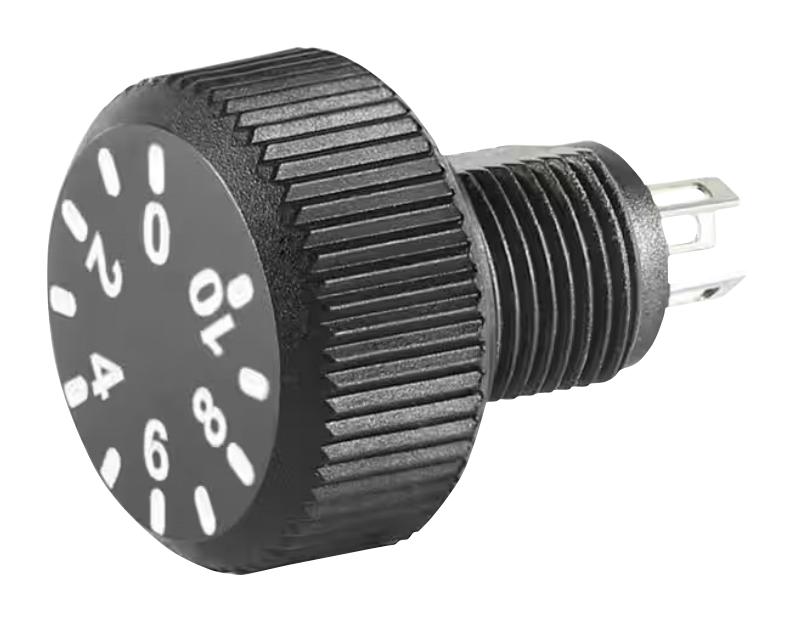

P16NP103MAB15F2 is a P16 series knob potentiometer for professional and industrial applications. P16 is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel reducing to a minimum the required clearance. Target applications/functions are audio market: remote controls / hot air blowers / spotlights for scenes / air fan controls / variable frequency drives / lightening control / welding setting, medical market: electric wheelchair, cardiac performance monitoring, military market: network communication systems / audio headsets / night vision googles / walkie talkies, industrial market: remote controls / hot air blowers / spotlights for scenes / air fan controls / variable frequency drives / lighting / valves control.
- Black plastic knob, -40°C to +85°C temperature range
- ±20% tolerance, linear taper, 10Kohm resistance
- Test according to CECC 41000 or IEC 60393-1
- Compact with integrated knob to avoid looking for and purchasing separately a button)
- High dielectric strength of 2500VRMS
- Version for military, professional and industrial applications (cermet) 1W at 40 °C
- Fully sealed and panel sealed (IP67)
- Very small overall dimension with integrated knob avoid looking for and purchasing separately button
- End resistance (typical) of 1ohm
- 50K cycles lifespan, 270° ± 10° electrical travel, ±150ppm/°C temperature coefficient (typical)
Product details
| Track Resistance:
10kohm
|
| No. of Turns:
1Turns
|
| Track Taper:
Linear
|
| Power Rating:
1W
|
| Resistance Tolerance:
± 20%
|
| Product Range:
P16 Series
|
| Potentiometer Mounting:
Panel Mount
|
| Shaft Diameter:
-
|
| No. of Gangs:
1
|
| Adjustment Type:
Knurled Knob
|
| Shaft Length:
-
|
| Temperature Coefficient:
± 150ppm/°C
|
| Potentiometer Type:
-
|
| Resistor Technology:
Cermet
|
| Potentiometer Terminals:
Solder Lug
|
| Resistor Case / Package:
-
|
| Product Length:
24.3mm
|
| Product Width:
-
|
| Product Height:
-
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
Other details
| Brand |
VISHAY |
| Part Number |
P16NP103MAB15F2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
