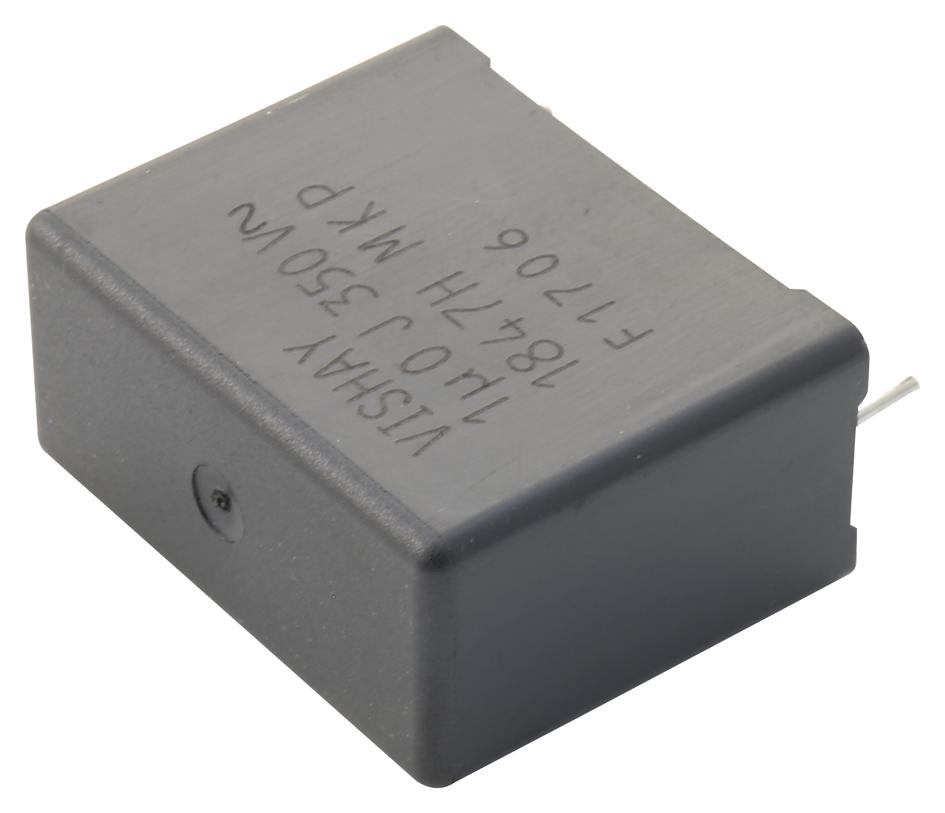

MKP1847C series THB AC filtering metalized polypropylene film capacitors has a robust design suitable for high humidity environments. The MKP1847C is designed to ensure extremely stable capacitance and ESR parameters over a long service life regardless of the environmental conditions during operation. Typical applications include AC filtering, UPS systems, renewable energy - grid interface, harmonic filter and welding equipment.
- THB 40°C, 93% RH, 56 days at UNAC
- High peak current capabilities
- Radial type
- Plastic case sealed with resin, flame retardant encapsulation
Product details
Dielectric Type:
Metallized PP
|
Capacitor Case / Package:
Radial Box - 2 Pin
|
Capacitance:
10µF
|
Capacitance Tolerance:
± 10%
|
Typical Applications:
AC Filter
|
Capacitor Mounting:
Through Hole
|
Voltage(AC):
250V
|
Voltage(DC):
500V
|
Humidity Rating:
GRADE II (Test Condition A)
|
Capacitor Terminals:
PC Pin
|
Lead Spacing:
37.5mm
|
dv/dt Rating:
25V/µs
|
Peak Current:
250A
|
RMS Current (Irms):
9A
|
ESR:
-
|
Product Diameter:
-
|
Product Length:
43mm
|
Product Width:
18.5mm
|
Product Height:
35.5mm
|
Ripple Current:
-
|
Output (kvar):
-
|
Product Range:
MKP1847C Series
|
Operating Temperature Min:
-40°C
|
Operating Temperature Max:
85°C
|
Qualification:
-
|
Other details
Brand |
VISHAY |
Part Number |
MKP1847C610255P2 |
Quantity |
Each |
Technical Data Sheet EN |
 |
