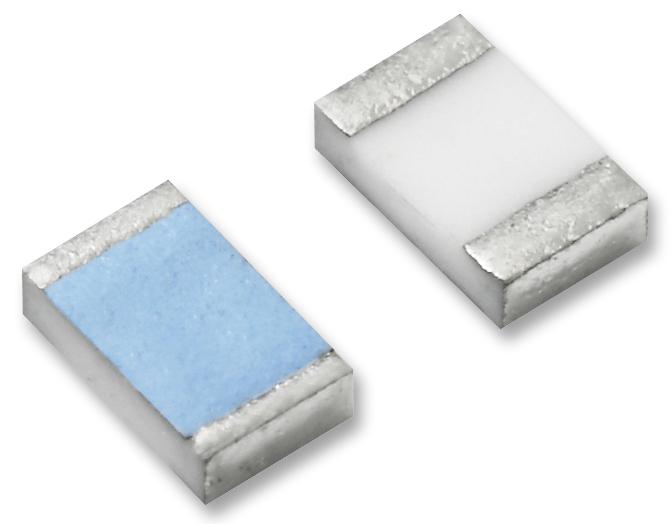

Vishay Foil Resistors Y162520K0000T9R SMD Chip Resistor 20 Kohm ± 0.01% 300 mW 1206 [3216 Metric] Metal Precision

The Y162520K0000T9R is a 20kR 300mW surface-mounting ultra high precision Chip Resistor with lead (Pb)-free termination and metal foil element. This is the first device to provide high rated power and excellent load life stability along with extremely low TCR all in one resistor. One of the most important parameters influencing stability is the temperature coefficient of resistance (TCR). Although, the TCR of foil resistor is considered extremely low and this characteristic has been further refined over the years. The VSMP series utilizes ultra high precision Bulk Metal® Z-foil. The Z-foil technology provides a significant reduction of the resistive elements sensitivity to ambient temperature variations (TCR) and to self heating when power is applied. Along with the inherently low PCR and TCR, Z-foil technology also provides remarkably improved load life stability, low noise and availability of tight tolerance.

• Electrostatic discharge (ESD) at least to 25000V
• Non-inductive and non-capacitive design
• Non hot spot design

Warnings ESD sensitive device, take proper precaution while handling the device.

Product details

Resistance	20kohm
Resistance Tolerance	± 0.01%
Power Rating	300mW
Resistor Case / Package	1206 [3216 Metric]
Resistor Technology	Metal Foil
Resistor Type	Precision
Product Range	-
Temperature Coefficient	± 0.2ppm/°C
Voltage Rating	77.4V
Product Length	3.2mm
Product Width	1.57mm
Operating Temperature Min	-55°C
Operating Temperature Max	150°C
Qualification	-

Other details

Brand	VISHAY FOIL RESISTORS
Part Number	Y162520K0000T9R
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
