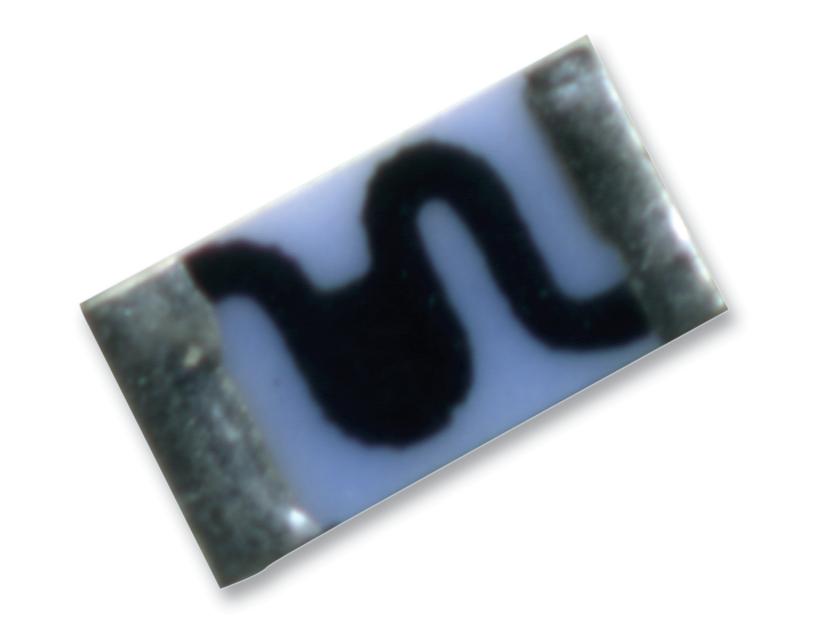

Vishay CRHV1206AF2M00FKFT CRHV1206AF2M00FKFT SMD Chip Resistor 2 Mohm ± 1% 300 mW 1206 [3216 Metric] Thick Film High Voltage

The CRHV series from Vishay are high voltage thick film chip resistors suitable for solderable, epoxy bondable or wire bondable applications. It has 3-sided wraparound termination or single termination flip chip standard and 5-sided wraparound termination available. It offers multiple styles, termination materials and configurations allow wide design flexibility and epoxy bondable or wire bondable non-magnetic terminations available.

• Resistance range from 2Mohm to 50Gohm
• Available in ±20%, ±10%, ±5%, ±2%, ±1% and ±0.5% tolerance
• Temperature coefficient is ±100ppm/°C
• Power rating up to 1W and voltage rating up to 3000V
• Automatic placement capability
• Outstanding stability less than 0.5%
• Operating temperature range from -55°C to 155°C
• High voltage resistor

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	VISHAY
Part Number	CRHV1206AF2M00FKFT
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
One Page Summary EN
Application Note EN
Miscellaneous EN
Product Change Notice EN
CAD Multiple Formats EN
Devices List EN
