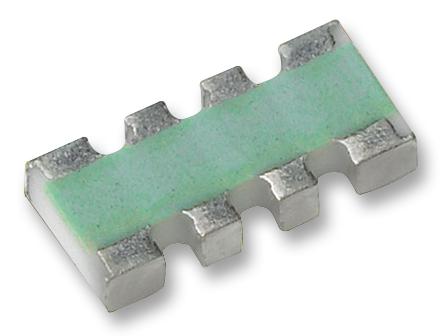

Vishay ACASA1002E1002P100 ACASA1002E1002P100 Resistor Network 10 Kohm Acas 4 Elements Isolated 0612 [1632 Metric]

The ACASA1002E1002P100 is a 10kR 125mW 8-pin 4-element Precision Chip Resistor with convex square terminal. The chip resistor array combines the proven reliability of precision thin film chip resistor products with the advantages of chip resistor arrays. Defined relative tolerance (matching) and relative TCR (tracking) make this product perfectly suited for applications with outstanding requirements towards stable fixed resistor ratios.

• Advanced thin film technology
• Two pairs or four equal resistor values
• Pure Sn termination on Ni barrier layer
• -55 to 120°C Operating temperature range

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	VISHAY
Part Number	ACASA1002E1002P100
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Miscellaneous EN
