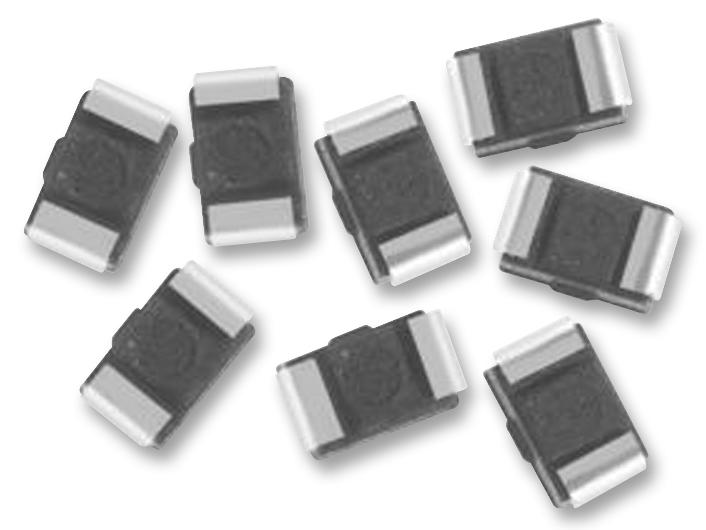

Vishay 293D106X9016C2TE3 293D106X9016C2TE3 Surface Mount Tantalum Capacitor TANTAMOUNT® 10 µF 16 V 2312 [6032 Metric] ± 10% 1.8 ohm C

The Vishay TANTAMOUNT 293D series are standard industrial grade solid tantalum chip capacitors. The capacitance value ranges from 0.1µF to 1000µF these tantalum electrolytic capacitors are the preferred choice in applications where volumetric efficiency, stable electrical parameters, high reliability and long service life are primary considerations.

• EIA 3216-18, 3528-21, 6032-28, 7343-31, 7343-43, 7343-20 case sizes are available
• Working voltage range from 4VDC to 75VDC
• Available in ±5%, ±10% and ±20% tolerance
• Operating temperature ranges from -55°C to +125°C
• Compatible with high volume automatic pick and place equipment
• Meets IEC specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements
• 100% surge current test (D and E sizes)
• Optical character recognition qualified
• Qualified to EIA-717 standard

Applications

Industrial, Consumer Electronics, Portable Devices, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	VISHAY
Part Number	293D106X9016C2TE3
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
