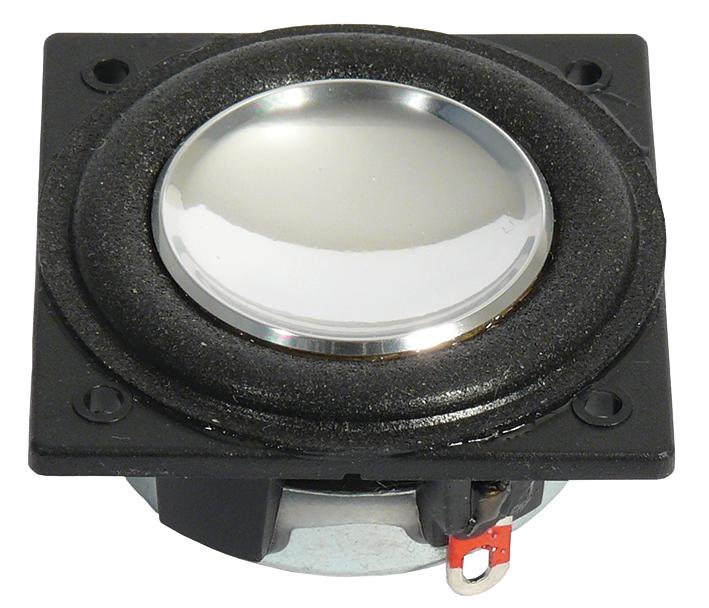

3.2cm (1.3") Full range speaker with a wide and balanced frequency response and very good low range reproduction. With powerful Neodymium driver. Suitable for applications where slim construction and good music and speech reproduction are requested. Square basket with four mounting holes for easy mounting.
- Typical applications
- Flat screens (TV and PC)
- Info terminals
- Other compact devices speech and music reproduction
- Power rating: 2W (5W Max.)
- Frequency range: 150Hz - 20kHz
- Impedance: 8R
- SPL (@ 1W/1m): 78dB
- Resonant frequency: 220Hz
- Cut-out: 31.5mm
- Fixing centres: 24.5mm
- Dimensions (WxHxD): 32x32x11mm
- Weight: 28g
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
- |
| External Width - Metric |
32mm |
| Impedance |
8ohm |
| Power Rating Nom |
2W |
| Sound Level SPL |
78dBA |
| External Diameter - Imperial |
- |
| External Width - Imperial |
1.26" |
| Frequency Response Min |
150Hz |
| Frequency Response Max |
20kHz |
| Speaker Shape |
Round with Square Frame |
| Resonant Frequency |
220Hz |
| Speaker Mounting |
Panel Mount |
| Power Rating Max |
3W |
| External Length - Metric |
32mm |
| External Depth - Metric |
13mm |
| External Length - Imperial |
1.26" |
| External Depth - Imperial |
0.512" |
| Product Range |
- |
Other details
| Brand |
VISATON |
| Part Number |
BF32-8OHM |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
