Description
Violectric NIIMBUS US 5 Overview
- 1Description
- 22-in-1 Combo Amplification Box
- 3Comprehensive Analog I/O
- 4Adaptive Features and Digital Control
- 5Excellent Build Quality

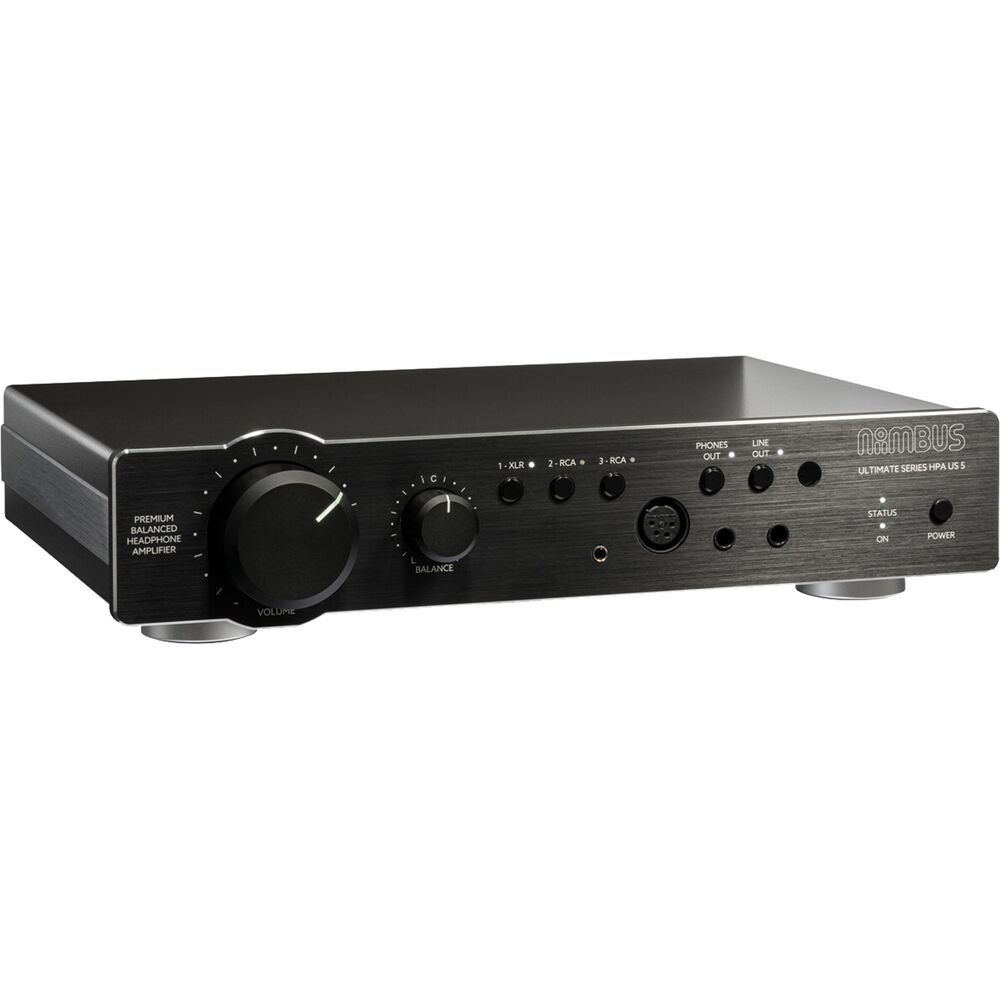

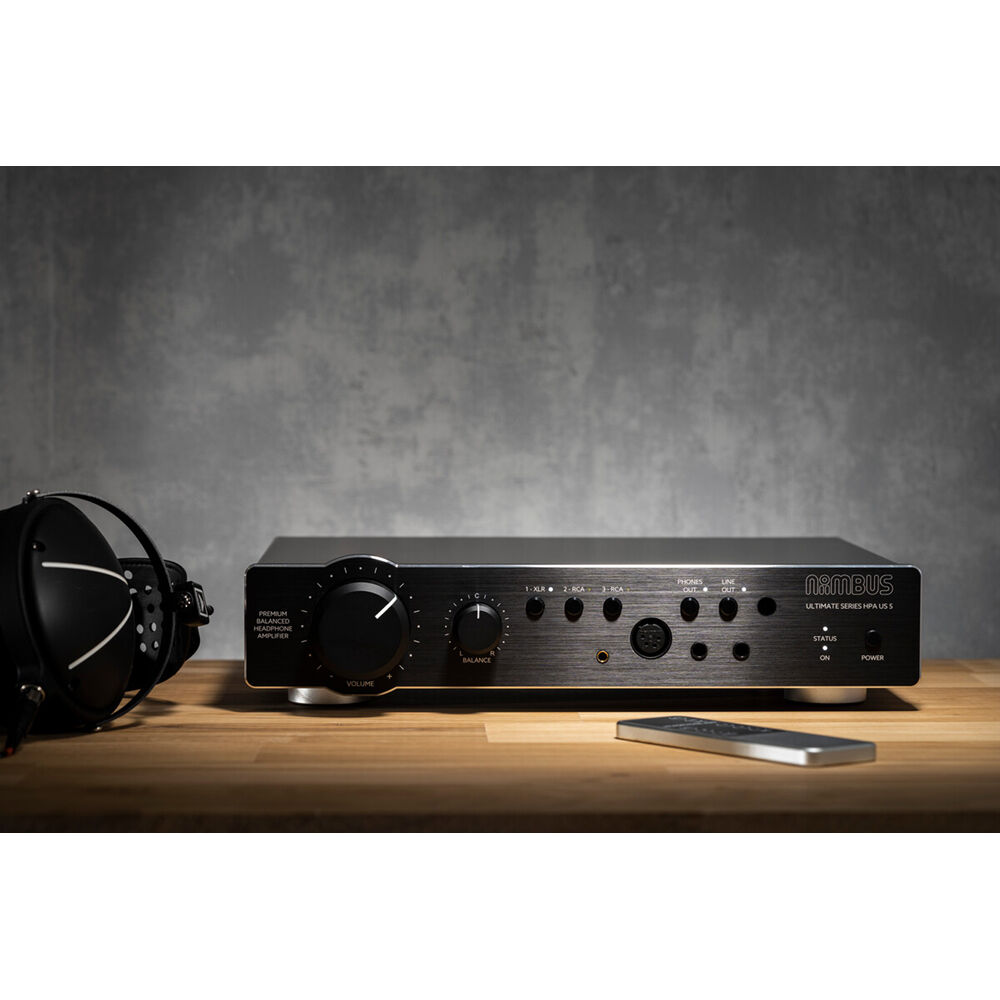

Built to deliver versatile and premium sound quality in a compact, desktop form-factor, the Niimbus US 5 Headphone Amplifier from Violectric is a powerful, 2-channel audiophile headphone amplifier with both amp and pre-amp functions and enough power to drive any sized headphones, including dynamics, planars, and active loudspeakers. This handmade amp sports a 100% analog circuit and hand-selected components for uncompromising sound, and the wide ranging I/O ensures you can easily connect to any device, in any way you see fit, from RCA and XLR inputs, to 1/4", RCA, XLR, and 4.4mm outputs, all selectable from the front panel.
The high damping factor makes the US 5 an ideal choice for difficult to drive headphones, and the ultralow-noise operation pairs well with the oversized, high-voltage power supply to provide incredible detail and optimal performance on low-impedance headphones. With it's quad amplifier that delivers far more power than most demanding headphones require, and its compact metal chassis, the US 5 is an ideal choice for any home studio, professional podcasting setup, or expansive home entertainment system.
2-in-1 Combo Amplification Box
Why choose between an audiophile-quality headphone amp and a powerful speaker pre-amp? The Niimbus US 5 handles both with ease, thanks to the onboard circuit selection, which allows you to switch between an amp circuit designed for headphones and a pre-amp circuit designed for speakers. Just hit the front-panel buttons or use the included infrared remote control to send the output to the headphone or line outputs. The US 5 can drive active speakers and control power amps without a sweat via its balanced XLR outputs, allowing you to enjoy a compact and fantastic sounding headphone amp or a premium speaker pre-amplifier, all in one box.
Comprehensive Analog I/O

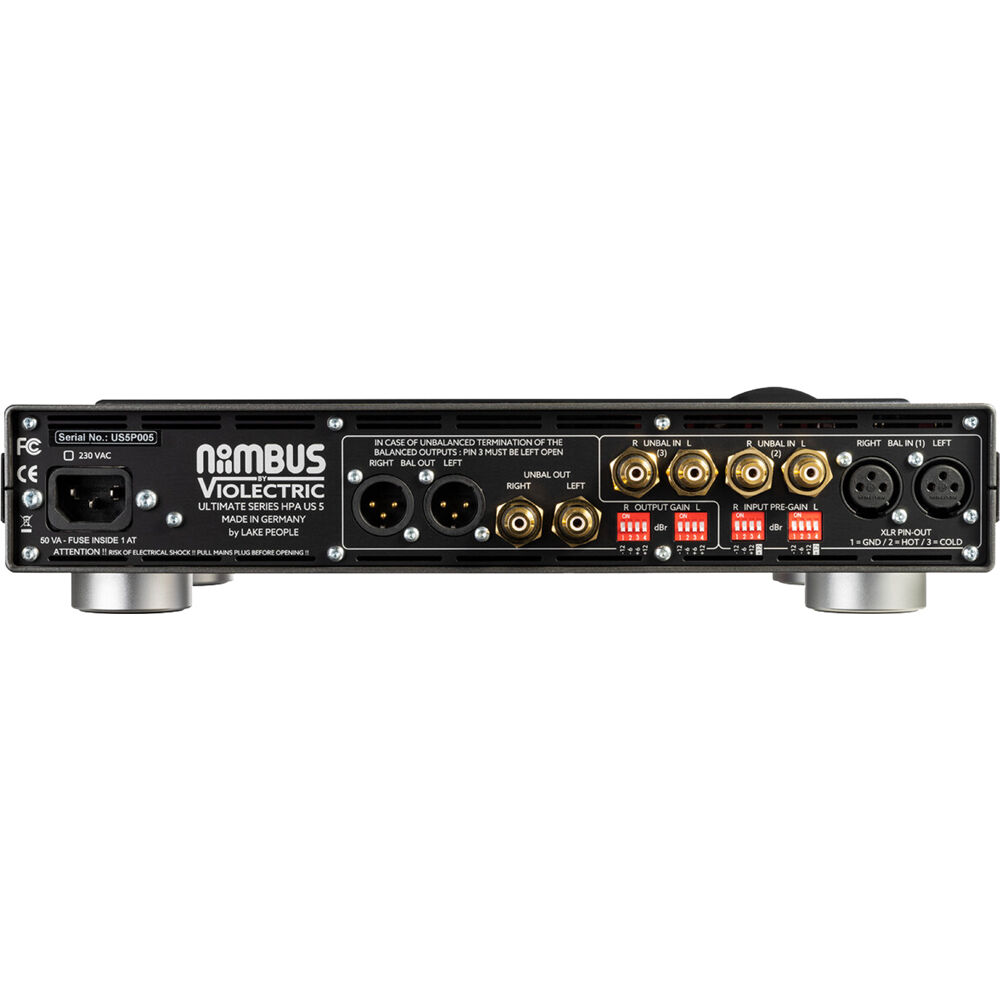

With a multitude of analog input and output options, you will never be disconnected from your preferred devices with the US 5 headphone amp. Front- and rear-panel options make it simple to wire your amp for use as the nerve center of your home entertainment system or a faithful companion to your home studio setup.
- Two Balanced XLR 3-pin inputs (left and right)
- Four unbalanced RCA inputs (left and right)
- Two balanced XLR 3-pin line outputs (left and right)
- Two unbalanced RCA outputs (left and right)
- Balanced XLR 4-pin headphone output
- Two unbalanced 1/4" headphone outputs
- Balanced 4.4mm headphone output
Adaptive Features and Digital Control

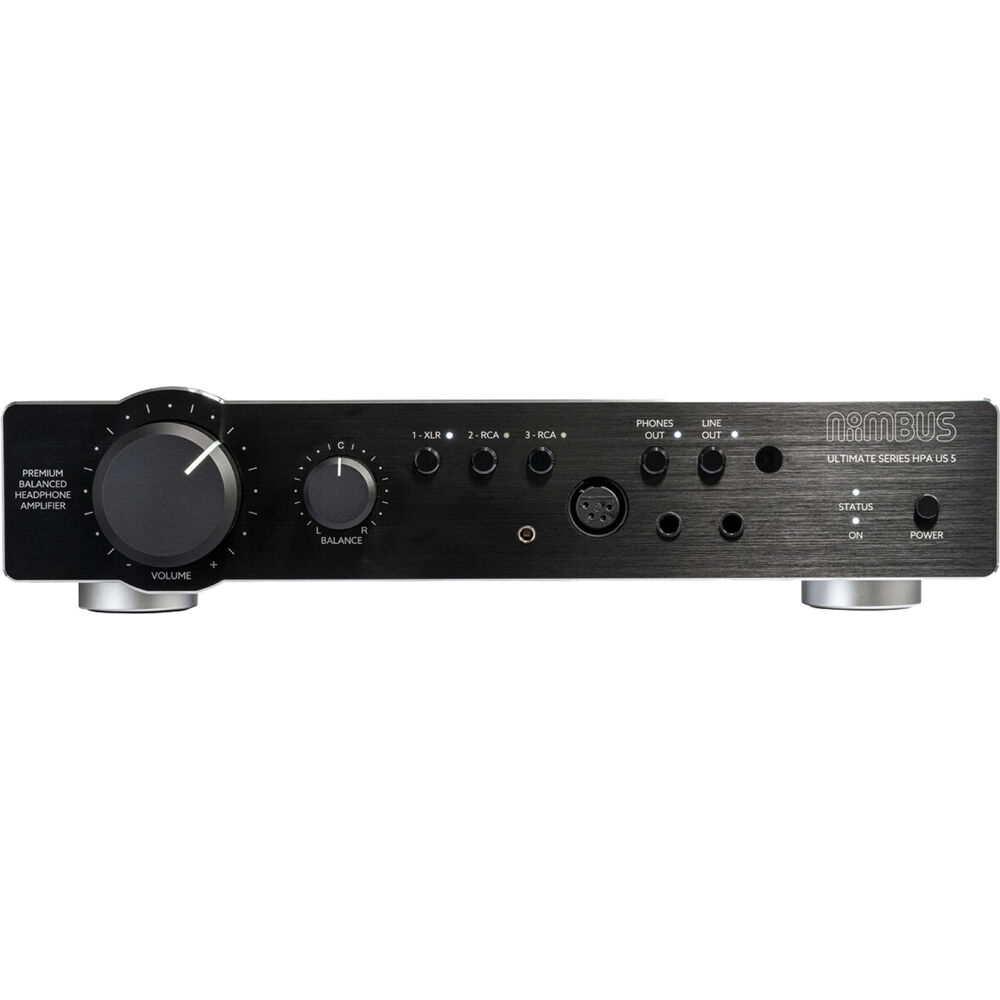

The US 5 sports robust and easy-to-use digital control options for it's analog circuitry. With motorized knobs, simple push buttons, and numerous automatic features that adapt to different devices and protect your amp from damage, the Niimbus US 5 couldn't be easier, or safer, to use. And with the included aluminum infrared remote control, you can easily control all your settings wirelessly, including input selection, output selection, volume, and mute.
- Onboard volume and balance control
- Push buttons for input and output connector selection
- Monitoring of headphone output based on DC and overload
- Adaptation of line-out signal to the connected devices in the range of ±12 dB
- Rear-panel DIP switches for controlling pre-amp and output amp gain from -12 to +12 dB
- Solid aluminum infrared remote control
- Delayed activation with power-on and immediate separation during power-off
- DC, overload, and thermal protections
Excellent Build Quality
The US 5 Headphone Amplifier is hand-constructed from top-notch materials, from the carefully selected internal analog components to the rugged aluminum and steel exterior, and is guaranteed to last you for years of use.
- 100% analog signal path
- Black anodized aluminum front and rear panel
- 2mm sheet steel chassis with metallic coating
- Remote control milled from a solid piece of aluminum
- 60V internal operating voltage for high-impedance headphones with high-output voltage swing
- Motorized volume and balance control knobs
- Four powerful amps offering up to 7000mW max
- Two oversized, toroidal transformers with more than 50,000 uF filter capacity
- Handmade in Germany
In the Box
- Violectric Niimbus US 5 Headphone Amplifier
- Remote Control
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- 2-in-1 Combo Amplification Box
- Comprehensive Analog I/O
- Adaptive Features and Digital Control
- Excellent Build Quality
Violectric NIIMBUS US 5 Specs
Key Specs
| Number of Headphone Channels |
2-Channel
|
| Recommended Headphone Impedance |
4 to 600 Ohms
|
| Headphone Output Power |
7000 mW into 50 Ohms (0.01% THD, 1 kHz)
|
| Analog Audio I/O |
4 x RCA Coaxial Unbalanced Line Input (2 Stereo Pair, Rear Panel)
2 x XLR 3-Pin Balanced Line Input (1 Stereo Pair, Rear Panel) 2 x RCA Coaxial Unbalanced Line Output (1 Stereo Pair, Rear Panel) 1 x 4.4 mm TRS Balanced Stereo Headphone Output (Front Panel) 2 x 1/4" TRS Unbalanced Stereo Headphone Output (Front Panel) 2 x XLR 3-Pin Balanced Line Output (1 Stereo Pair, Rear Panel) 1 x XLR 4-Pin Balanced Stereo Headphone Output (Front Panel) |
| Power Requirements |
AC Input
|
| Number of Headphone Channels |
2-Channel
|
| Recommended Headphone Impedance |
4 to 600 Ohms
|
| Headphone Output Power |
7000 mW into 50 Ohms (0.01% THD, 1 kHz)
|
| EQ |
No
|
| Display |
No
|
Connectivity
| Analog Audio I/O |
4 x RCA Coaxial Unbalanced Line Input (2 Stereo Pair, Rear Panel)
2 x XLR 3-Pin Balanced Line Input (1 Stereo Pair, Rear Panel) 2 x RCA Coaxial Unbalanced Line Output (1 Stereo Pair, Rear Panel) 1 x 4.4 mm TRS Balanced Stereo Headphone Output (Front Panel) 2 x 1/4" TRS Unbalanced Stereo Headphone Output (Front Panel) 2 x XLR 3-Pin Balanced Line Output (1 Stereo Pair, Rear Panel) 1 x XLR 4-Pin Balanced Stereo Headphone Output (Front Panel) |
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
Performance
| Frequency Response |
5 Hz to 250 kHz ±0.5 dB
|
| Maximum Input Level |
Line:
+21 dBu (10 Kilohm Input Impedance) |
| Maximum Output Level |
+21 dBu (1 Ohm Input Impedance)
|
| Dynamic Range |
> 135 dB (A-Weighted)
|
| Impedance |
Outputs:
0.1 Ohm (Unbalanced) 0.2 Ohm (Balanced) |
| THD+N |
< -104 dB / < 0.00063% (At 1 kHz/2 x 10V/100R = 1W)
< -103 dB / < 0.00071% (At 1 kHz/2 x 4V/32R = 0.5W) |
| SNR |
> 129 dB (A-Weighted)
|
| Noise |
< -104 dBu (A-Weighted)
|
| Crosstalk |
-105 dB (1 kHz)
-103 dB (15 kHz) |
| Damping Factor |
500 at 50 Ohms (Unbalanced)
250 at 50 Ohms (Balanced) |
Power
| Power Requirements |
AC Input
|
| AC Input Power |
115 to 230 VAC, 50 / 60 Hz (T 1 A)
|
| Ground Lift |
No
|
| AC/DC Power Adapter |
No
|
| Power Consumption |
50 VA (Maximum)
|
Physical
| Dimensions |
13.8 x 9.8 x 2.3" / 35.1 x 24.8 x 5.9 cm (Chassis Only)
|
