Description

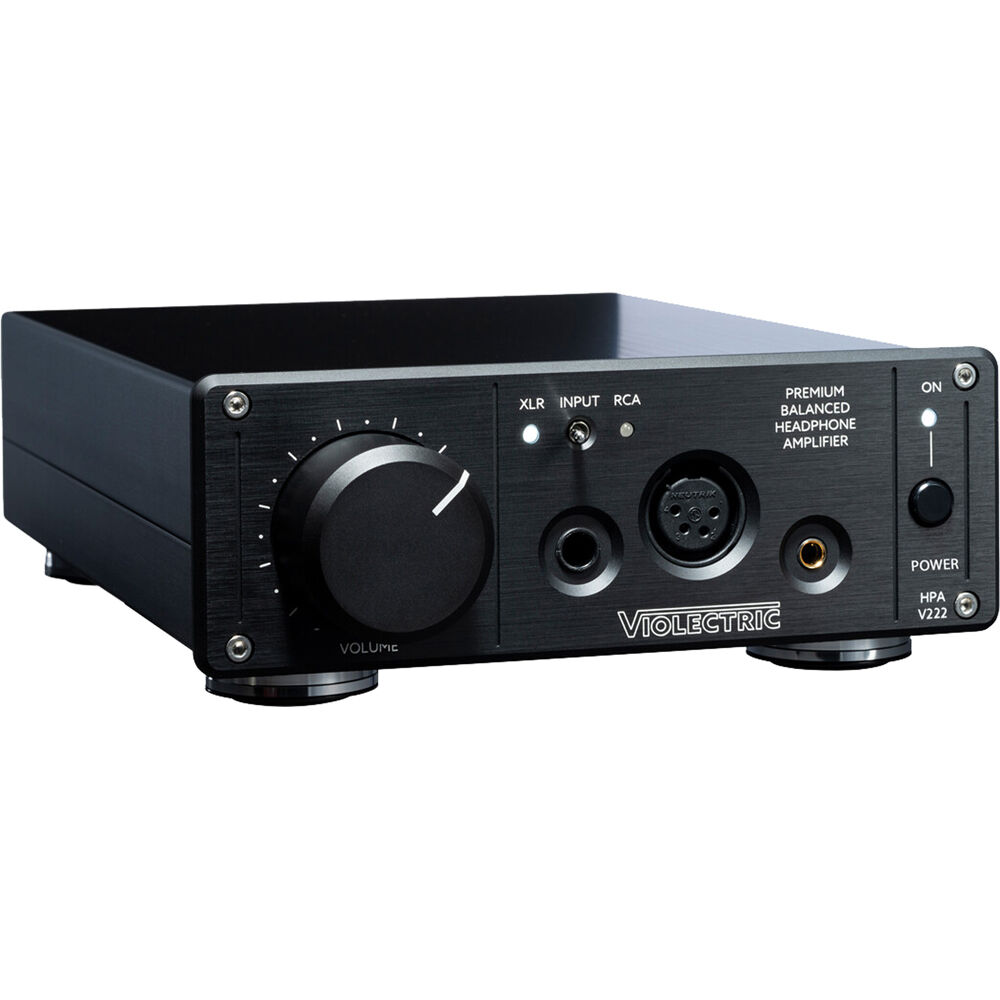

Violectric DHA V222 Overview
Engineered to deliver high-fidelity sound quality in a compact, desktop form-factor, the HPA V222 Headphone Amplifier from Violectric is a true balanced 4-stage amp geared toward the beginner audiophile. The high damping factor makes the HPA V222 a smart choice for difficult to drive headphones, and the ultralow-noise operation pairs well with the 50V internal operating voltage provide incredible detail and optimal performance on both high- and low-impedance models.

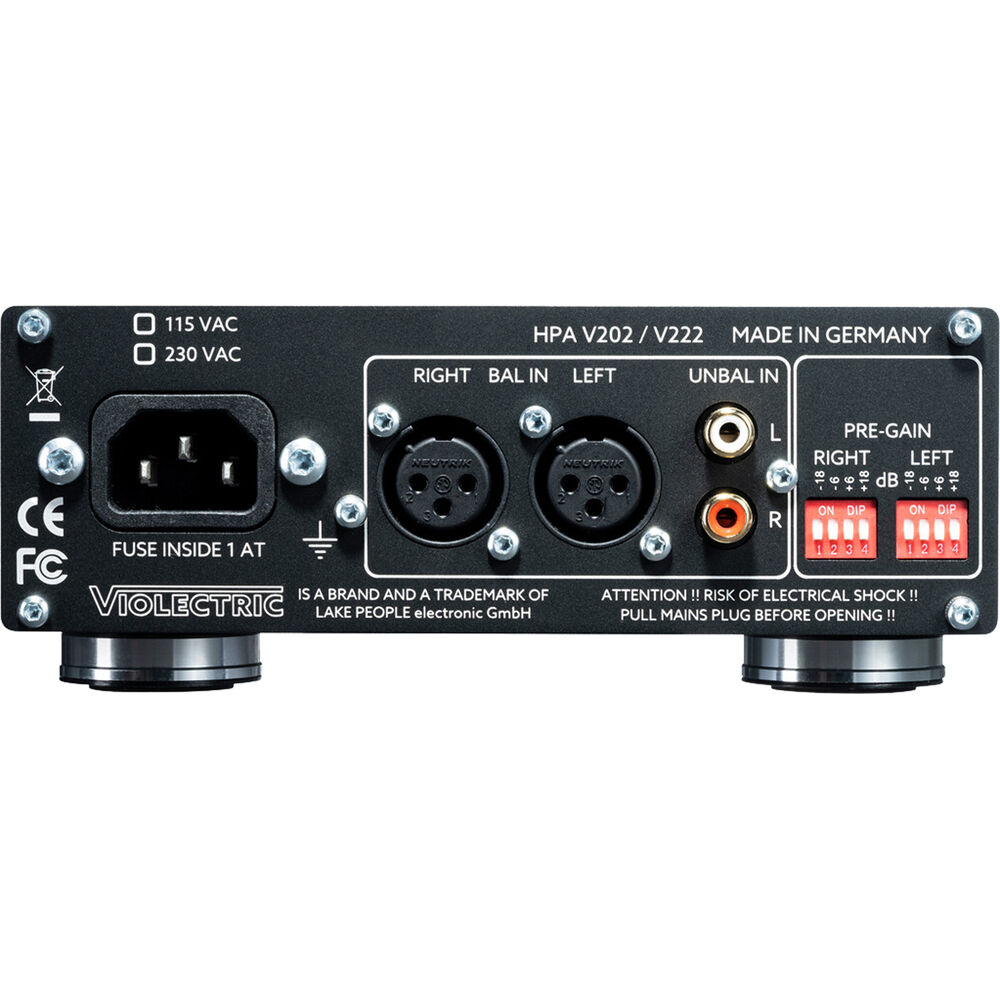

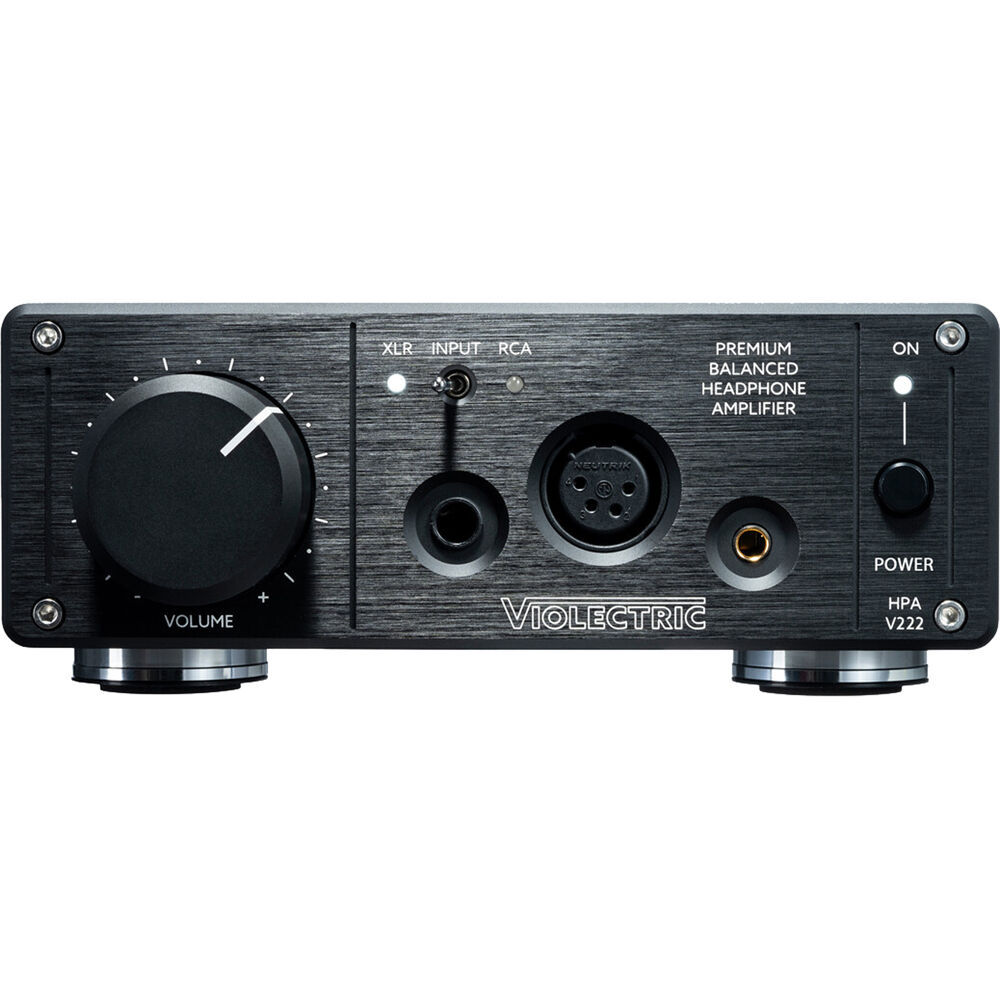

The elegantly crafted amp offers both balanced 4-pin XLR and balanced 4.4mm Pentaconn headphone connectors along with an unbalanced 1/4" option. The front panel also sports a large 38mm volume dial with an Alps RK 27 attenuator. An input switch lets you easily toggle between the balanced XLR and unbalanced RCA inputs on the rear panel. Also on the back are dip switches that allow you to set pre-gain levels from -18 to +18 dB to create a perfect match for your headphones.
- Natural and warm sounding headphone amp well suited to a developing audiophile
- 4-stage fully balanced amp
- 60V internal operating voltage ideal for high-impedance headphones
- High output power for headphones with low impedances and magnetostats
- 2 stereo inputs, balanced via XLR and unbalanced via RCA

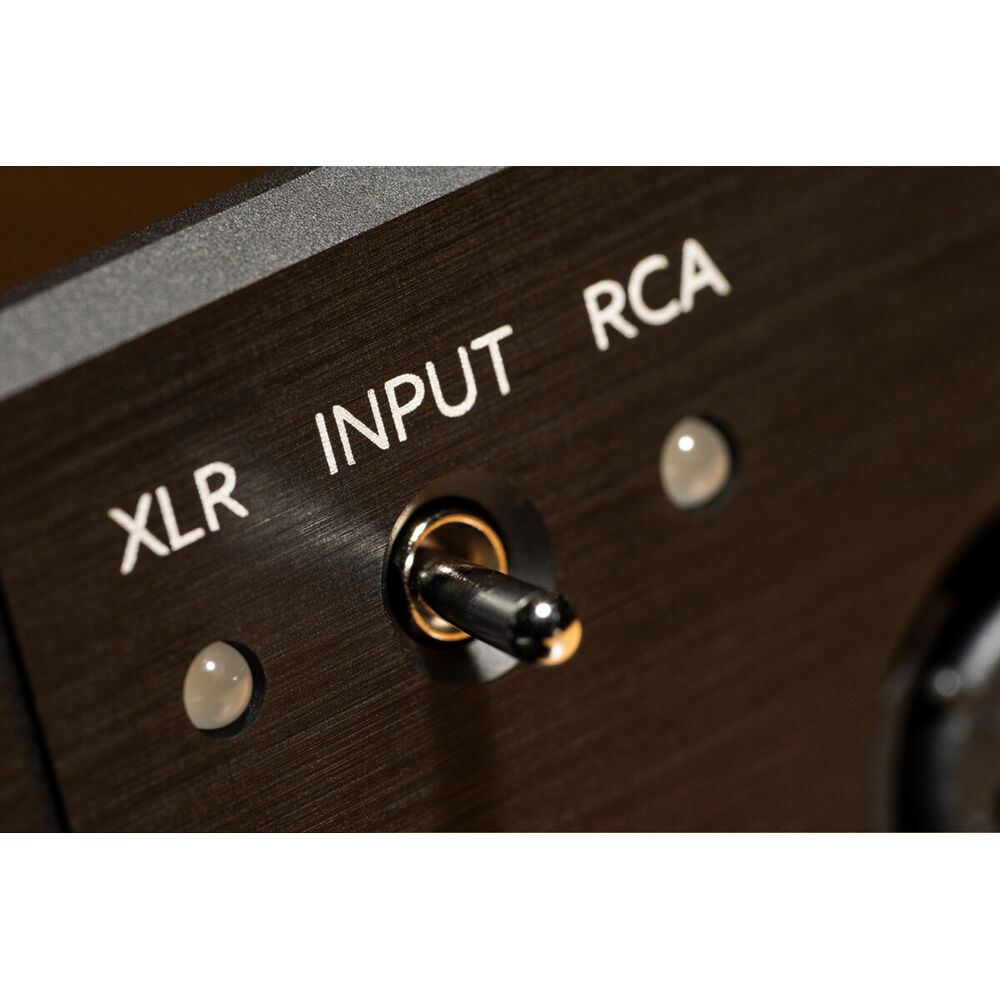

- Inputs switchable on the front panel
- +/- 18 dB pre-gain for a perfect match of the HPA V202 between source and headphones
- Volume control with Alps RK 27 attenuator
- Big 38mm aluminum knob
- 3500 mW Pmax into 50 ohms
- 23.2 V RMS into 600 ohms
- Delayed coupling of the headphones to the amp after power-on

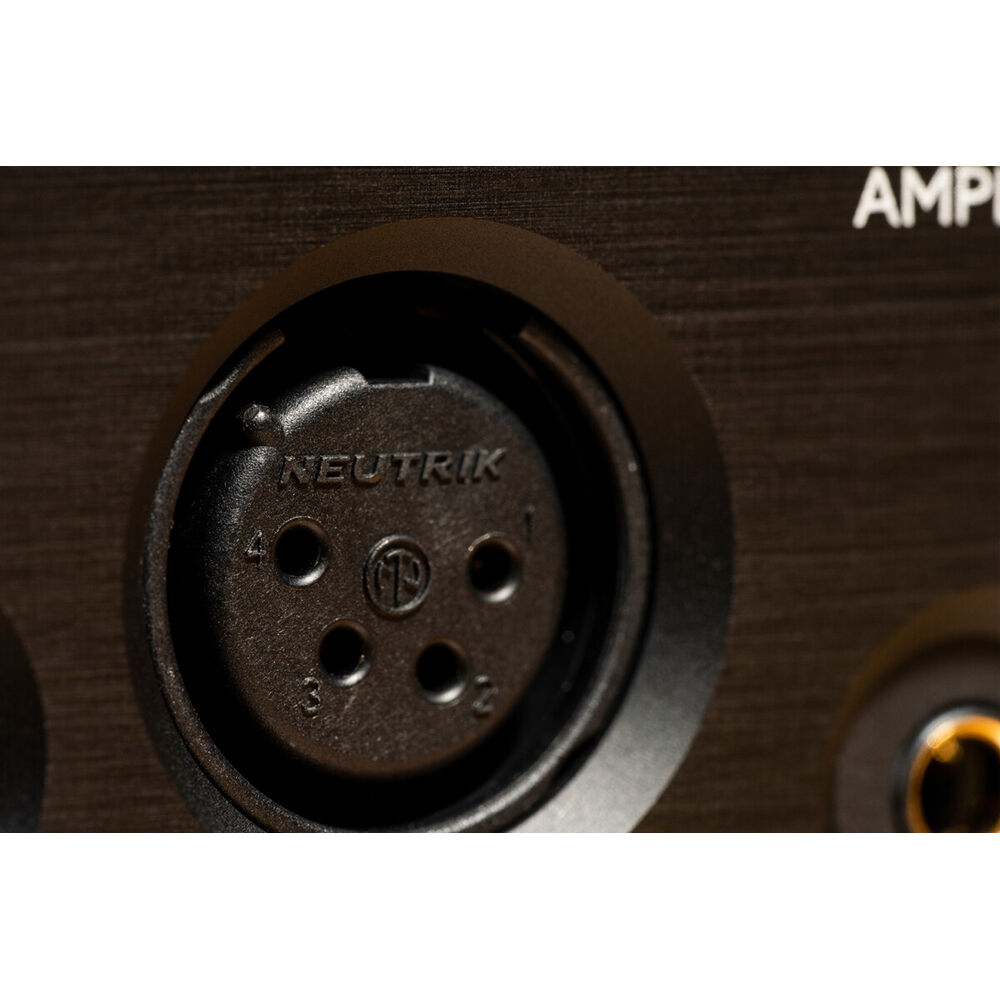

- Two balanced headphone connectors: one 4.4mm Pentaconn and one 4-pin XLR
- One unbalanced 1/4" headphone jack
- Built-in power supply with toroidal transformer
- 22,000 uF filter capacity
In the Box
- Violectric HPA V222 Headphone Amplifier
- Power Cable
- Limited 2-Year Manufacturer Warranty
Violectric DHA V222 Specs
| Number of Headphone Channels |
Single Channel
|
| Recommended Headphone Impedance |
16 to 600 Ohms
|
| Headphone Output Power |
1500 mW into 16 Ohms
2200 mW into 32 Ohms 2800 mW into 50 Ohms 3500 mW into 100 Ohms 1800 mW into 300 Ohms 900 mW into 600 Ohms |
| Analog Audio I/O |
2 x XLR 3-Pin Balanced Line Input (1 Stereo Pair)
2 x RCA Coaxial Unbalanced Line Input (1 Stereo Pair) 1 x XLR 4-Pin Balanced Stereo Headphone Output 1 x 4.4 mm 5-Pin Balanced Stereo Headphone Output 1 x 1/4" Unbalanced Stereo Headphone Output |
| Frequency Response |
5 Hz to 250 kHz -0.5 dB
|
| Power Requirements |
AC Input
|
| Number of Headphone Channels |
Single Channel
|
| Recommended Headphone Impedance |
16 to 600 Ohms
|
| Headphone Output Power |
1500 mW into 16 Ohms
2200 mW into 32 Ohms 2800 mW into 50 Ohms 3500 mW into 100 Ohms 1800 mW into 300 Ohms 900 mW into 600 Ohms |
| Digital Chipset |
Not Specified by Manufacturer
|
| EQ |
No
|
| Display |
No
|
| Analog Audio I/O |
2 x XLR 3-Pin Balanced Line Input (1 Stereo Pair)
2 x RCA Coaxial Unbalanced Line Input (1 Stereo Pair) 1 x XLR 4-Pin Balanced Stereo Headphone Output 1 x 4.4 mm 5-Pin Balanced Stereo Headphone Output 1 x 1/4" Unbalanced Stereo Headphone Output |
| Digital Audio I/O |
No
|
| USB |
No
|
| Frequency Response |
5 Hz to 250 kHz -0.5 dB
|
| Gain/Trim Range |
-18 dB to +18 dB (in 6 dB Steps, Pre-Gain)
|
| Maximum Input Level |
+21 dBu
|
| Dynamic Range |
131 dB (A-Weighted)
|
| Impedance |
Inputs:
10 Kilohms Balanced Headphone Outputs: 0 to 5 Ohms Headphone Outputs: 0 to 25 Ohms (Unbalanced) |
| THD+N |
< -100 dB / < 0.001%
< -102 dB / < 0.0008% |
| Noise |
< -102 dBu (A-Weighted)
|
| Crosstalk |
-100 dB (at 1 kHz)
|
| Damping Factor |
100 at 50 Ohms (Balanced)
200 at 50 Ohms (Unbalanced) |
| Mobile App Compatible |
No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility |
No
|
| Power Requirements |
AC Input
|
| AC Input Power |
115 to 230 VAC, 50 / 60 Hz
|
| Dimensions |
9.9 x 6.7 x 2.6" / 25.2 x 17 x 6.5 cm
|
| Package Weight |
6.3 lb
|
| Box Dimensions (LxWxH) |
13.4 x 10 x 6"
|
