Description
Violectric DHA V5902 Overview
- 1Description
- 2Powerful Amplifier and Preamplifier
- 3Versatile DAC
- 4Professional Quality Electronics

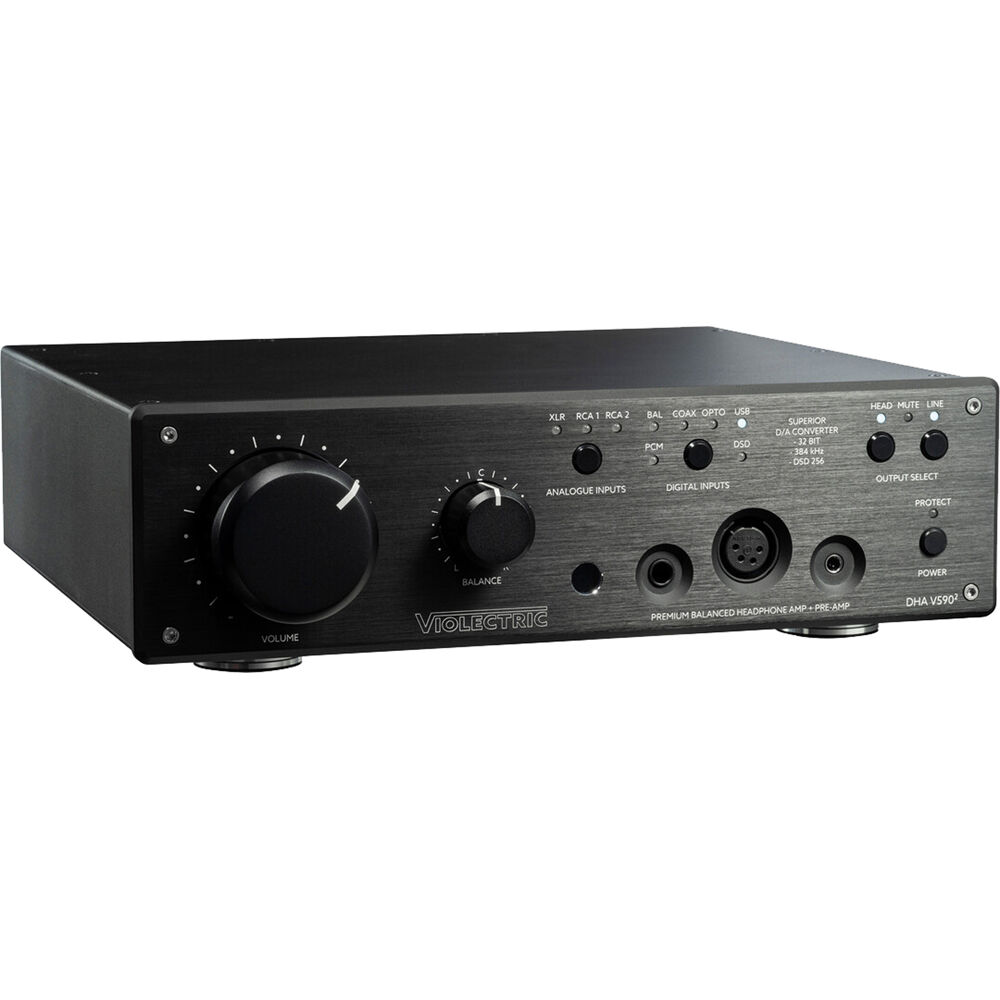

Built as a 3-in-1 studio workhorse, the DHA V590² from Violectric is a versatile D/A converter with resampling and reclocking functions, a high-quality preamplifier, and an audiophile balanced stereo headphone amplifier all at once. With support for 4- to 600-ohm headphones, this unit can drive the most demanding headphones such as planars and low-impedance dynamics, while the ESS ES9026 Pro DAC chip provides dual-mono, 32-bit floating point delta sigma, digital-to-analog conversion, with support for up to 384 kHz PCM sampling rates and DSD512 decoding.

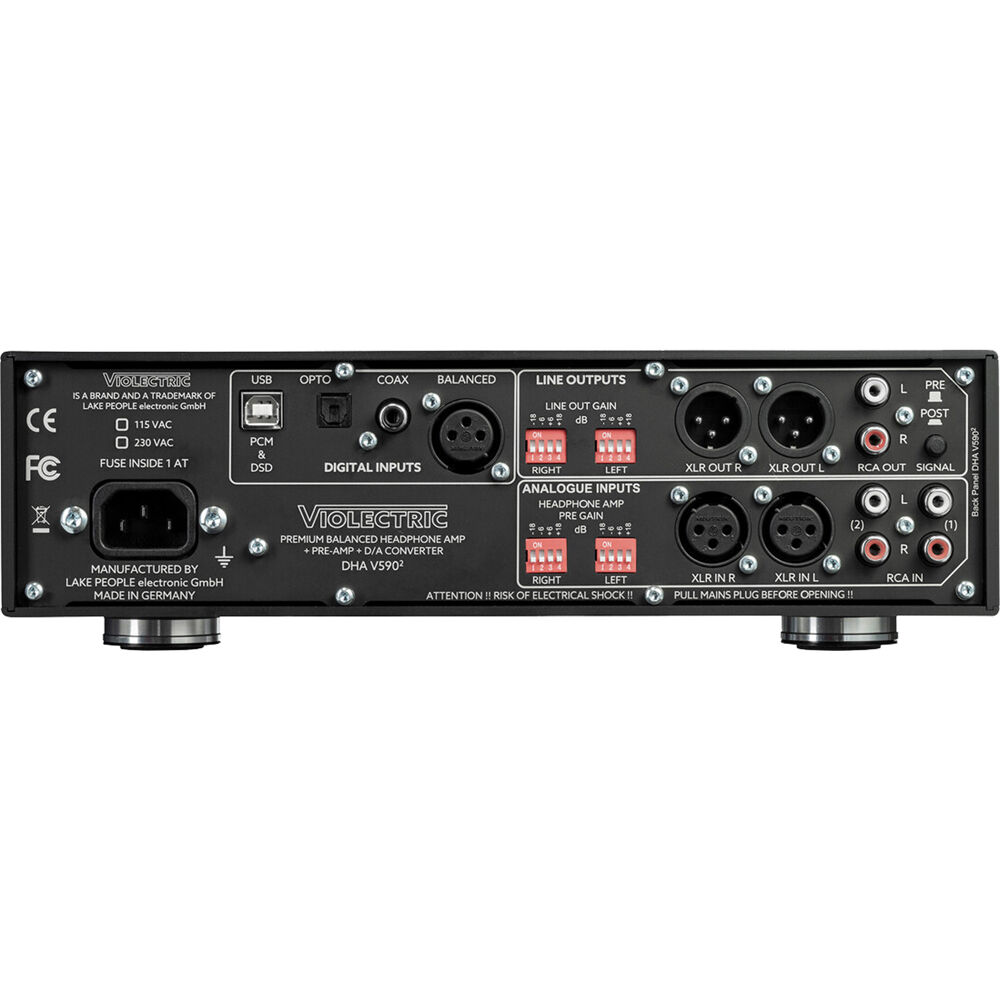

The V590² sports a plethora of I/O including balanced XLR input and output, unbalanced RCA input and output, multiple headphone outs including 1/4", 3.5mm, and a true balanced XLR 4-pin out, and four digital inputs: XLR 3-pin AES, RCA coaxial, TOSLINK optical, and USB-B, which provides the highest available sampling rate. With versatile functions like pre- and post-fader selection, five modes of resampling with a femto-scale atomic sync clock, pre-gain DIP switches, and a standard Alps RK 27 volume pot, it has never been simpler to control your signals. The unit also comes with a convenient infrared remote control.
Powerful Amplifier and Preamplifier
With three analog input paths and five output paths, you have plenty of options for your analog signal routing. The V590² is designed to be operated as either a headphone amplifier or a loudspeaker preamplifier, with selectable inputs and outputs, as well as pre or post gain routing. Protective circuits also help to avoid overloads.
- Balanced XLR inputs, balanced XLR outputs
- Two unbalanced RCA stereo input pairs, one unbalanced RCA stereo output pair
- Balanced XLR 4-pin stereo headphone output with wide ranging impedance support
- Extra 1/4" and 3.5mm headphone outputs
- Analog I/O selection as well as digital input selection
- Pre- or post-gain routing selection
- Rear panel DIP switches for pre-gain control up to ±18 dB
Versatile DAC
The V590² sports powerful DAC hardware via its ESS-based ES9026 Pro DAC chip, which supports 32-bit resampling and reclocking, with a huge 180 dB dynamic range. The DAC can accept any signal down to 16-bit and expand it to 32-bit for higher quality audio and avoidance of clipping. The internal atomic clock is accurate down to 80 femtoseconds, utterly eliminating any jitter in the resampling process. All digital signals can be expanded to 32-bit, and through USB, sample rates as high as 384 kHz PCM and DSD512 can be achieved.
Professional Quality Electronics
The V590² is built to the highest standards with top-grade electronics. From high-quality resistors to reliable controls and connectors, this desktop unit is built to last for years of continuous studio use.
- 52 transistors, 24 high-quality audio op-amps in the signal path
- High-grade MKP capacitors
- 0.1 to 1% Metallfilm resistors
- Large filter capacity of >35,000 uF
- Two toroidal transformers, 25 + 25W
- Alps RK 27 motorized volume control, RK 27 balance control
- Neutrik gold-plated XLR 4-pin headphone connector, Neutrik silver-plated 1/4" headphone connectors
- Delayed relay-based headphone output during power on or instant cut-off of power
- Rugged black anodized aluminum chassis
In the Box
- Violectric DHA V590² Headphone Amplifier, Preamp, and DAC
- Remote Control
- Power Cord
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Powerful Amplifier and Preamplifier
- Versatile DAC
- Professional Quality Electronics
Violectric DHA V5902 Specs
Key Specs
| Form Factor |
Desktop
|
| Converter Type |
D/A Converter
|
| Number of Channels |
1 x D/A (at 48 kHz)
|
| Maximum Sampling Rate |
384 kHz / 32-Bit (PCM)
|
| Number of Microphone Inputs |
2 Preamps
|
| Analog Audio I/O |
2 x XLR 3-Pin Balanced Line Input
1 x Stereo RCA Coaxial Unbalanced Line Input 2 x XLR 3-Pin Balanced Line Output 2 x Stereo RCA Coaxial Unbalanced Line Output 1 x XLR 4-Pin Balanced Headphone Output (Front Panel) 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel) 1 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output (Front Panel) |
| Digital Audio I/O |
1 x XLR 3-Pin AES3 Input
1 x RCA Coaxial AES3 Input 1 x TOSLINK Optical ADAT Input |
| Converter Type |
D/A Converter
|
| Number of Channels |
1 x D/A (at 48 kHz)
|
| Conversion Formats |
AES3, TOSLINK
|
| Converter Circuitry |
D/A Chipset:
1 x |
| Display |
No
|
| Maximum Sampling Rate |
384 kHz / 32-Bit (PCM)
|
| Number of Microphone Inputs |
2 Preamps
|
| Expansion Slots |
No
|
| Gain/Trim Range |
0 dB to +6 dB
-18 dB to +18 dB (Pre-Gain DIP Switches) |
Connectivity
| Analog Audio I/O |
2 x XLR 3-Pin Balanced Line Input
1 x Stereo RCA Coaxial Unbalanced Line Input 2 x XLR 3-Pin Balanced Line Output 2 x Stereo RCA Coaxial Unbalanced Line Output 1 x XLR 4-Pin Balanced Headphone Output (Front Panel) 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel) 1 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power |
No
|
| Digital Audio I/O |
1 x XLR 3-Pin AES3 Input
1 x RCA Coaxial AES3 Input 1 x TOSLINK Optical ADAT Input |
| Host Connection / USB |
No
|
| USB (Non-Host) |
1 x USB-B (Digital Input)
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
Performance
| Frequency Response |
5 Hz to 250 kHz -0.5 dB
|
| Maximum Input Level |
+21 dBu
|
| Maximum Output Level |
+21 dBu
|
| Headphone Output Power |
700 mW into 4 Ohms
1300 mW into 8 Ohms 2000 mW into 16 Ohms 4700 mW into 32 Ohms 6400 mW into 50 Ohms 4300 mW into 100 Ohms 1450 mW into 300 Ohms 740 mW into 600 Ohms |
| Impedance |
Line Inputs:
10 Kilohms Line Outputs: < 1 Ohm |
| Dynamic Range |
Analog:
> 131 dBA Digital: 180 dB |
| THD+N |
< -102 dB / < 0.0008% (At 1 kHz, 2 x 10V, 100R = 1W)
< -100 dB / < 0.001% (At 1 kHz, 2 x 4V, 32R = 0.5W) |
| Crosstalk |
-105 dB (At 1 kHz)
-100 dB (At 15 kHz) |
Digital Audio
| Sample Rates |
Up to 384 kHz (PCM)
|
| Sample Rate Conversion |
On Digital Inputs
|
| Bit Depths |
Up to 32-Bit Float (PCM, Delta-Sigma)
|
| Digital Audio Decoding |
DSD, PCM
|
| Sync Sources |
AES3, Atomic Clock
|
| Clocking |
Atomic Clock:
|
Compatibility
| OS Compatibility |
Windows
macOS Linux Android *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software |
No
|
| Supported Drivers/API & Plug-Ins |
macOS Class-Compliant (No Driver Needed)
|
| App Compatible |
No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility |
Android Tablet
|
Power
| Power Requirements |
AC Input
|
| AC Input Power |
115 to 230 VAC, 50 / 60 Hz (T 1 A)
|
| Power Consumption |
50 VA
|
Physical
| Certifications |
WEEE
*as per Manufacturer |
| Dimensions |
11.4 x 11.1 x 3.5" / 29 x 28.2 x 9 cm (with Feet)
|
