Description
Vinten Osprey Elite S OB with Versine 360 Hea... Overview
The Osprey Elite S OB 2-Stage Steering Pedestal System with Versine 360 Fluid Head from Vinten outfits you with a heavy-duty pedestal system with a detachable skid and fluid head. The entire system can support loads up to 177 lb and features a working height range of 34.6 to 65". The fluid head has a sliding quick release plate and a multi-standard base for wide compatibility.

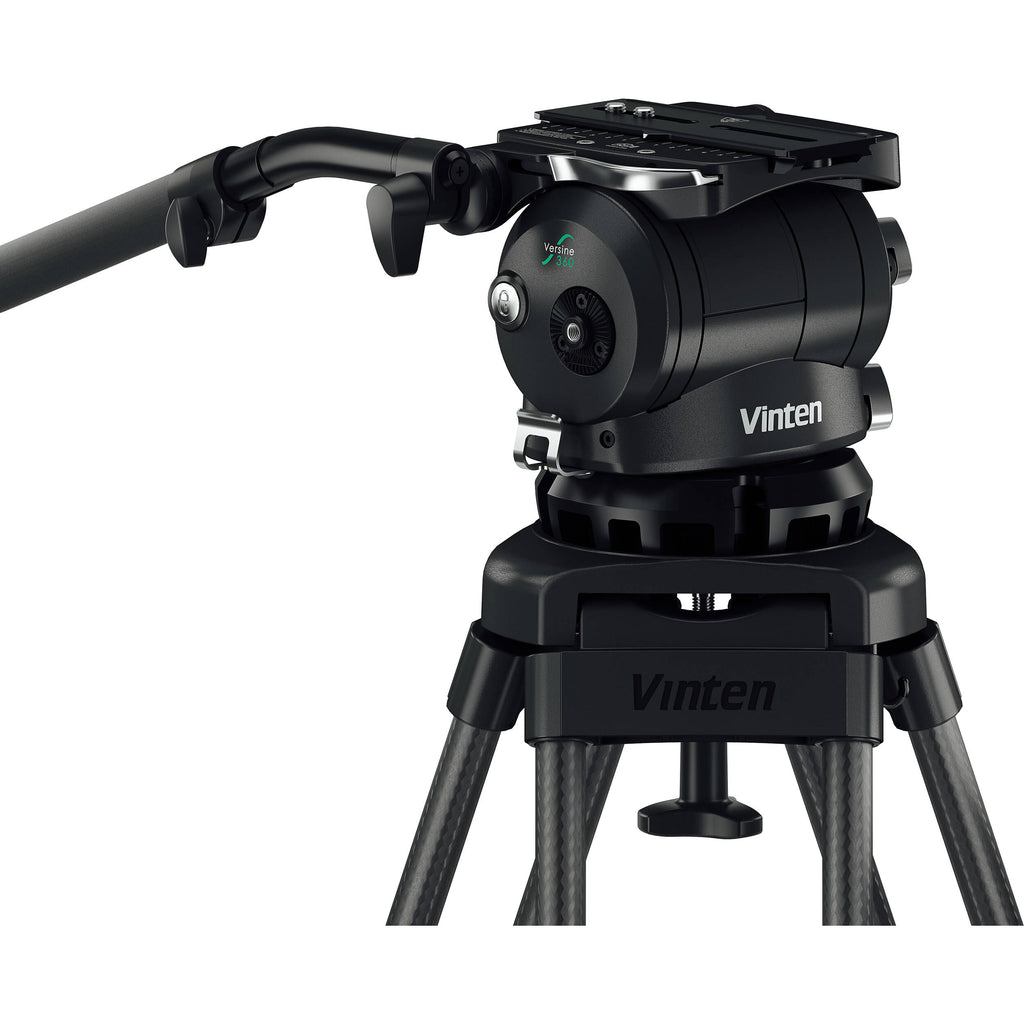

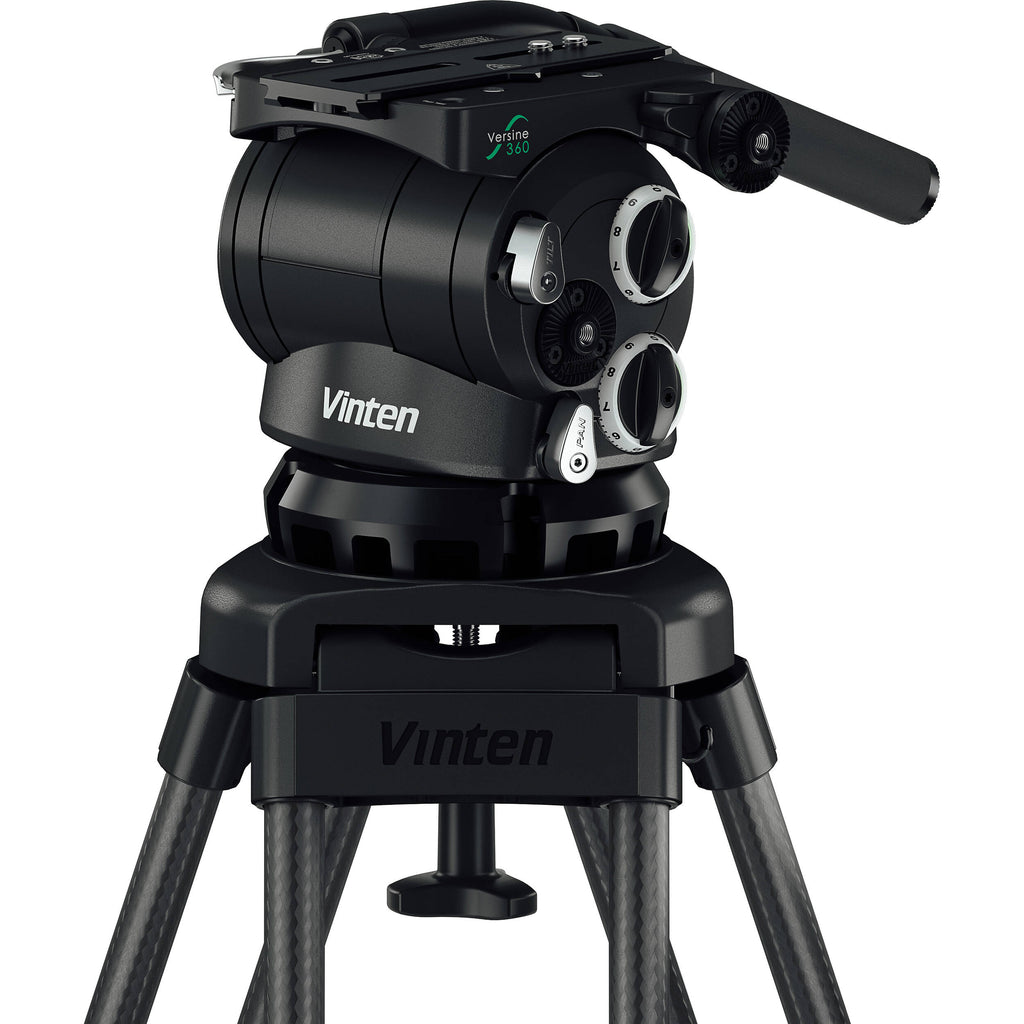

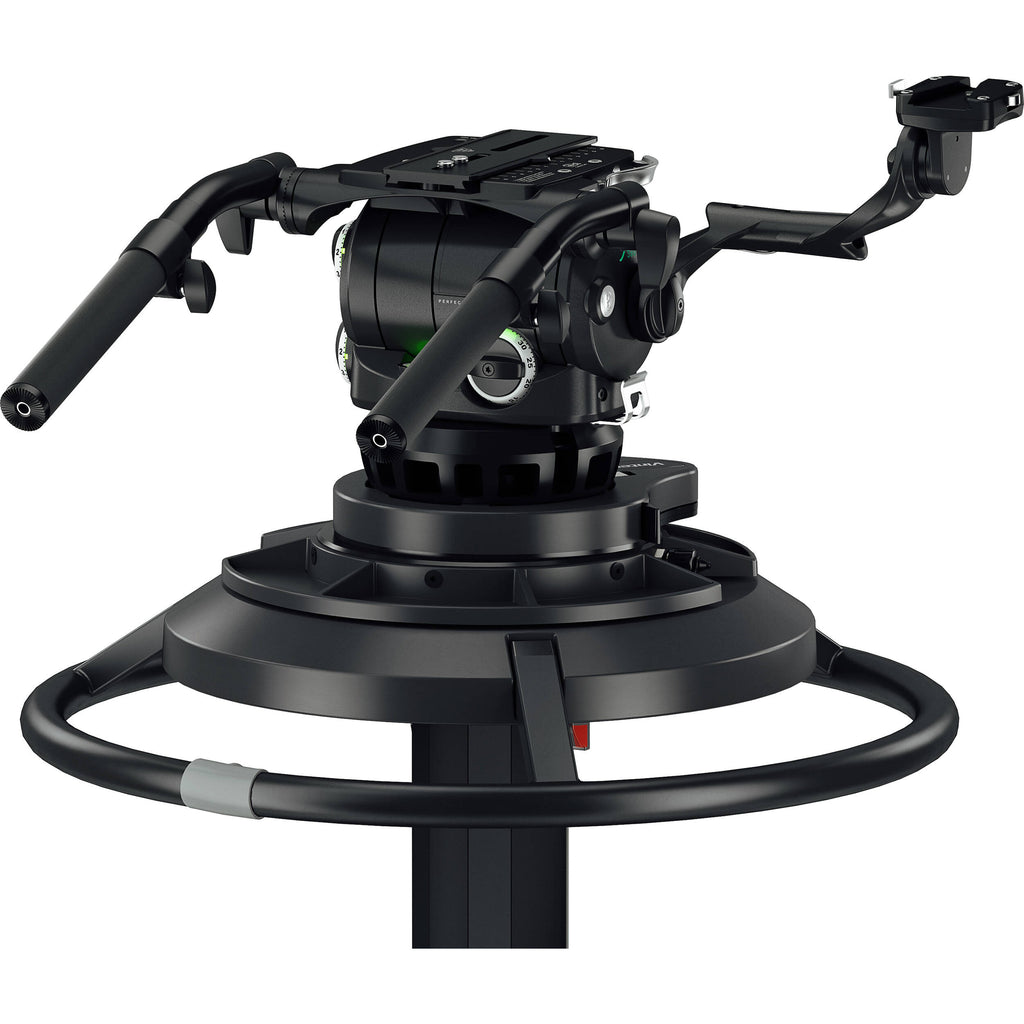

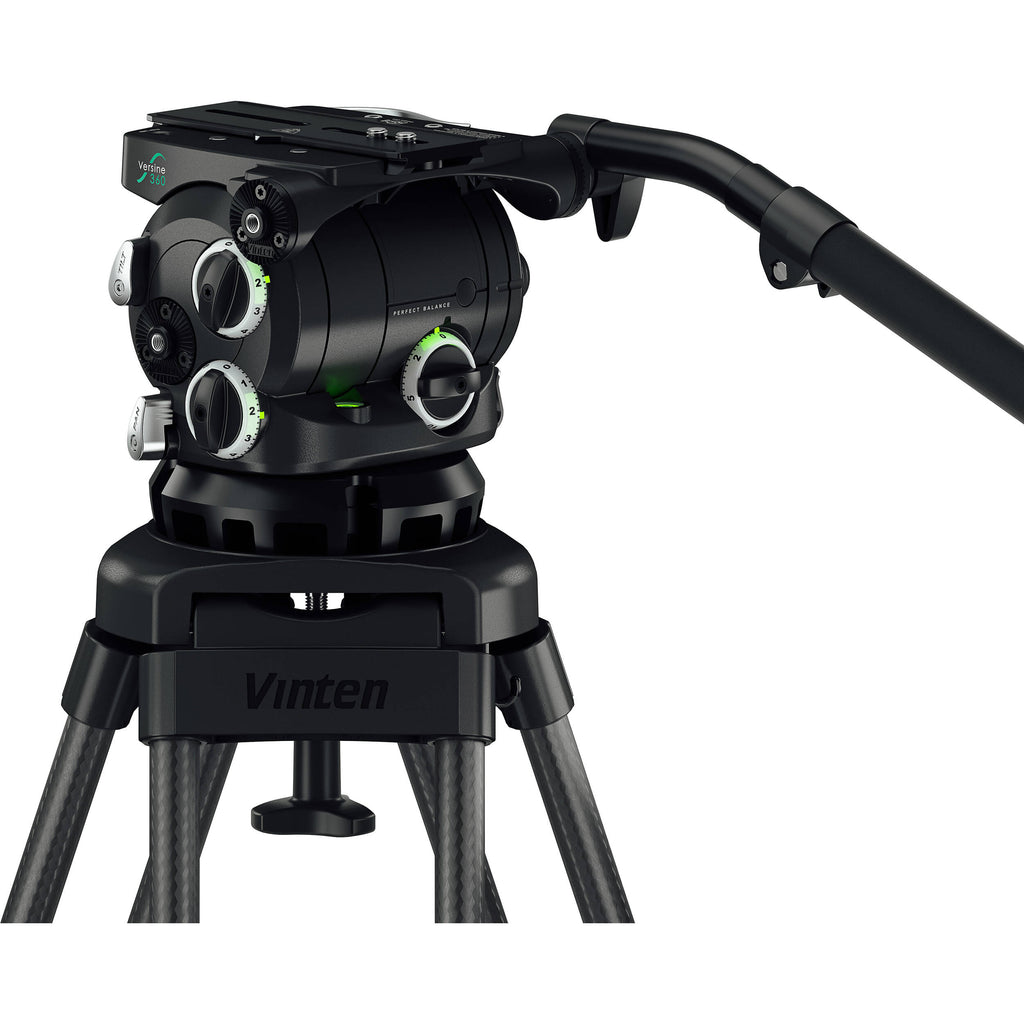

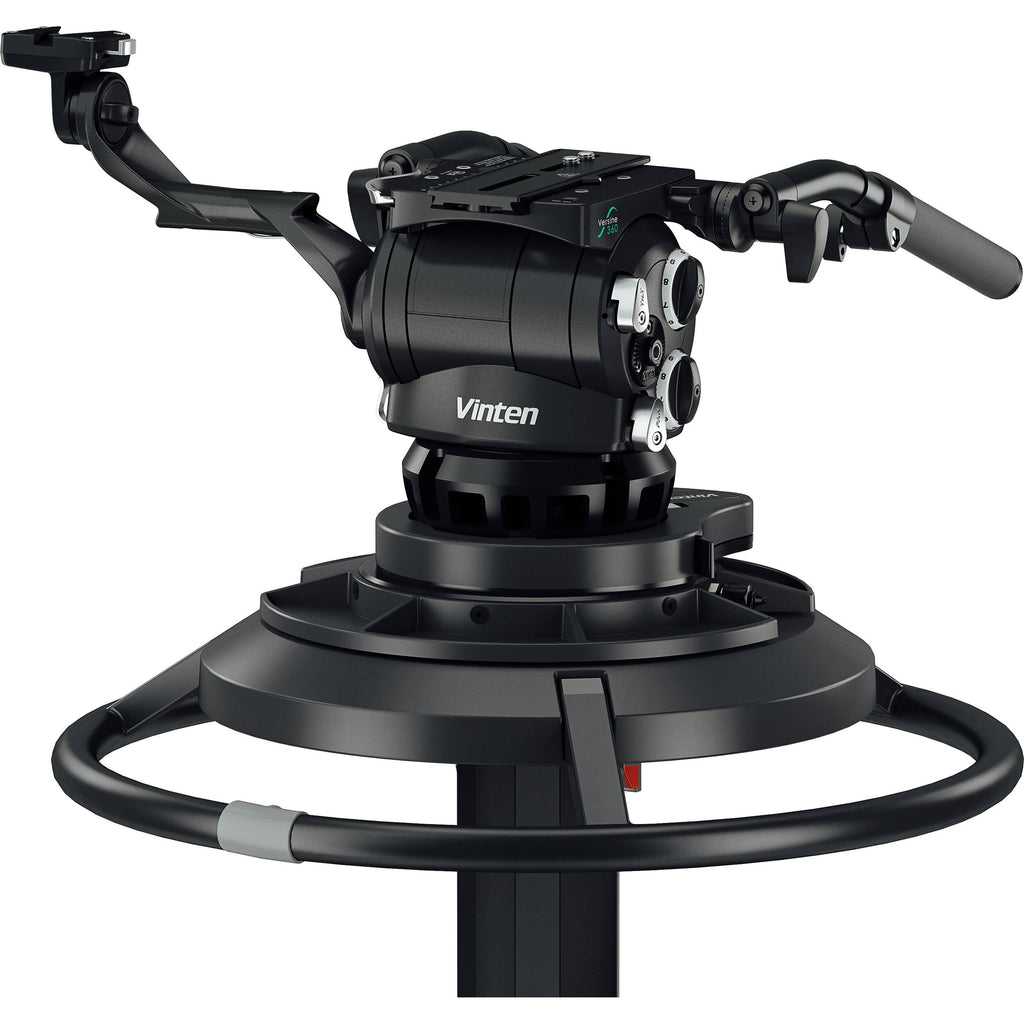

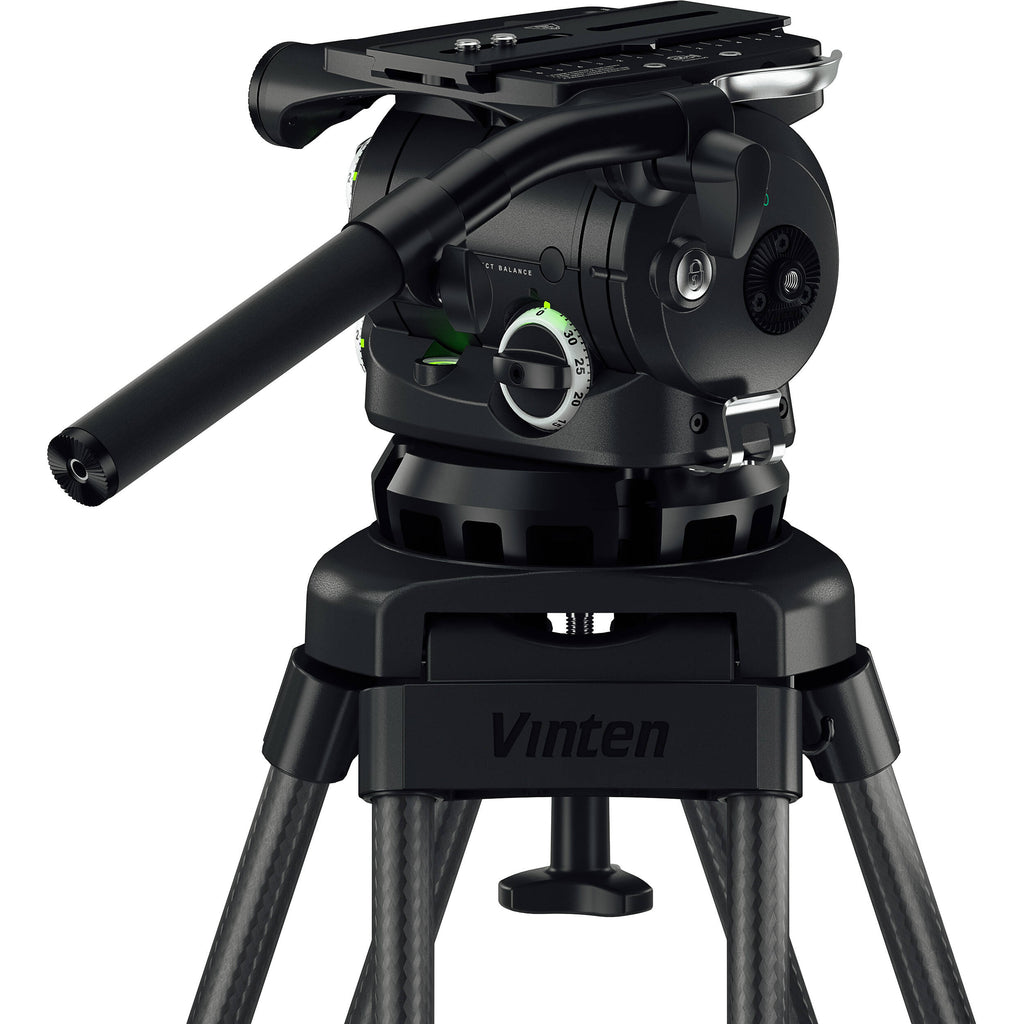

Facilitate smooth pan and tilt movements with heavy-duty camera rigs using the Vinten Versine 360 Fluid Head, thanks to its 88 lb load capacity. The head features a sliding quick release plate capable of supporting heavy loads and with a balancing range of 4.9". Secure your rig to the fluid head using the integrated 3/8"-16 screws.
A continuous counterbalance helps stabilize most loads, and Thin Film drag allows for precise control at any speed. The head has a multi-standard base with a 4-bolt flat base, Quickfix, 100mm, and 150mm bowl compatibility. Four mounting rosettes allow you to attach the included telescopic pan handle or accessory arm to either side of the fluid head. An illuminated bubble level ensures your rig remains level.

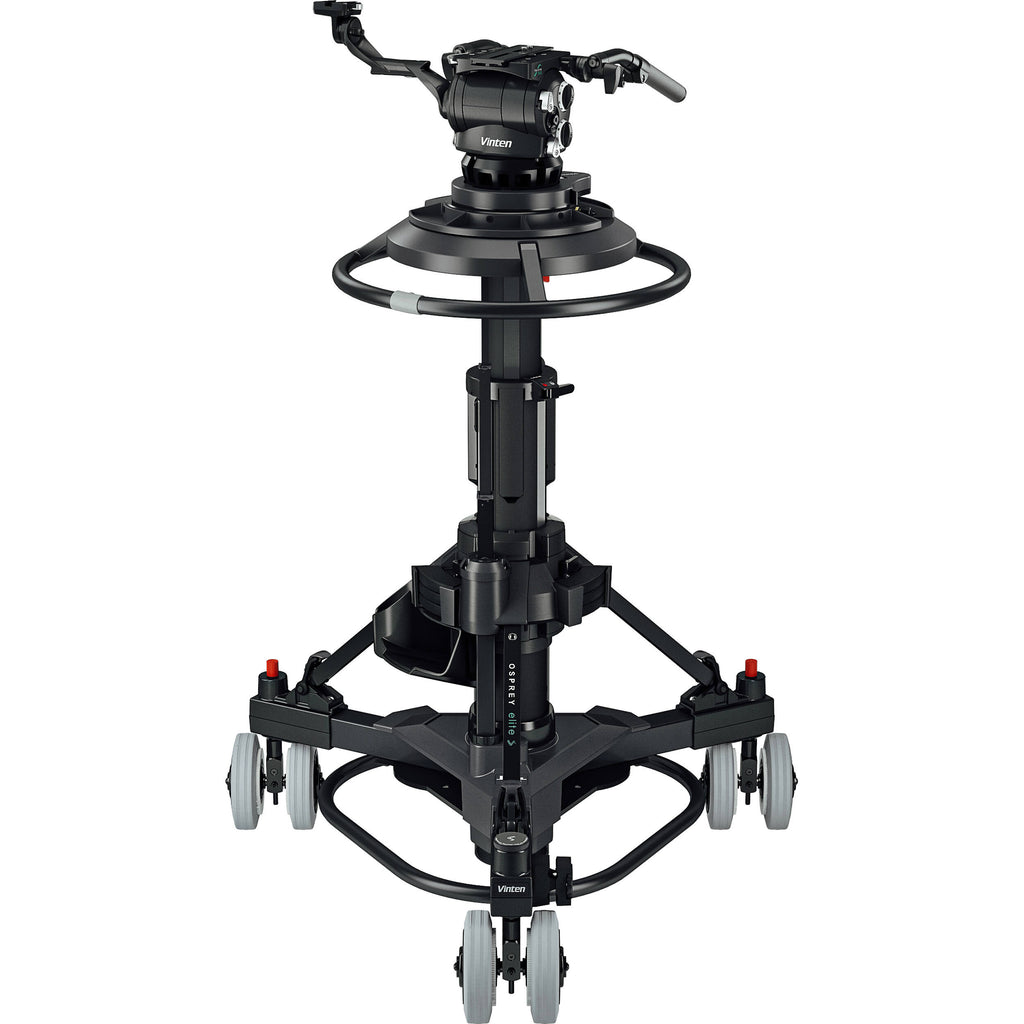

The Osprey Elite S 2-Stage Steering Pedestal (OB) from Vinten is a portable outside broadcast pedestal designed for large payloads up to 177 lb, ideal for supporting large Vinten Vector heads, digital cinema and broadcast cameras, and full-size professional teleprompters. A detachable skid allows the unit to easily break down into two sections for transportation and storage.
A manual pump and an inlet valve allow quick setup and easy balancing, while single- and all-wheel crab steering support lets you swiftly move in tight spaces and on shot direction changes. Sturdy 6.2" wheels make the pedestal ideal for greater ground clearance in exterior broadcast and film production applications.
- Full, 2-stage balance range for total 'on shot' elevation, perfect for moving from seated to standing talent in game shows, entertainment shows, drama, and performances
- Built-in pressure gauge for easy counterbalance setup
- Wheel rim braking mechanism eliminates tire flat spots for super-smooth rolling shots
- Pedestal supplied with a Quickfix quick release system and operator storage area
- Column can be adapted to work on a dolly track
The Broadcast Telescopic Pan Bar from Vinten works with most tripod systems to facilitate smooth pan and tilt motions with your fluid head. The bar secures to your fluid head via a rosette and is backwards compatible with Vision pan bar rosettes. It extends to cover a length range of 10.8 to 16.3", making it ideal for zoom and focus control configurations.
The Vinten 3761-3 EFP Quickfit Automatic Camera Adapter provides a quick release fixing for EFP cameras weighing up to 100 lb. It is recommended for Vision 250, Vector 430S, and Vector 430/430i fluid heads.
Items Included
- Vinten Versine 360 Fluid Head
- Vinten Broadcast Telescopic Pan Bar
- Vinten Versine Camera Plate
- Vinten Versine Accessory Mounting Arm
- Vinten 3330-30 Bowl Clamp Knob Assembly
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year - Vinten Osprey Elite S 2-Stage Steering Pedestal (OB)
- Quickfix Quick Release System
- Accessory Holder
- Manual Pump
- Kick Ring
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year - Vinten Broadcast Telescopic Pan Bar
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year - Vinten 3761-3 EFP Quickfit Automatic Camera Adapter
- 3761-13 Wedge Plate
- Limited 90-Day Manufacturer Warranty
Additional Resources
No additional resources available
Vinten Osprey Elite S OB with Versine 360 Hea... Specs
| Camera Mounting |
Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Quick Release w/ Sliding Balance Plate)
|
| Head Type |
Fluid Head
|
| Load Capacity |
88.2 lb / 40 kg
|
| Weight |
13.9 lb / 6.3 kg
|
| Camera Mounting |
Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Quick Release w/ Sliding Balance Plate)
|
| Head Type |
Fluid Head
|
| Base Mount |
Proprietary
|
| Counter Balance |
Continuous
|
| Dimensions |
Camera Plate: 4.7 x 0.4" / 12.00 x 1.0 cm
Height: 7.7" / 19.5 cm Width: 7.6" / 19.4 cm |
| Vertical Tilt |
+90° to -90°
|
| Load Capacity |
88.2 lb / 40 kg
|
| Accessory Mounting |
4x Pan Handle Fitting
|
| Bubble Level |
Yes (Illuminated)
|
| Weight |
13.9 lb / 6.3 kg
|
Vinten Osprey Elite S OB with Versine 360 Hea... Specs
| On Shot Stroke |
30.3" / 77 cm
|
| Head Fitting |
Flat Base
|
| Height |
2.2 to 4.8' / 0.69 to 1.46 m
|
| Clearance |
Ground: 13.5" / 34.50 cm
|
| Tracking Width |
37" / 94 cm
|
| Transit Doorway Width |
27.5" / 70 cm
|
| Steering Ring Diameter |
21" / 53.5 cm
|
| Wheel Diameter |
6.2" / 16 cm
|
| Wheel Lock |
Single-Point
|
| Load Capacity |
176.4 lb / 80 kg
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
111.3 lb / 50.5 kg
|
Vinten Osprey Elite S OB with Versine 360 Hea... Specs
| Compatibility |
Vinten Vision Pan Bar Rosettes
|
| Mounting |
1x Rosette
|
| Dimensions |
10.8" / 27.5 cm (Minimum Length)
16.3" / 41.5 cm (Maximum Length) 1.1" / 28 mm (Diameter) |
| Weight |
12.35 oz / 0.35 kg
|
Vinten Osprey Elite S OB with Versine 360 Hea... Specs
| Camera Fixing |
2 x 3/8"-16 on Wedge
|
| Head Fixing |
3 x 3/8"-16 Threaded Holes on Center Line
|
| Load Capacity |
100.0 lb / 45.3 kg
|
| Weight |
1.54 lb / 698.5 g
|
| Package Weight |
2 lb
|
| Box Dimensions (LxWxH) |
7.6 x 6 x 1.2"
|
