Description
Viltrox DC-L1 Overview
The lightweight

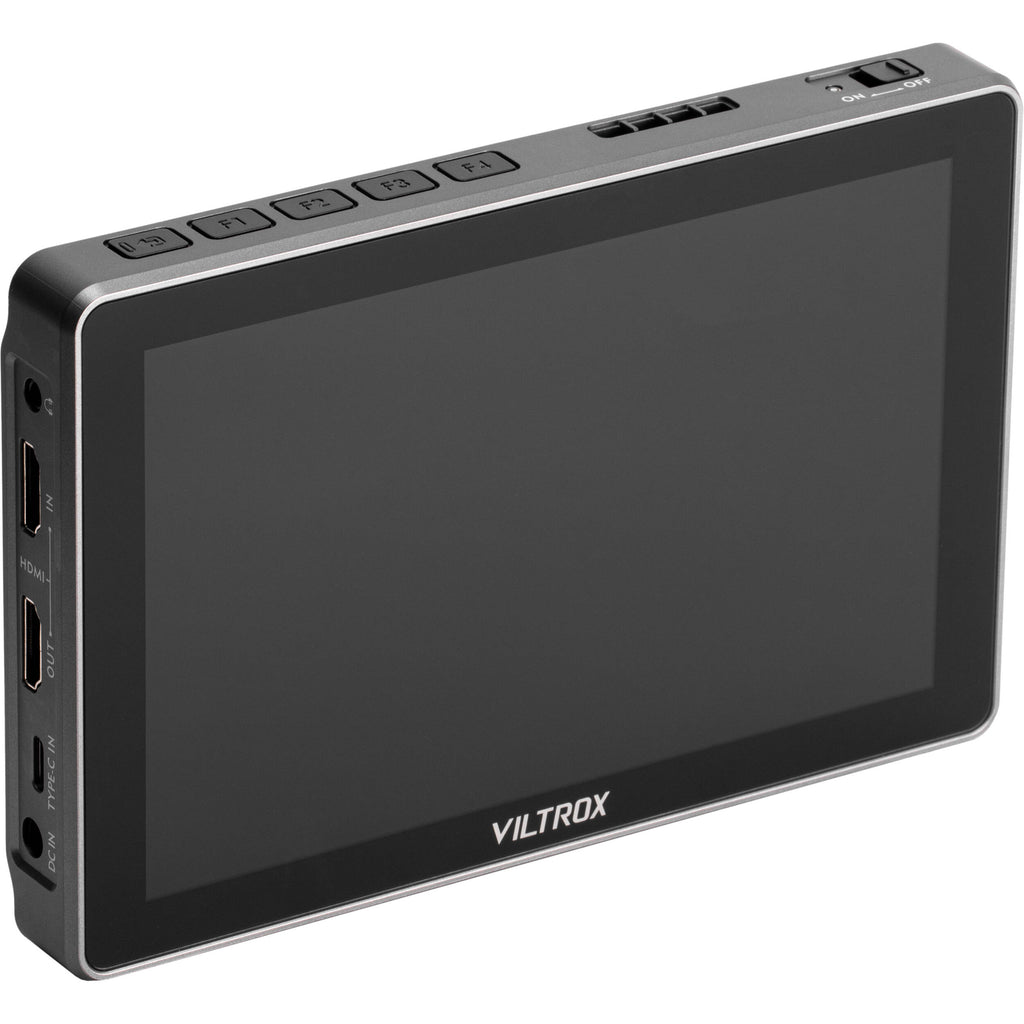

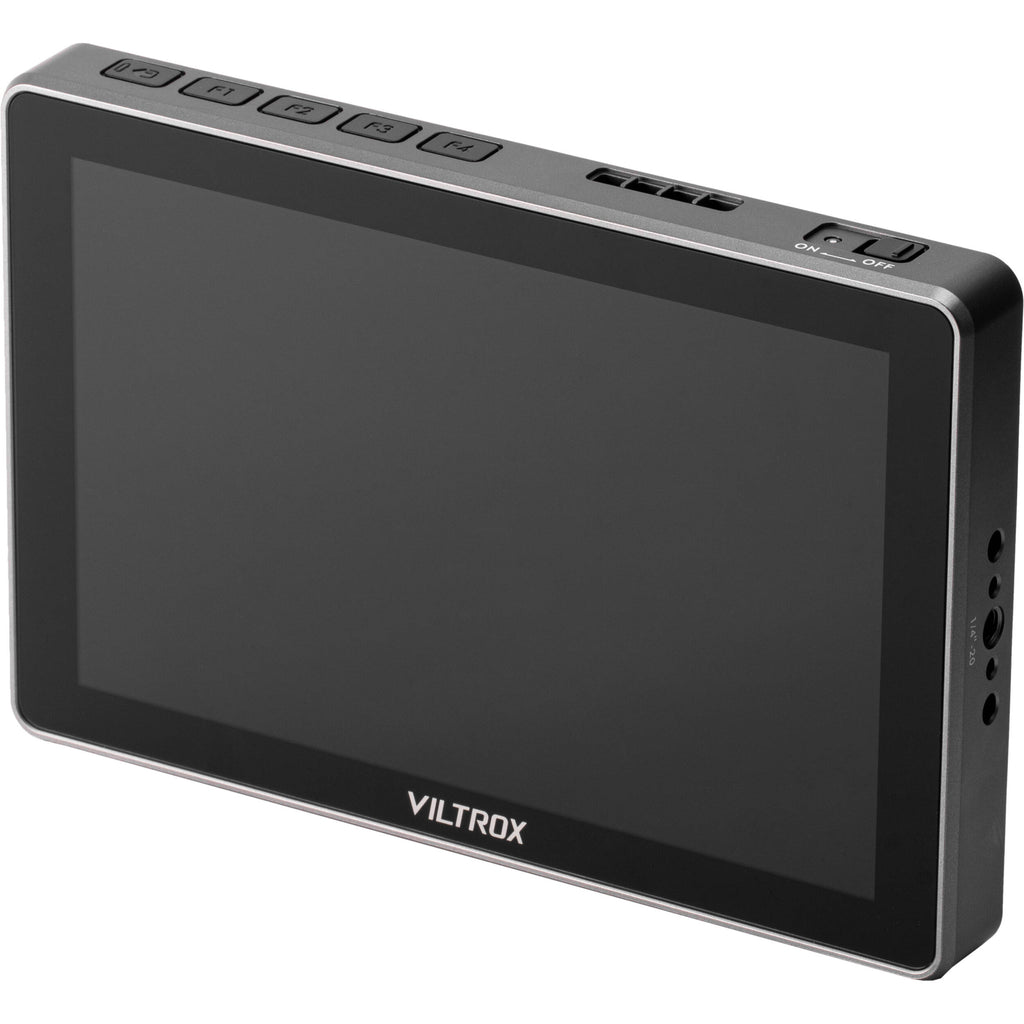

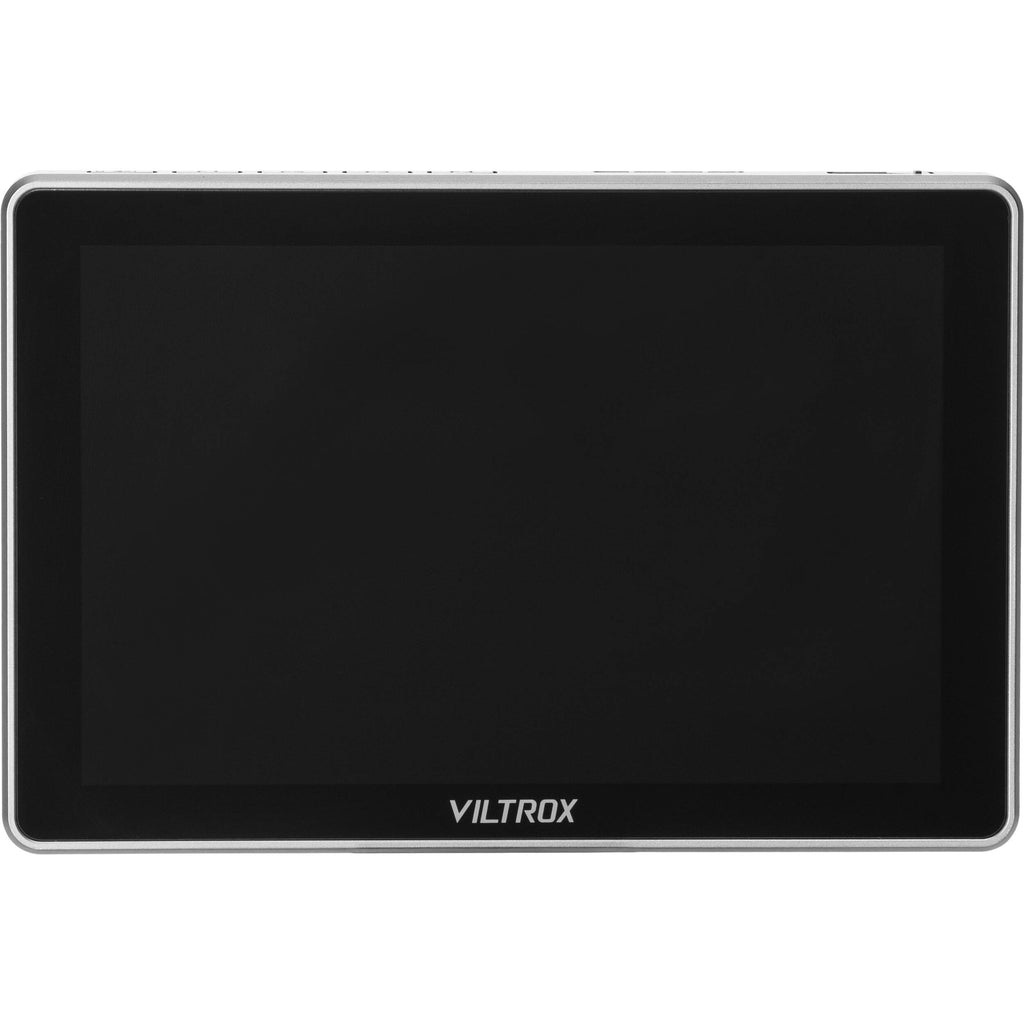

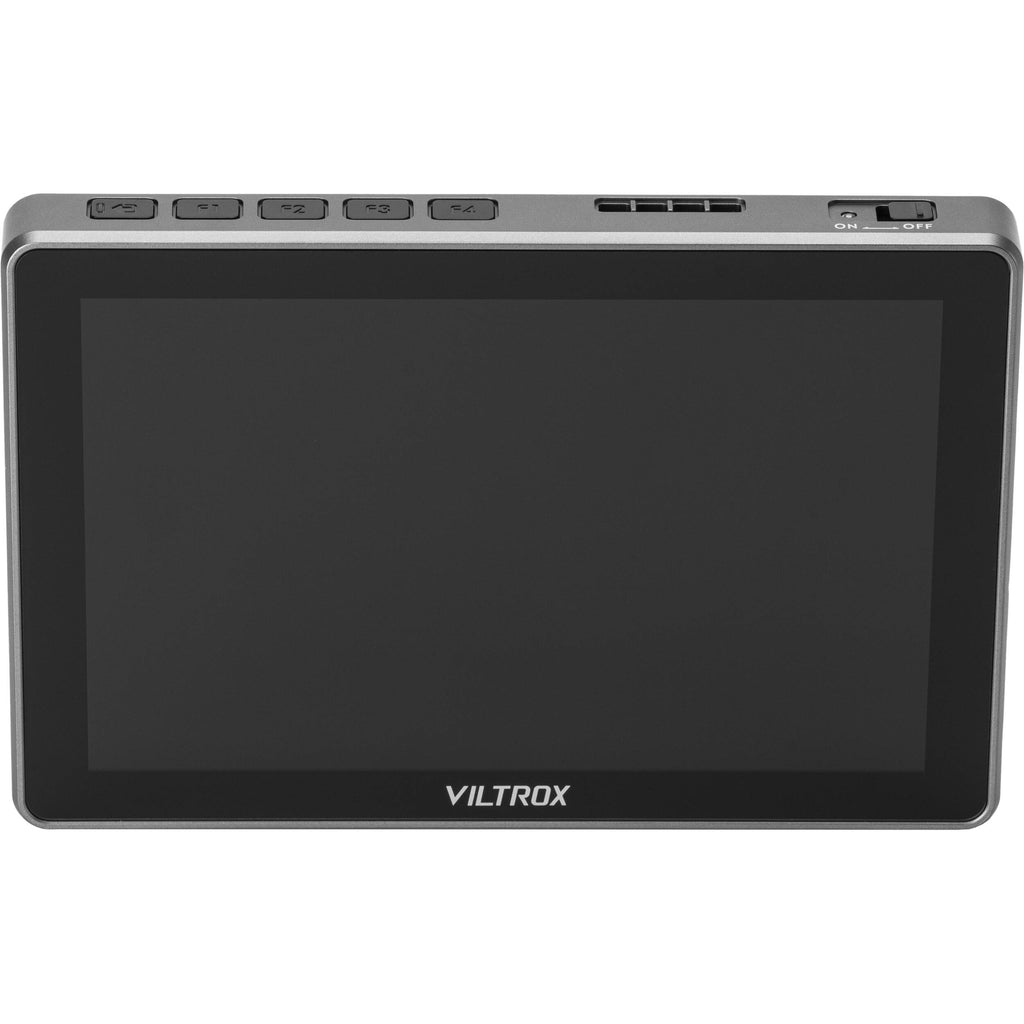

DC-L1 7" HDMI On-Camera Touchscreen Monitor from
Viltrox provides professional monitoring in a sharp 7" display suitable for outdoor use with a 1280 x 800 resolution. The DC-L1 supports up to DCI/UHD 4K video input via mini-HDMI. It provides an HDMI loop-through output to send video to another monitor. Other features include custom 3D LUTs, L-series and USB power options, and multiple included accessories.
High-Resolution Display
Daylight-viewable 7" on-camera LCD touchscreen monitor with a 1280 x 800 resolution that supports up to DCI/UHD 4K input via HDMI.
Input/Output
The monitor inputs up to DCI/UHD 4K60 video via HDMI and it can output using the HDMI loop output.
There's also a USB port to import 3D LUTs and to update firmware. You can import up to 20 custom 3D LUT files.
Image Tools
The monitor features numerous built-in image tools that assist in managing your image, including focus, brightness histogram, false color, screen focus, anamorphic de-squeeze, and more.

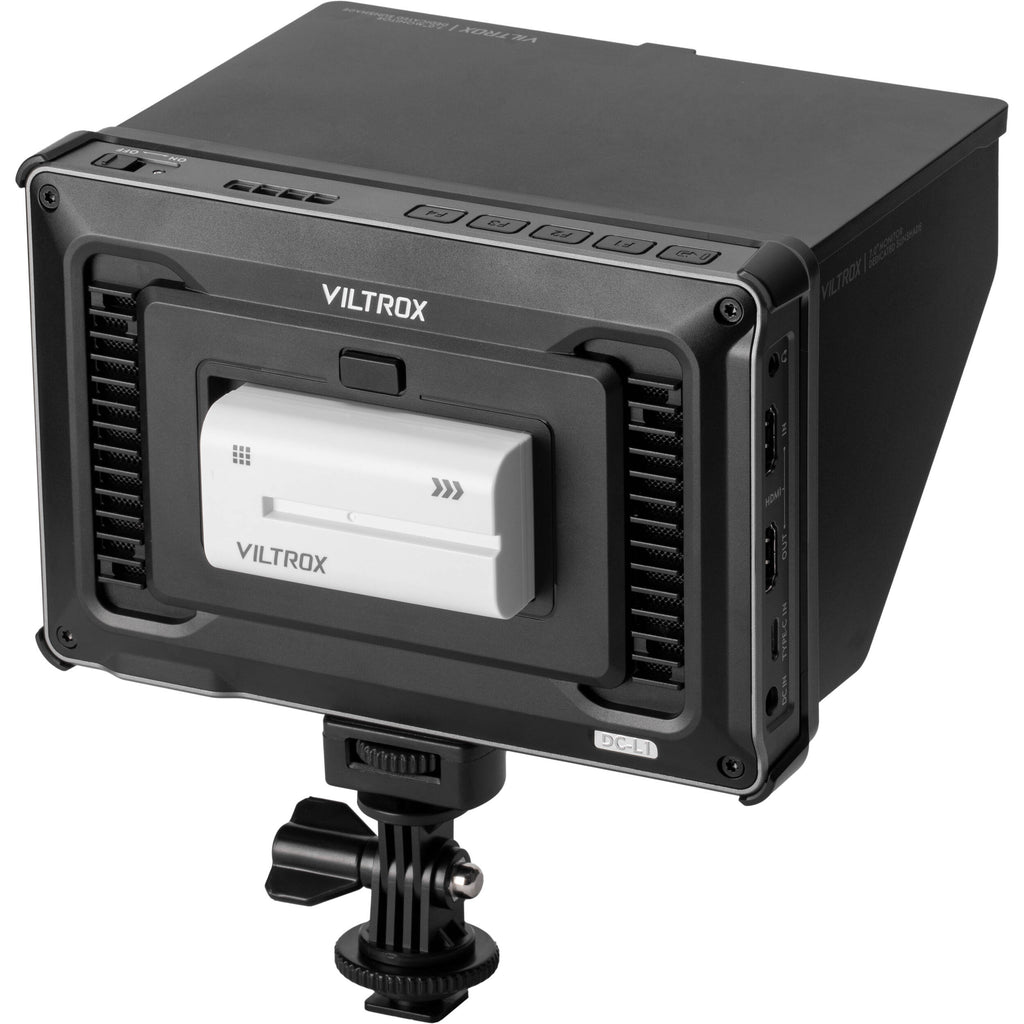

Power Options
The monitor powers using an L-series-type battery or via a separately available USB-C or DC barrel power supply.
Supported L-series battery types include NP-F550, F750, and F970.
Built-In Gyroscope
A built-in gyroscope provides auto-detection of whether your screen is flipped up or down, and it will flip the image accordingly, making switching camera positions easy.
Mounting Options
There are 1/4"-20 threads on one side and on the bottom that allow you to mount the monitor onto a cage, directly on a camera, or utilize various accessories such as the included shoe adapter mount or an optional magic arm or tilt mount.
Accessories

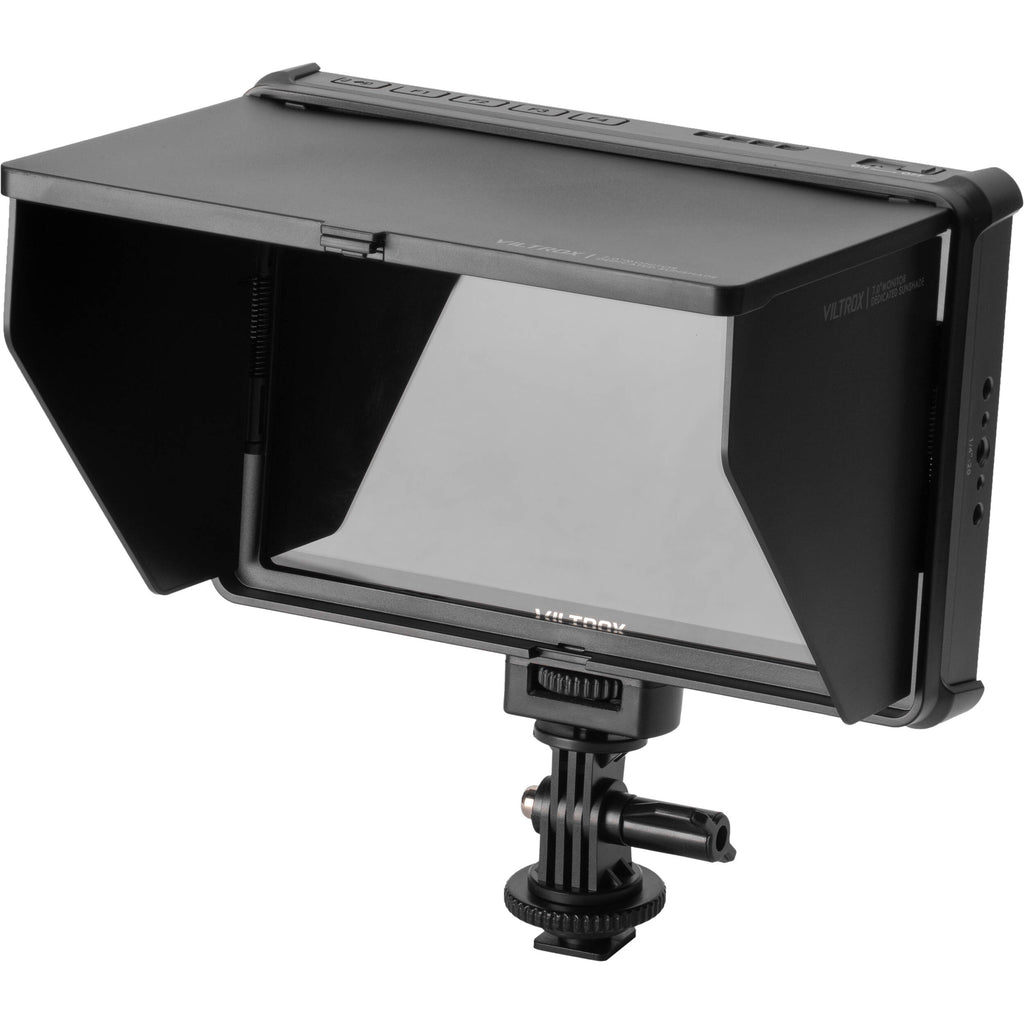

Includes a sun hood, an L-series battery, a shoe adapter mount, a soft storage pouch, a screen protector, a USB-A to USB-C cable, an HDMI type A to HDMI type A cable, and an HDMI type A to mini-HDMI cable.
UPC: 784365599583

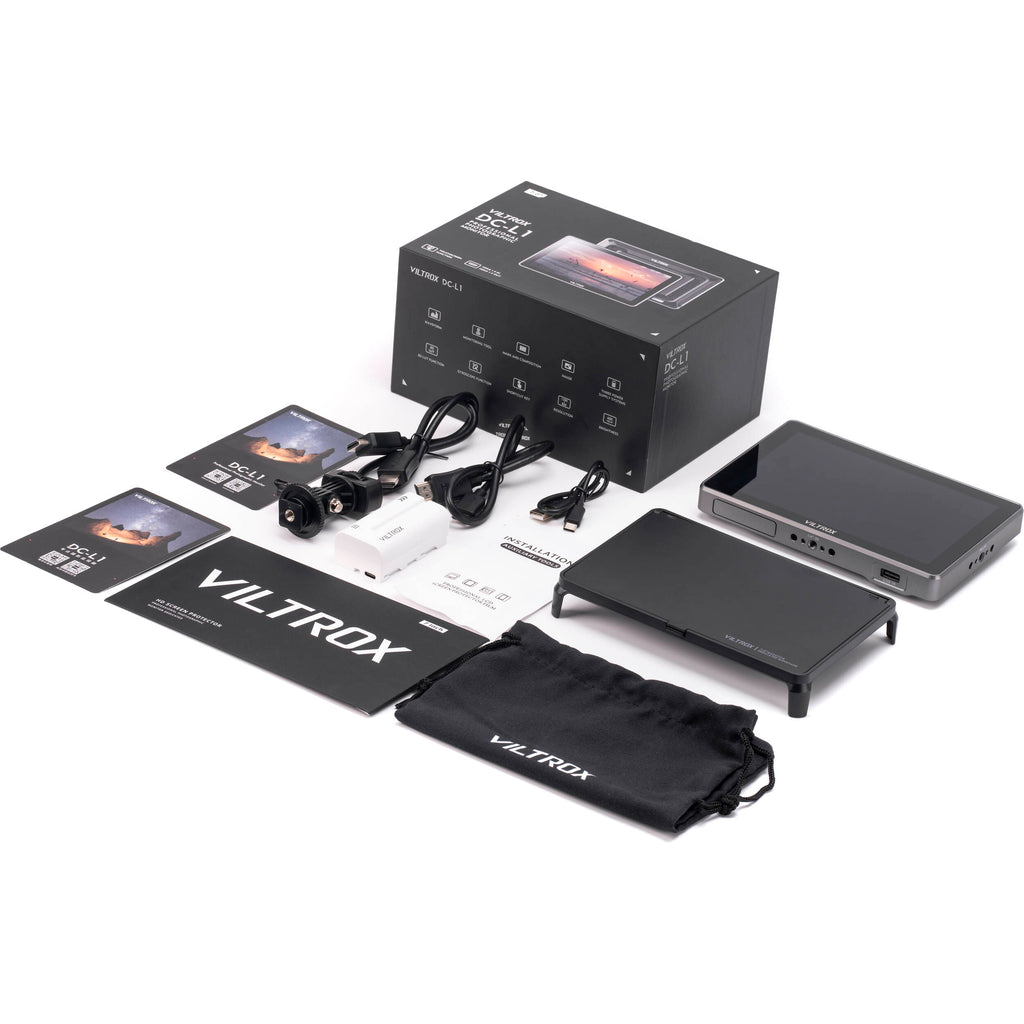

Items Included
- Viltrox DC-L1 7" HDMI On-Camera Touchscreen Monitor
- Shoe Mount Adapter
- HDMI Type A to Mini-HDMI Cable
- HDMI Type A Cable
- USB-C to USB-A Cable
- L-Series Battery
- Screen Protector
- Sun Hood
- Storage Bag
- Limited 1-Year Manufacturer Warranty
Additional Resources
Viltrox DC-L1 Specs
Key Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1280 x 800
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K UHD 4K 1080p 1080i 720p 576p 480p 576i 480i |
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
8 W
|
Display
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1280 x 800
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
170?
|
| Touchscreen |
Yes
|
| Maximum Brightness |
600 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support |
No
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Histogram, Image Flip, Image Rotate, Overscan, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
|
Inputs/Outputs
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (18 VDC / 2 A) Input
1x USB-C (20 VDC / 3 A) Input |
| Other I/O |
1x USB-A (Firmware/LUT Upload)
|
| Media/Memory Card Slot |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K UHD 4K 1080p 1080i 720p 576p 480p 576i 480i |
Power
| Input Power |
10 to 18 VDC at 2 A
9 to 20 VDC at 3 A |
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
8 W
|
Mounting
| Tripod/Accessory Mounting |
Bottom/Right
1x 1/4"-20 Female |
General
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Dimensions |
7 x 4.7 x 1.1" / 178.7 x 119.7 x 28 mm
|
| Weight |
12.9 oz / 367.00 g
|
Packaging Info
| Package Weight |
2.405 lb
|
| Box Dimensions (LxWxH) |
8.9 x 5.9 x 4.3"
|
